High-Speed Retail and Kitting Uses
High-Volume Bakery and Food Service
The rapid pop-up action makes this a classic choice for bakeries and premium fast food. Packers can erect the box with one hand, load the product, and close the lid without slowing down the line. Food-safe board and coatings should be selected based on the exact contents.
Apparel and Accessory Kitting
The clean interior and telescoping lid offer a premium unboxing experience for clothing, cosmetics, and gift sets. The one-piece design ensures the lid is never separated from the base during fulfillment.
Premium Retail Presentation
For retail shelves, the double-wall thickness created by the overlapping lid and base provides clean, rigid edges. It presents well as a standalone unit for boutique items.
Medical and Cosmetic Kits
When packing multiple small items into a single kit, the pop-up tray provides an immediate, wide-open loading area. The attached lid simplifies the final closure step.
Fulfillment and Production Contexts
Hand Assembly and Fulfillment Speed
This carton reduces manual labor. The pre-glued diagonal corner webs act as hinges, forcing the walls upright automatically. This removes the repetitive strain and time cost of folding and locking traditional tray walls.
Retail Presentation and Stacking
When closed, the double-wall thickness created by the overlapping lid and base provides clean, rigid edges. It stacks well on retail shelves, provided the vertical load does not crush the diagonal side creases.
Flat Storage and Pallet Density
Despite its complex 3D shape when erected, the carton ships completely flat. This maximizes pallet density and reduces the storage space needed at the packing facility.
When to Compare Other Box Styles
Parcel and Courier Shipping
The friction-fit lid is built for retail hand-offs or palletized transport. It may open during rough courier handling. If shipping directly to consumers via parcel networks, a Roll-End Tuck-Top (RETT) mailer or a secure outer shipping box may be a better choice.
Short Runs and Prototyping
Producing this box involves a multi-point folder-gluer setup. For shorter runs where the setup time of 6-corner gluing outweighs the labor savings on the packing line, an unglued self-locking tray may be a more practical choice.
Board, Closure, and Production Choices
Board Thickness and Step Creases

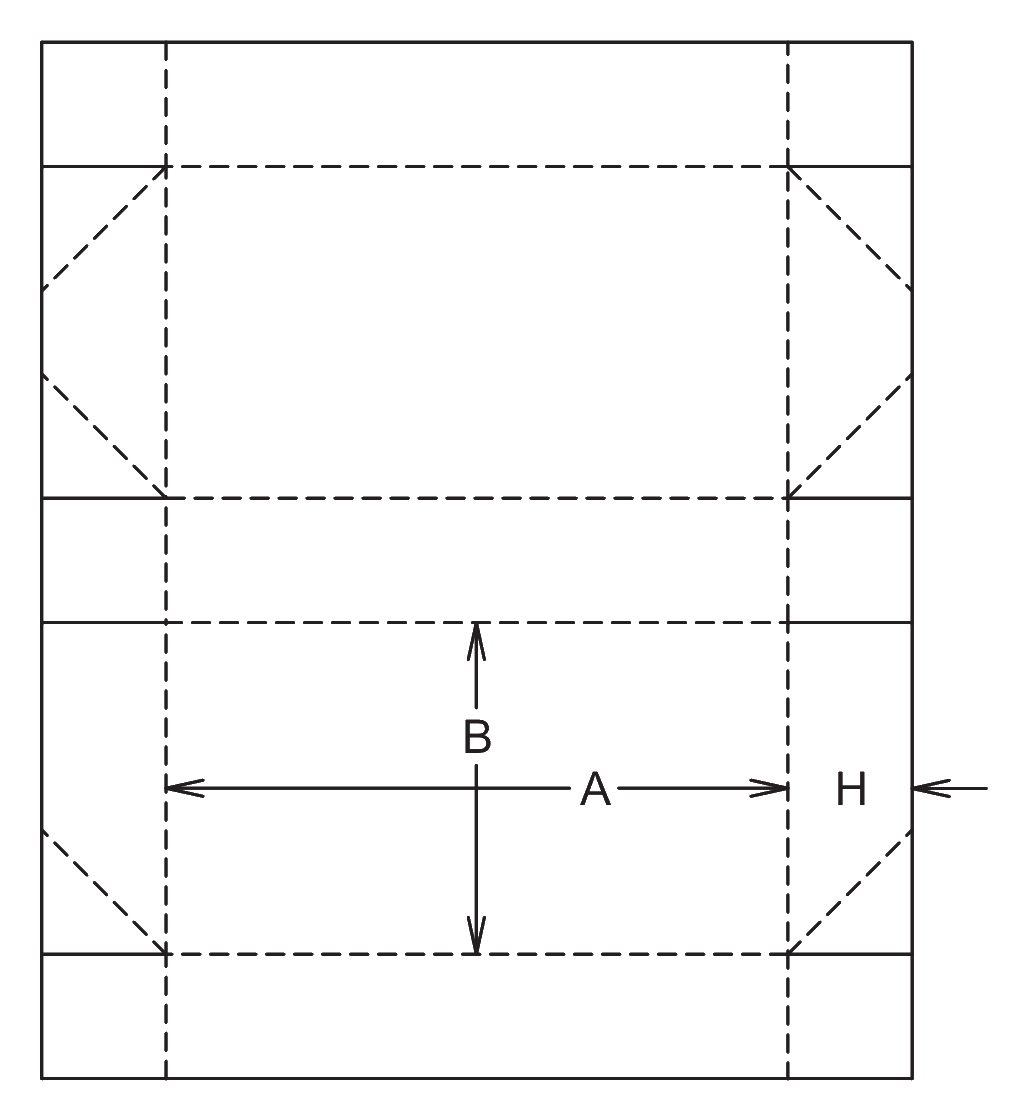

Because the lid folds over the base while the entire carton is flattened for shipping, the board thickness affects the fold. The template uses layer step creases to offset the fold lines. Changing the board grade without updating these offsets can cause the carton to bind or crack when folded flat.
Closure Friction and Transit Sealing
The standard lid relies on friction against the base walls. Depending on the product weight and handling route, you may need to add wafer seals, custom locking tabs, or shrink wrap to ensure the lid stays closed before final sale.
Grain Direction and Hinge Flexibility
The board grain should typically run parallel to the main back hinge to prevent cracking when the lid is opened and closed repeatedly. However, the diagonal corner creases will cross the grain, requiring careful scoring.
Print Surface and Coating
The large, flat lid panel offers an excellent billboard for branding. Consider how coatings or varnishes might affect the friction fit of the telescoping lid walls.
Structural Adjustments and Lid Options
Dust Flaps for Alignment
Dust flaps can be added to the lid to prevent debris from entering the corners and to help align the lid during closure. This slightly increases the blank footprint but improves the overall seal.
Display Windows and Film Patching
A display window can be cut into the lid panel for product visibility. If a clear film patch is required, it adds a separate window-patching machine pass before the folding and gluing stage.
Locking Tabs for Security
For added security, the friction-fit lid can be modified to include a tongue-and-slot lock or side locking tabs, reducing the reliance on friction alone.
Board and packing details
Score Quality on Diagonal Folds
The diagonal corner webs fold 180 degrees during production and cross the board's grain. High-quality scoring helps prevent the liner from cracking and ensures the box erects smoothly without excessive memory force.
