ECMA B10.02.00.00

Double-Wall Self-Locking Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Four double-thick walls for high rigidity
Unglued friction-lock assembly
Rolled edges hide raw board cuts

About this product

The Double-Wall Self-Locking Tray is a premium folding carton structure that forms a highly rigid base with clean, rolled top edges on all four sides. Because the outer walls roll 180 degrees inward to form the interior, the tray presents a continuous appearance without exposing raw board edges, making it an excellent choice for high-end retail presentation.

This design relies entirely on mechanical friction to stay together, using specialized expansion pieces that wedge into the bottom corners. While this allows the blanks to ship completely flat and avoids folder-gluer passes, it requires a multi-step manual folding sequence that must be factored into fulfillment planning.

Common uses

Cosmetics and fragrance bases
Confectionery presentation
Electronics unboxing
Rigid bases for telescopic boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will this tray be paired with a lid or sleeve?

How will these trays be packed?

What type of items will go inside?

Will the tray need a custom insert to hold your products?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Presentation And Rigid Bases

High-End Retail Presentation

The rolled edges and double-thick walls create a substantial, premium feel. Because the exterior face of the board rolls inward to become the interior wall, a single-sided print run can deliver full-color graphics on both the outside and inside of the tray.

Bases for Telescopic Boxes

When paired with a matching lid or a clear sleeve, this tray serves as a highly rigid base for two-piece packaging. The double walls provide excellent vertical crush resistance, protecting heavier items like cosmetics, electronics, or confectionery.

Confectionery and Artisan Food Trays

The clean interior walls and rigid structure make this tray suitable for holding delicate items. When produced with appropriate food-safe boards or paired with internal dividers, it provides a high-quality unboxing experience.

Kitting and Sample Presentation

For promotional kits or sample collections, the unglued flat delivery allows teams to store packaging efficiently and erect trays on demand. The sturdy walls hold multiple components securely during presentation.

Retail And Unboxing Environments

Manual Kitting and Fulfillment

This tray is delivered entirely flat, maximizing pallet density. It is designed for manual packing lines where operators have the time to pre-break the creases, roll the walls, and seat the corner locks. It is not suitable for high-speed automated cartoning equipment.

Boutique Retail and Unboxing

Brands prioritizing the unboxing experience benefit from the hidden raw edges and double-wall thickness, which convey quality and attention to detail before the product is even removed.

Limited-Run Promotional Packaging

Because it requires no folder-gluer setup, this tray is accessible for shorter production runs or prototype batches, provided the manual assembly time is acceptable for the project scope.

When To Consider Glued Alternatives

High-Volume Production Runs

If your order volume is high and manual assembly time is a bottleneck, a glued double-wall tray may be a better choice. Glued versions require a folder-gluer pass during manufacturing but drastically reduce the time it takes an operator to erect the tray on the packing line.

Fast-Paced Fulfillment Environments

For operations that need rapid tray erection without the full double-wall aesthetic, a preglued side panel tray offers a compromise. It ships flat but pops open much faster than a fully unglued friction-lock design.

Board Caliper And Assembly Labor

Board Thickness and Crease Offsets

The 180-degree folds require precise adjustments to the creasing layout based on the exact thickness of your chosen paperboard. If the board is too thick or the offsets are incorrect, the inner walls will bow, and the friction locks will fail to seat properly. Confirm your material choice early so the template can be adjusted.

Fulfillment Labor

Erecting this tray requires folding the long walls, tucking the corner tabs, rolling the short walls over the tabs, and wedging the expansion pieces into the base. Ensure your fulfillment center has reviewed the folding sequence and accounted for the labor time.

Print Layout Efficiency

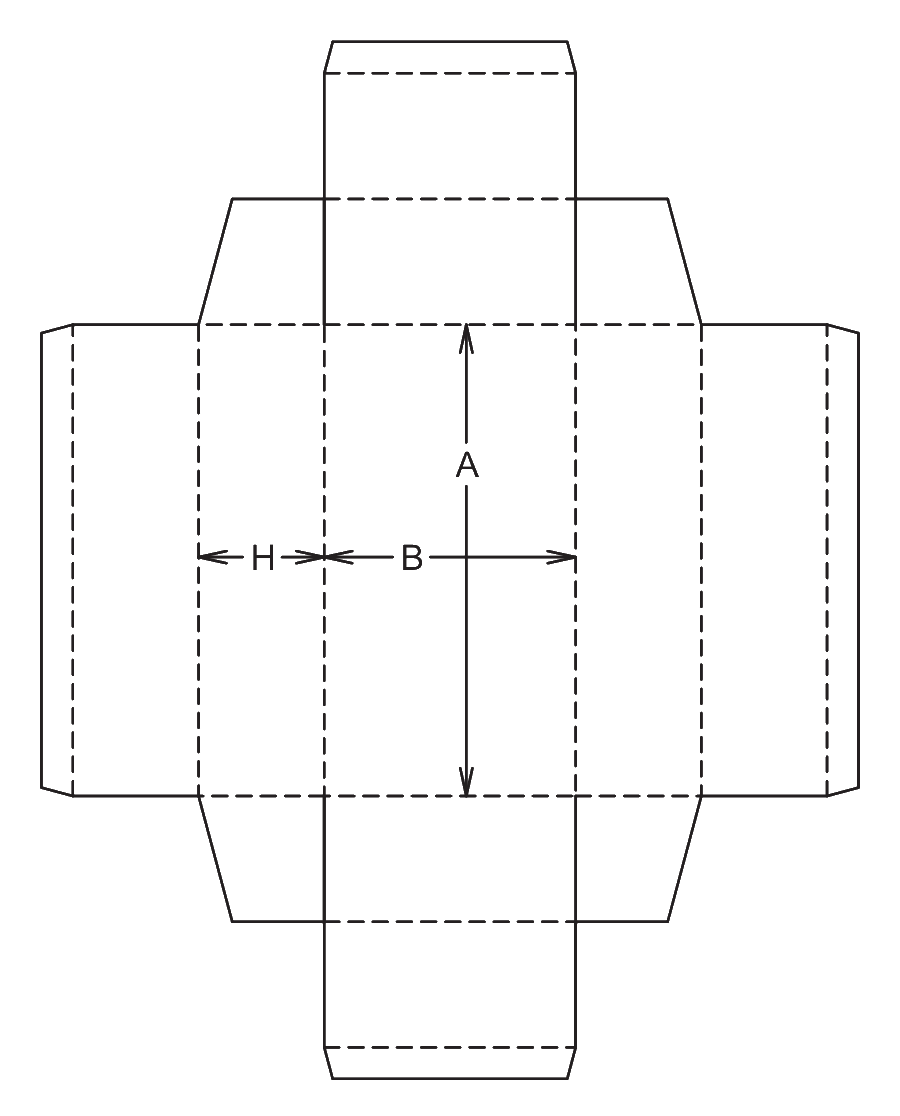

Because the blank features wide, extended flaps on all four sides to create the double walls, it forms a large cross shape. This can lead to lower nesting efficiency on the printing sheet compared to simpler tray styles, which may increase material usage.

Lid or Sleeve Clearance

If this tray will be used as a base for a two-piece box, the outer dimensions of the erected double walls must be calculated carefully. The lid must be sized to clear the rolled edges without binding or fitting too loosely.

Locking Friction And Wall Proportions

Locking Flap Geometry

The angle and depth of the expansion pieces that lock the tray can be adjusted. This allows the friction fit to be fine-tuned depending on the stiffness and surface finish of the selected paperboard.

Inner Wall Height

The height of the inner rollover panels can be modified. While they typically extend all the way to the base to provide maximum strength and a clean look, adjustments can be made to accommodate specific inserts or product shapes.

Layer Step Creases

The distance between the parallel creases that form the rolled top edge is driven by the board caliper. This step crease ensures the inner wall folds flat against the outer wall without tearing the hinge.

Board and packing details

Grain Direction

For the cleanest rolled edges, the paperboard grain should ideally run parallel to the longest 180-degree folds. This minimizes the risk of cracking along the prominent top edges of the tray.

Variant Designs

B10.02.00.00.a (Beveled Inner Flaps)

A variant that adjusts the geometry of the inner wall flaps, creating a more pronounced beveled or framed edge on the long walls.

Additional notes

Lid compatibility

This tray is frequently used as the base for a two-piece telescopic box. When sizing a lid, the outer dimensions of the erected double walls must be used to ensure proper clearance.

FAQs

Assembly and Labor

Can this tray be erected by automated machinery?

No. The complex sequence of 180-degree rollovers and tucked friction locks requires manual assembly. If you need automated setup, consider a different tray style.

Print and Finish

Do I need to print on both sides of the board to get a colored interior?

Usually, no. The outer walls roll over to form the inner walls, meaning the printed exterior face of the board becomes the visible interior of the tray walls. The base panel, however, will show the unprinted side unless a separate insert is used or the board is double-side printed.

Materials

Can this be made from corrugated board?

It is highly challenging. The multiple 180-degree folds and tight friction locks are designed for folding carton board (like FBB or SBS). Corrugated flutes will likely crush, crack, or cause the walls to bow excessively.

Shipping

Can I ship this tray through the mail as-is?

No. This is an open tray. It requires a secure lid, a tight-fitting sleeve, or an outer shipping box to protect the contents during transit.

Structure

Does this tray require glue or tape to stay together?

No. It is a self-locking design. The short walls wrap around corner tabs and wedge into the base, holding the entire structure together under tension.

Design

Why might the inner walls bow instead of sitting flat?

Bowing usually happens if the template was not adjusted for the specific thickness of the paperboard. The creases for the 180-degree folds must be offset to accommodate the caliper of the board.

Storage

How is this tray delivered?

The trays are delivered completely flat. Because there are no glued seams, they stack very densely on pallets, saving storage space before fulfillment.

Inserts

Can I use custom inserts with this tray?

Yes. The rigid double walls provide a strong perimeter for holding die-cut paperboard or foam inserts, keeping products securely positioned.
