ECMA B15.11.00.00

Unglued Webbed-Corner Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Continuous corners prevent crumb and powder leakage
  • Relies on a secondary wrap, sleeve, or inline gluing to hold shape
  • Ships completely flat for maximum pallet density

About this product

This simple, unglued folding carton tray features continuous webbed corners that fold inward, creating a solid barrier against crumbs and powders. Because it ships completely flat and skips pre-gluing, it maximizes pallet density and reduces inbound freight space.

The tray has no native locks or tabs. It relies on a flow-wrap, a tight-fitting sleeve, an outer carton, or automated inline gluing to maintain its erected shape.

Common uses

  • Bakery flow-wrap trays
  • Confectionery inner trays
  • Component organization in master cartons
  • Powder containment trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Inner Trays and Flow-Wrap Applications

Flow-wrapped bakery and confectionery

The continuous webbed corners prevent crumbs, seeds, or small candies from escaping the base. The tray provides a rigid floor for the product while it moves through the wrapping equipment.

Inner sorting trays for master cartons

Used to group components or separate items inside a larger shipping box. The tray is held in its erected shape by the walls of the outer carton.

Component grouping for retail sleeves

Acts as a sliding base for multi-part products. The tray is folded and immediately pushed into a tight-fitting paperboard sleeve that locks the walls upright.

Powder or granular product containment

Because the corners are continuous rather than cut, the tray resists dry sifting, making it useful for products that shed fine particles during transit.

Bakery, Confectionery, and Automated Packing

Automated packing lines

This template is highly compatible with automated tray formers. The flat blank is pushed through a forming cavity, folding the walls and corners in one motion before adhesive or a wrap is applied.

Manual packing with sleeves

For lower-volume or manual setups, operators can fold the tray by hand and immediately slide it into a tight-fitting carton sleeve to lock the walls in place.

High-volume flat-shipping programs

Because the tray requires no pre-gluing, it ships perfectly flat. This maximizes the number of blanks per pallet, reducing freight and storage space for high-volume operations.

When to Choose a Pre-Glued or Locking Tray

Standalone retail presentation

Because this tray will splay open without a wrap or sleeve, it cannot be used as a standalone open display bin. If you need an open tray that holds its own shape, compare it to a four-corner glued tray or a self-locking tray.

Heavy or dense products

The single-thickness walls and unglued corners offer minimal structural rigidity on their own. Heavy items may cause the walls to bow outward if the secondary wrap is not tight enough.

Assembly Method and Board Choices

Choosing the retention method

You must decide how the tray will stay folded. Common methods include a tight polymer flow-wrap, a paperboard sleeve, insertion into a rigid outer box, or adhesive applied by tray-forming equipment.

Board caliper and corner folding

The webbed corners fold 180 degrees, creating three layers of material at each corner. Thick corrugated board will bind and cause the walls to bulge. This tray requires thin, flexible folding carton board to fold flat and clean.

Barrier coatings for grease or moisture

While the continuous corners prevent dry sifting, the tray is only liquid- or grease-resistant if you specify a poly-coated or treated board.

Corner style preference

The top edge of the folded webbed corner can be rounded to prevent sharp points from protruding, or cut straight across depending on aesthetic preference and die-cutting needs.

Corner Radius and Board Thickness Adjustments

Corner fillet radius

The top edge of the folded webbed corner can be rounded to prevent sharp points from protruding above the tray walls, improving safety and aesthetics.

Layer step creases for thicker board

If a slightly thicker folding carton is required, the crease lines in the webbed corners can be offset to accommodate the extra material thickness, preventing the corners from tearing during assembly.

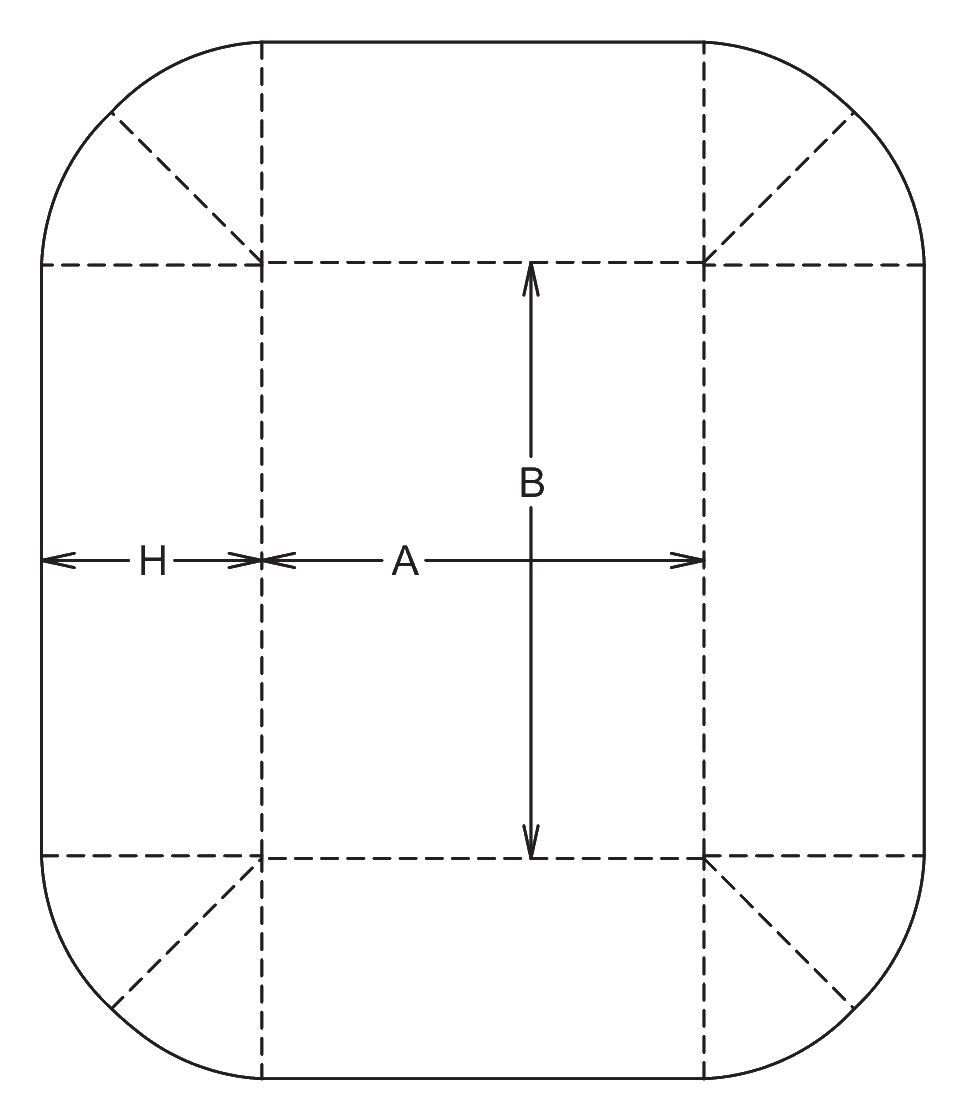

Base dimensions and wall height

The length, width, and depth of the tray can be scaled to fit the product, provided the proportions remain suitable for the chosen folding carton material.

Board and packing details

Flat shipping and storage efficiency

Because the tray is not folded or glued before delivery, it ships completely flat. This maximizes the number of blanks per pallet and reduces inbound freight space compared to pre-glued trays.

Corner Style Variants

Straight-cut webbed corners (B15.11.00.00.a)

A variant that uses a straight diagonal cut across the extreme tip of the webbed corner instead of a rounded radius, which can change the interior look.

Additional notes

Manual packing workflow

If packing by hand, the operator must hold the walls upright while filling the tray and applying the wrap or sleeve. This can slow down manual operations compared to using a self-locking tray.

Related Tray and Carton Options

FAQs

Assembly and Closure

Does this tray hold its shape on its own?

No. It has no locking tabs or pre-glued seams. It relies on a flow-wrap, a sleeve, an outer carton, or adhesive applied during automated packing to hold its shape.

Product Fit

Will this tray leak powders or crumbs?

The webbed corners are continuous, meaning there are no gaps or cutouts at the base corners. This makes it highly resistant to dry sifting, provided the board itself is suitable for the product.

Can it hold liquids or greasy foods?

While the corners have no physical gaps, the tray is only liquid- or grease-resistant if you specify a poly-coated or treated board.

Materials

Can this be made from corrugated board?

It is generally unsuitable for corrugated board. The webbed corners must fold back on themselves, creating three layers of material. Thick board will bind, tear, or cause the walls to bow outward.

Production

Why choose an unglued tray over a pre-glued one?

Unglued trays skip the pre-gluing process, which allows the blanks to ship perfectly flat and maximizes pallet density. However, this shifts the assembly burden to your packing line.

Assembly and Closure

Can this be erected by machine?

Yes. It is frequently used with automated tray-forming equipment that pushes the blank through a cavity and applies adhesive to the corners in a single motion.

Shipping and Storage

How does the tray ship?

It ships completely flat. Because there are no pre-glued seams, the blanks stack densely on a pallet, reducing freight and storage space.

Materials

What happens if the board is too thick?

If the board is too thick, the three layers of material at the webbed corners will resist folding. This causes the corners to bind and the side walls to bow outward, preventing a clean 90-degree fold.
