ECMA C20.20.55.20

Tapered Snap-Lock Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Distinctive tapered shape for retail display
Snap-lock (1-2-3) bottom for secure, tape-free assembly
Delivered flat and assembled by hand

About this product

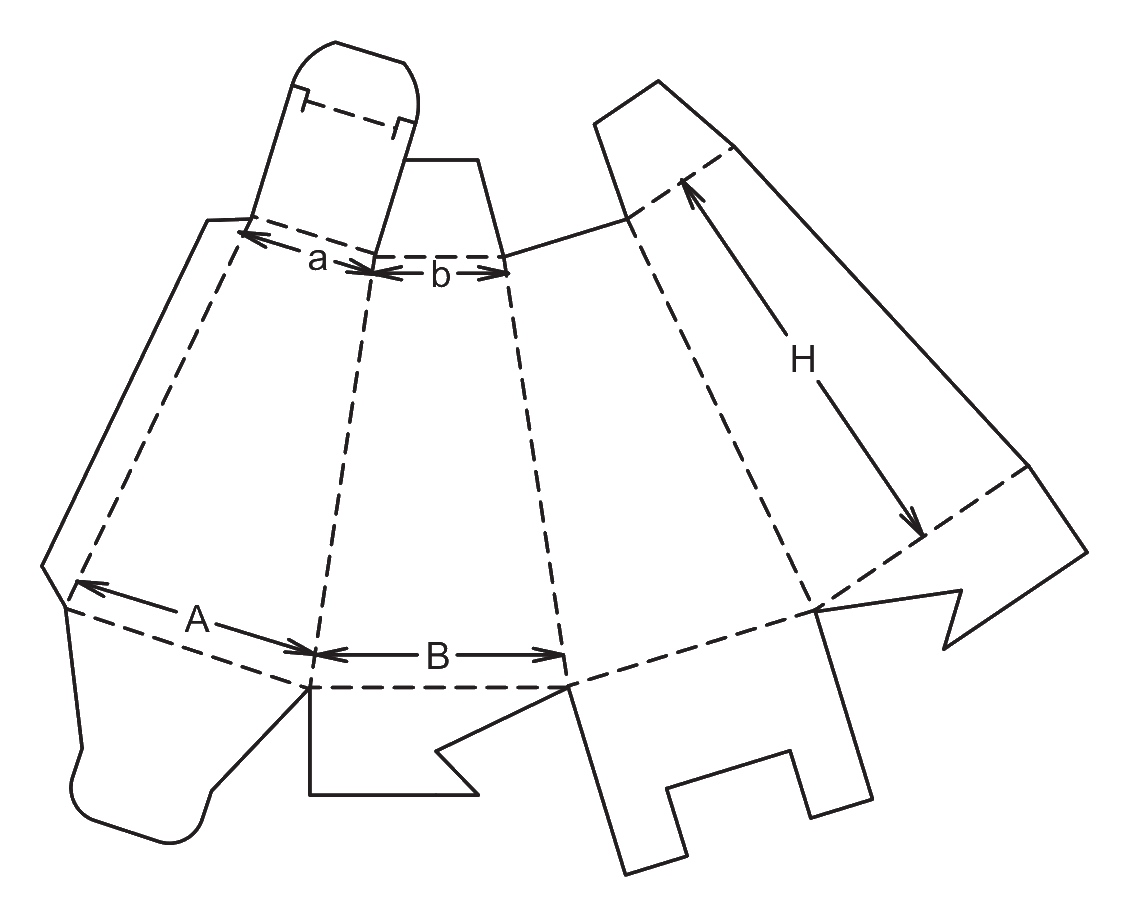

The C20.20.55.20 is a tapered folding carton featuring a secure snap-lock base and a tuck-in top. Often called a truncated pyramid box, its angled walls create a distinctive silhouette that stands out on retail shelves, making it a popular choice for cosmetics, confectionery, and premium gifts.

Delivered flat with a pre-glued side seam, this carton is designed for hand packing. The 1-2-3 interlocking bottom provides a strong, tape-free base for lightweight to medium goods, while the top tuck flap includes slit locks to keep the lid securely closed during display.

Common uses

Cosmetics and health products
Confectionery and specialty foods
Premium gifts and lightweight retail goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Base length

Base width

Overall height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the item going into this box?

Will you use an insert to hold the product in place?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display And Presentation Packaging

Premium Retail And Cosmetics

The tapered walls provide a unique visual presentation that differentiates products on crowded shelves. The snap-lock base easily supports the weight of standard cosmetic jars, bottles, or skincare sets without tape.

Gift And Confectionery Packaging

The pyramid-like shape naturally lends itself to gift applications. The top tuck flap allows consumers to easily open and reclose the box, while internal slit locks prevent the lid from popping open accidentally.

Specialty Food And Beverage

Artisan chocolates, loose-leaf tea, and specialty coffee bags often use this shape to signal premium quality. The wide base provides stability on the shelf, while the tapered top draws the eye.

Boutique Health And Wellness

For supplements or wellness kits, the distinctive silhouette elevates the perceived value of the product. The secure base holds multiple lightweight items reliably during retail handling.

Product Fit And Packing Environment

Hand Assembly And Packing

This carton is designed for hand assembly. The operator opens the flat sleeve, folds the four bottom flaps in sequence to lock the base, loads the product, and tucks the top lid. It is an excellent fit for moderate-volume packing where automated erecting machinery is not used.

Outer Transit Packaging

Because of the friction-fit top and interlocking bottom, this carton is not designed to travel through parcel networks on its own. It is usually placed inside a corrugated outer shipper to protect the angled walls and prevent the closures from catching during transit.

Retail Shelf Presentation

The tapered geometry changes how light hits the package, offering a different visual profile than standard rectangular boxes. This makes it highly effective for end-cap displays or premium shelf positioning.

When To Consider Auto-Bottom Or Straight-Walled Cartons

High-Volume Packing Lines

If your fulfillment team packs thousands of units quickly, the manual 4-step snap-lock bottom can slow down the process. Consider an auto-bottom (crash-lock) tapered carton, which forms into shape quickly.

Heavy Or Stacked Goods

Tapered walls inherently carry less vertical compression strength than straight vertical walls. If your product is heavy or the cartons will be stacked high in a warehouse without supportive outer cases, a standard straight-walled snap-lock carton may be a safer choice.

Board Choice, Taper, And Print Decisions

Board Choice For Angled Folds

The angled creases of a tapered carton require precise scoring and a high-quality board, such as Solid Bleached Sulfate (SBS) or Folding Boxboard (FBB). Lower-grade materials or very thick micro-flutes can crack along the angled folds or cause the snap-lock tabs to bind.

Taper Ratio And Production Setup

The difference between the wide base and the narrow top defines the carton's taper. Extreme tapers can cause the flat blank to skew during the folding and gluing process. Keeping the taper moderate ensures clean side seams and reliable opening behavior.

Closure Security And Product Weight

The 1-2-3 bottom relies on friction and interlocking tabs. Discuss your exact product weight to ensure the base lock is strong enough to prevent the product from dropping out when the carton is lifted.

Print Registration Across Tapered Panels

Because the main panels are tapered, graphics that wrap around the corners require careful alignment. Discuss print registration tolerances early if your artwork features continuous horizontal bands or patterns.

Modifying The Base And Lid Clearances

Slit Lock Depth And Offset

The top tuck flap relies on small slit locks that catch against the internal dust flaps. The depth and offset of these slits can be adjusted based on the board thickness to ensure the lid stays closed on the shelf without tearing when opened.

Snap-Lock Tongue And Slot Clearances

The interlocking bottom flaps must be calibrated to the exact thickness of your chosen material. If the board changes, the tongue and slot dimensions must be updated so the base locks firmly without requiring excessive force.

Tuck Flap Length

The length of the top tuck flap can be extended for heavier boards or reduced for lighter boards to balance opening ease with closure security.

Board and packing details

Prototyping Tapered Shapes

Always request a physical sample of a tapered carton before full production. Testing the exact board grade with your product ensures the snap-lock base holds securely and the angled walls do not bow outward.

Package Variants

C20.20.55.20.a (Slit Lock Top)

The standard implementation includes slit locks on the top tuck flap for added friction retention, preventing the lid from bowing outward.

Additional notes

Snap-lock versus auto-bottom fulfillment

A snap-lock base is highly secure but takes a few seconds longer to fold by hand. If your labor costs are high or volumes are large, an auto-bottom variant may offset its higher manufacturing complexity through faster packing speeds.

FAQs

Assembly and Packing

Is this carton suitable for automated packing lines?

No. The tapered shape and the 1-2-3 snap-lock bottom are designed for hand assembly. The operator folds the four bottom flaps in sequence before loading the product.

Strength and Handling

Can tapered cartons be stacked on a retail display?

They can be stacked lightly, but the angled walls reduce vertical crush resistance compared to straight-walled boxes. Heavy top loads can cause the side panels to bow outward.

Shipping and Route

Does this box need tape to stay closed?

For retail display, the snap-lock bottom and tuck top hold securely without tape. However, if shipping directly to a consumer, the carton is usually placed inside a corrugated outer shipper to prevent the flaps from opening in transit.

Material and Finish

Can this be made from corrugated board?

It is generally not recommended. The complex interlocking bottom flaps and angled creases are better suited for thinner folding carton boards like SBS or FBB. Corrugated flutes make the snap-lock difficult to assemble and prone to binding.

Print and Graphics

How does the taper affect artwork design?

Graphics that wrap around the corners of a tapered box require distortion in the 2D layout to appear straight in 3D. Continuous horizontal bands are especially sensitive to print registration across angled folds.

Product Fit

Will the snap-lock bottom hold heavy glass jars?

The snap-lock base is strong enough for standard cosmetic jars and medium-weight items, but its capacity depends on the board thickness and lock clearances. Always test a physical sample with your exact product weight.

Comparison

Why choose a snap-lock over an auto-bottom for a tapered box?

A snap-lock base avoids the complex gluing process required for an auto-bottom, making it easier to produce for smaller runs. However, it takes a few seconds longer to assemble by hand.

Inserts

Can I use custom inserts inside a tapered carton?

Yes, but the insert must be designed to match the internal taper of the walls. A straight-sided insert will not sit flush against the angled panels, which can affect product presentation.
