ECMA C20.20.20.20

Tapered Tuck-End Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Distinctive truncated pyramid shape for retail display
Friction-fit tuck closures on both top and bottom
Usually assembled and loaded by hand

About this product

The tapered tuck-end carton forms a truncated pyramid, offering a distinctive geometric profile for premium retail presentation. Built with trapezoidal main panels, the carton tapers from a wider base to a narrower top, or vice versa, creating a shelf presence that stands apart from standard rectangular packaging.

Because the angled walls cause the flat blank to arc, this shape trades material efficiency for visual impact. It is delivered flat and relies on manual assembly, making it a deliberate choice for cosmetics, specialty confectionery, and boutique gifts where presentation justifies the specialized handling.

Common uses

Premium cosmetics
Specialty confectionery
Gift packaging
Boutique retail displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Base width

Base depth

Top width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How should the carton sit on the shelf?

How will the product be secured inside the tapered box?

What type of product is going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Specialty Goods

Premium Cosmetics and Fragrances

The angled walls provide a unique canvas for high-end graphics and foil stamping. The shape naturally draws attention on crowded shelves, making it a strong fit for lightweight, high-margin items.

Specialty Confectionery and Gifts

Often used for chocolates or boutique food items, the pyramid profile elevates the perceived value of the contents. The top tuck flap allows for easy opening and reclosing by the consumer.

Boutique Retail Displays

The tapered profile creates natural spacing on shelves, allowing individual products to stand out rather than blending into a solid wall of rectangular boxes.

Promotional and Limited-Edition Runs

The distinctive shape signals a special release, making it useful for holiday packaging or promotional kits where visual differentiation is the primary goal.

Fulfillment and Display Environments

Manual Packing Stations

The tapered geometry means these cartons are usually erected and loaded by hand. The angled walls generally reject the squaring and plowing mechanisms used in high-speed automated cartoning lines.

Retail Shelf Layouts

While visually striking, tapered cartons cannot be packed tightly side-by-side without alternating their orientation. This affects both retail shelf density and the arrangement inside master shipping cases.

High-End Unboxing Experiences

The friction-fit top tuck flap allows consumers to open and reclose the carton cleanly, preserving the presentation value for items that are stored in their original packaging.

Evaluating Rectangular and Fast-Setup Alternatives

High-volume automated packing

If your fulfillment relies on automated cartoning equipment, review this against a standard straight-tuck carton. Rectangular walls allow for machine erection, loading, and closing.

Heavy vertical stacking

Tapered walls deflect vertical weight outward rather than transferring it straight down. For heavier items or tall pallet loads, a rectangular carton provides better structural support.

Board Selection and Material Yield

Material yield and blank nesting

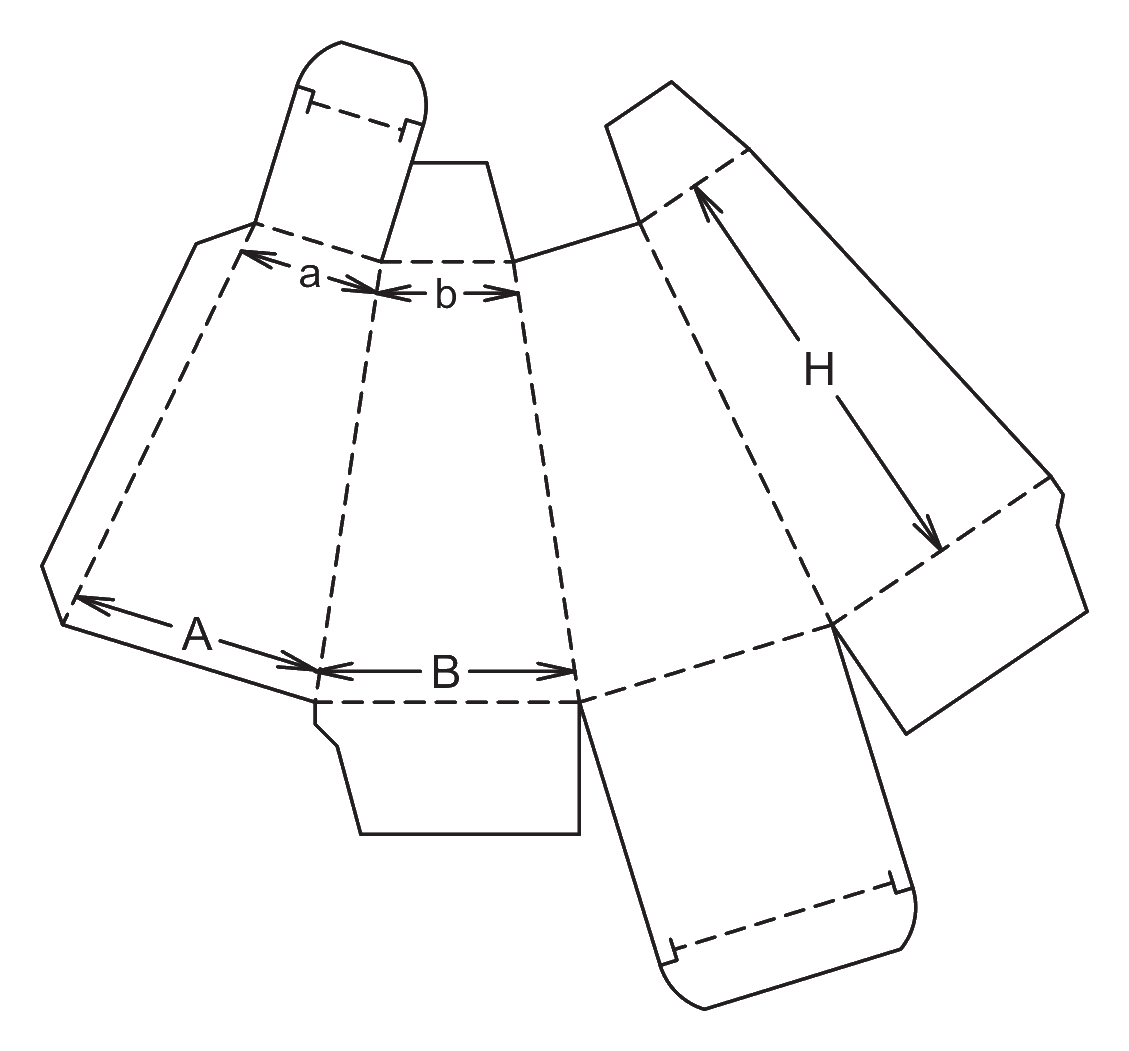

Because the trapezoidal panels create an arced flat blank, this carton leaves more negative space on the sheet during die-cutting. This lower nesting efficiency changes the material footprint compared to a rectangular box of similar volume.

Board grade and grain direction

The vertical creases radiate outward rather than running parallel. This means the board's grain direction cannot align perfectly with every fold, increasing the risk of cracking. Selecting a high-quality folding box board (FBB) or solid bleached sulphate (SBS) helps maintain clean, sharp edges.

Taper orientation

The carton can be designed to taper upward with a narrow top, or downward with a narrow base. This choice affects product fit, center of gravity, and how the carton rests on a retail shelf.

Insert requirements

Because the internal volume narrows at one end, smaller or irregularly shaped items may need custom inserts to stay centered and prevent shifting during transit.

Taper Angles and Closure Modifications

Taper severity

The ratio between the top and bottom dimensions determines the angle of the walls. Steep tapers create a sharper visual effect but cause the flat blank to arc more sharply, which can limit the number of cartons that fit on a standard press sheet.

Locking slit depth

The friction locks on the tuck flaps can be adjusted based on the board thickness and the required opening resistance, ensuring the carton stays closed during handling without tearing when the consumer opens it.

Dust flap bevels

The angles on the dust flaps can be modified to prevent them from binding against the tapered side walls during assembly, ensuring a smooth closure.

Board and packing details

Outer shipping requirements

The friction-fit tuck flaps are designed for retail presentation, not parcel transit. E-commerce shipments often rely on a secure outer shipper and appropriate void fill to protect the tapered shape and prevent the flaps from opening.

Additional notes

Print panel and scuff risk

The angled main panels mean the carton rests on its edges rather than flat faces when laid down. Consider scuff-resistant coatings if the cartons will be handled frequently before reaching the shelf.

Retail shelf loading

Because the base is wider than the top, these cartons leave triangular gaps when lined up facing forward. Retailers often alternate them front-to-back to maximize shelf density.

FAQs

Quantity and Production

Why does a tapered carton have a different material footprint than a rectangular one?

The angled walls require the flat cardboard blank to curve in an arc. This shape prevents the blanks from nesting tightly together on the printing sheet, resulting in more material waste per carton.

Packing Labor

Can this carton be erected on automated packaging lines?

Usually not. The tapered walls prevent standard cartoning machines from squaring the box and plowing the flaps. This style is designed for manual packing stations.

Board and Finish

What board types work well for this shape?

Premium grades like Solid Bleached Sulphate (SBS) or Folding Box Board (FBB) are often chosen. Because the fold lines radiate outward at angles, the board must resist cracking across the grain.

Shipping Route

Is this carton secure enough for direct parcel shipping?

The tuck-in flaps rely on friction and can open during rough transit. For e-commerce delivery, this carton should be placed inside a corrugated outer shipper.

Product Fit

How does the tapered shape affect internal volume?

The internal space narrows toward the top or bottom, depending on orientation. Products must be sized to clear the narrowest point, and inserts may be needed to keep smaller items centered.

Related Package Choice

How can I speed up assembly without losing the tapered look?

Switching the bottom closure to a crash-lock base allows the bottom to snap into place automatically when the carton is opened, saving time during hand fulfillment.

Stacking and Storage

Does the taper angle affect stacking strength?

Yes. Tapered walls deflect vertical weight outward rather than transferring it straight down to the base. This limits how high the cartons can be stacked on a pallet without crushing.

Retail Setup

How are these cartons packed into master shippers?

Because the base is wider than the top, they leave triangular gaps if packed facing the same way. They are often alternated front-to-back to maximize density inside the master carton.
