ECMA E22.20.00.00

Double-Row Bottle Wrap-Around Sleeve

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Usually assembled on automated wrap-around cartoning machinery
  • Grips bottle necks and bases to help prevent lateral shifting
  • Delivered flat and glued around the product on the line

About this product

The E22.20.00.00 is a machine-erected wrap-around sleeve that groups and secures a double row of bottles, typically in a 3x2 configuration. It features specialized top cutouts that grip the bottle necks or caps, while the bottom panels wrap underneath to seat the bases, creating a tight, unitized retail multipack.

Because it relies on the product for its internal structure and is formed under tension, this carton is delivered as a flat blank and is usually assembled on automated wrap-around cartoning equipment on the filling line. It is generally impractical for manual assembly.

Common uses

  • High-volume beer and cider 6-packs
  • RTD beverage multipacks
  • Liquid condiments or sauces in rigid bottles

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Beverage, condiment, and dairy multipacks

Retail beverage multipacks

This sleeve is widely used for beer, cider, ready-to-drink cocktails, and soft drinks packaged in glass or rigid plastic bottles. The closed side panels provide a continuous billboard for branding, while the top and bottom cutouts keep the bottles grouped for retail presentation.

Liquid condiments and sauces

For high-volume food manufacturers, this format unitizes double rows of bottled sauces or oils. The tight wrap prevents the bottles from rattling or rotating, helping primary labels remain facing outward if desired.

Dairy and nutritional drinks

Protein shakes, yogurt drinks, and other nutritional beverages in rigid plastic bottles often use this sleeve for multi-pack retail sales, relying on the neck cutouts to secure the heavier liquid weight.

Household cleaners and auto fluids

Small bottled additives or specialty cleaners sold in multi-packs can use this wrap-around format to maintain a rigid group on the shelf without a fully enclosed box.

Automated filling lines and cold-chain distribution

Automated filling operations

This package is typically run on automated packaging lines. The flat blanks are fed into a wrap-around cartoner, which uses the collated bottles as a forming mandrel. The machine folds the board against the bottle shoulders and heels before applying adhesive to the final seam.

Refrigerated and wet environments

Beverage multipacks often move through cold chains where condensation occurs. When specified with moisture-resistant carrier board, the sleeve maintains its tear resistance, helping ensure the neck-gripping flaps hold when a consumer lifts the pack.

Retail display and branding

The closed side panels offer a large, uninterrupted surface for retail graphics compared to open-sided basket carriers. This allows for branding space while still leaving the ends open to display the primary bottles.

When to consider single-row sleeves or manual-pack carriers

Manual packing and short runs

If you are packing bottles by hand or running short promotional volumes, a wrap-around sleeve is difficult to tension and seal. A pre-glued crash-lock basket carrier or a drop-in sleeve may be a more practical choice, as they can be erected manually without specialized cartoning equipment.

Single-row configurations

If the product matrix is a single line of bottles, such as a 1x3 or 1x4 pack, the E12.20.00.00 is proportioned for that layout while using the same neck-gripping and wrap-around logic.

Exposed bottle necks

If the sleeve should lock under the bottle crowns and leave the caps fully exposed for branding or easy access, the E23.21.00.00 is a closer match.

Board tear strength, moisture resistance, and machine calibration

Primary container geometry

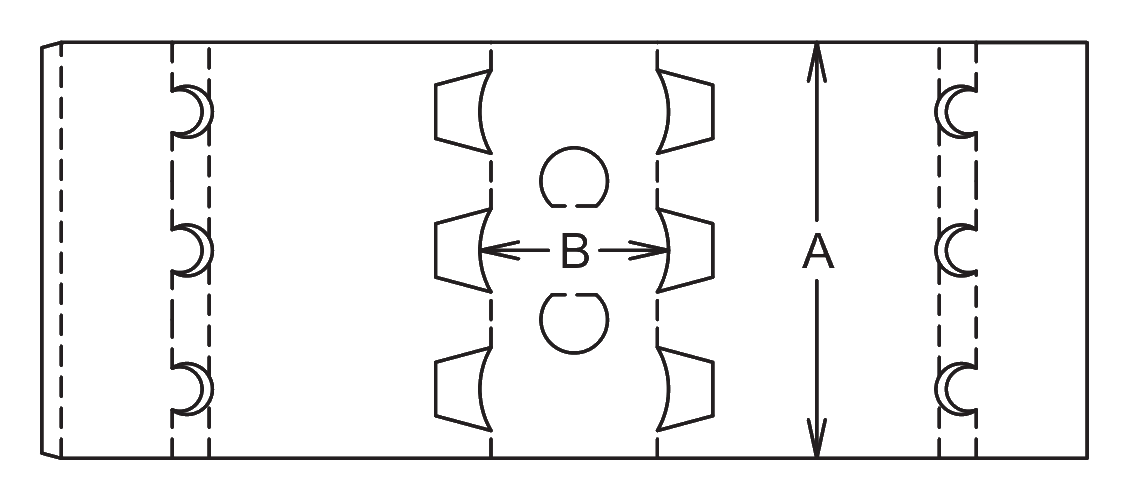

The CAD parameters for this sleeve rely on the physical bottle. The top cutouts align with the cap or neck diameter, and the chamfered panels mirror the angle of the bottle's shoulder and heel to achieve proper wrap tension.

Board grade and tear strength

Because the carton is often lifted by the top panel, the board should have sufficient tensile strength to support the full weight of the bottles without the neck cutouts tearing. Specialized carrier boards are frequently discussed for their high tear resistance.

Adhesive and glue flap placement

The sleeve is secured by a glue flap during the final machine fold. The packaging line's adhesive system dictates the open time and compression. The glue flap area should remain free of ink and varnish to help ensure a secure bond.

Moisture resistance

If the product will face condensation during distribution or retail refrigeration, standard folding boxboard may weaken. Carrier board or specific moisture-resistant treatments are often evaluated to maintain structural integrity.

Adjusting neck cutouts, chamfer angles, and glue flaps

Neck and base cutout sizing

The diameter of the top cutouts and their internal crescent flaps can be adjusted to grip either the bottle cap or the neck ring. The base cutouts are similarly sized to capture the heel of the bottle, helping prevent lateral movement.

Chamfer angles for wrap tension

The angled panels connecting the top and sides, as well as the bottom and sides, can be modified to match the specific taper of the primary container. Aligning these angles helps prevent a loose wrap.

Glue flap width

The glue flap can be widened or adjusted to match the specific adhesive application nozzles on the cartoning equipment, ensuring enough surface area for a secure seam.

Board and packing details

Grain direction and machine folding

To help the board fold cleanly around the multiple 90-degree and chamfered angles without cracking, the grain direction usually runs horizontally across the blank, perpendicular to the main vertical creases.

Outer transit packaging

While this sleeve unitizes the bottles for retail, it offers minimal impact protection. The primary glass or plastic containers bear the stacking load. An outer corrugated shipper is typically used for palletized transit or parcel delivery.

Variants for tapered bottles

E22.20.00.00.a (Tapered Bottle Variant)

This variant calculates the top and bottom dimensions independently, making it a practical starting point for bottles that have a distinctly different diameter at the shoulder compared to the base.

Additional notes

Print panel and scuff risk

The closed side panels offer excellent branding space, but they will rub against outer transit packaging or adjacent sleeves on a pallet. A protective varnish or coating is often discussed to help prevent ink scuffing during distribution.

Related bottle sleeves and carriers

E23.21.00.00: Exposed-Neck Bottle Wrap-Around

Worth comparing if the sleeve should lock under the bottle crowns, leaving the caps fully exposed.

FAQs

Packing and Assembly

Can this sleeve be assembled by hand?

This format is typically run on automated wrap-around cartoners. Hand assembly is generally impractical because the blank is folded tightly around the collated bottles and sealed under tension.

Product Fit

How does the sleeve grip the bottles?

The top panel features circular cutouts with small crescent flaps that yield and lock against the bottle caps or necks. The bottom panel has corresponding cutouts that seat against the bottle heels, keeping the group secure.

Can this template accommodate tapered bottles?

Tapered shapes are often better served by the E22.20.00.00.a variant, which allows the top and bottom wrap dimensions to be calculated independently for a closer fit.

Materials and Route

What board grade is used for refrigerated beverages?

Beverages moving through cold chains typically use carrier board treated for moisture resistance. Standard folding boxboard can absorb condensation, which weakens the neck cutouts and increases the risk of tearing when lifted.

Does this sleeve protect glass bottles during shipping?

The sleeve unitizes the bottles and prevents them from clinking together, but it offers minimal impact protection. The bottles themselves bear the vertical stacking weight, and an outer corrugated box or tray is usually used for transit.

Specification

What product details help calibrate the sleeve fit?

A physical sample or precise 3D model of the bottle helps calibrate the cutouts and chamfer angles. Confirming the total weight of the filled bottles and the specifications of the wrap-around cartoning equipment is also useful.

Packing and Assembly

How is the sleeve sealed?

It is typically sealed with adhesive applied to the glue flap during the final machine fold. The glue area should remain free of ink and varnish to help ensure a secure bond.

Product Fit

Can the cutouts be adjusted for different cap sizes?

Yes, the top cutouts and internal flaps can be resized to grip either the specific cap diameter or the neck ring below it, depending on the bottle design.
