ECMA E12.20.00.00

Wrap-Around Can Multipack Sleeve

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Intended for automated wrap-around cartoning equipment
  • Grips product rims to secure open ends
  • Integrated push-in carrying handle

About this product

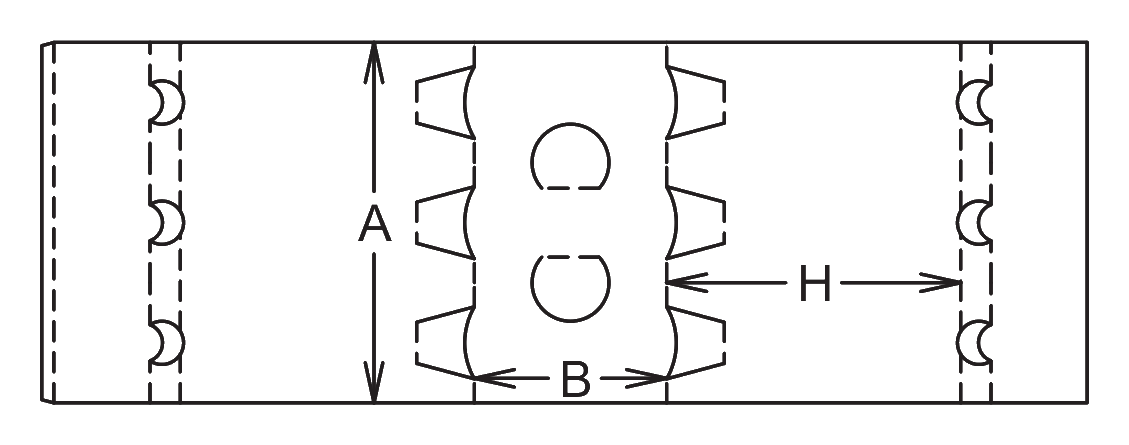

This wrap-around multipack sleeve bundles a double row of cylindrical products, such as beverage or food cans, into a single retail unit. It features closed side panels that provide continuous space for branding, while scalloped top and bottom cutouts lock into the product chimes to help prevent slipping.

Supplied as a flat, unglued blank, this format is intended for automated wrap-around equipment. The filling line folds the contoured bevels over the can rims, applies the glue seam under tension, and creates a tight pack where the cans themselves bear the vertical stacking load.

Common uses

  • Beverage 6-packs
  • Canned food multipacks
  • Pet food can bundles
  • Energy drink multi-buys

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Multipacks for Cans and Cylinders

Beverage and Brewery Multipacks

Used for bundling standard or sleek cans into 4-packs, 6-packs, or 8-packs. The closed side panels offer excellent retail visibility, while the integrated handle allows easy consumer carrying.

Canned Grocery and Pet Food

Used to group canned goods for club stores or promotional multi-buys. The tight wrap keeps heavy cans secure without needing a fully enclosed box.

Energy Drink and Specialty Beverage Bundles

Useful for grouping slim or specialty cans for retail promotions. The continuous side panels provide ample space for high-impact graphics.

Aerosol and Industrial Cylinder Grouping

Can be adapted for non-food cylindrical products that require unitizing for retail shelves, provided the products have pronounced top and bottom rims for the cutouts to grip.

High-Volume Beverage and Grocery Operations

Automated Filling Lines

This sleeve is intended for high-speed operations. It is supplied flat and unglued, relying on wrap-around equipment to plow the panels around the grouped cans, engage the cutouts, and seal the glue flap under tension.

Retail Display and Pallet Distribution

Because the cans bear the vertical compression load, these sleeves stack efficiently on pallets. The continuous side panels ensure the brand is visible from the aisle.

Refrigerated and High-Moisture Environments

When used for cold beverages, condensation can affect board strength. Selecting a moisture-resistant finish or board helps the carrying handle and retention cutouts maintain their integrity.

When to Consider Alternative Multipacks

Manual packing operations

Wrap-around sleeves are generally impractical to form tightly by hand. If packing manually, a pre-glued auto-bottom carton or a standard glued sleeve is usually a better fit.

E-commerce and parcel shipping

The open ends and exposed products make this sleeve unsuitable as a primary parcel shipper. An outer corrugated box is usually needed for mixed-carrier transit.

Bottles with pronounced necks

This format is geometrically tuned for cans and flat-topped cylinders. When packing bottles, review formats designed specifically to grip bottle necks.

Key Decisions for Wrap-Around Sleeves

Can Profile and Chime Geometry

The scalloped cutouts should closely match the top and bottom rims of the specific can. Standard cans, sleek cans, and necked-in cans all require different cutout depths to help prevent the product from slipping out.

Board Grade and Tear Strength

Because the consumer carries the entire weight of the pack using the push-in finger holes, the board should have sufficient tensile and tear strength. A tear-resistant board grade is often evaluated.

Moisture Resistance

If the multipack will hold refrigerated beverages, condensation can weaken standard paperboard. Discuss moisture-resistant options to help the handle perform when damp.

Adhesive and Equipment Compatibility

The glue flap width and orientation should align with the adhesive setup on the cartoning equipment. Open times and wrap tension are usually verified during testing.

Tuning the Sleeve to the Product

Independent Top and Bottom Cutouts

For cans that taper at the top (necked-in cans), the top cutouts can be sized independently from the bottom cutouts to help ensure a tight grip on both ends.

Glue Flap Width

The glue flap can be adjusted to match the specific nozzle configuration and open-time requirements of the cartoning equipment.

Handle Reinforcement

Depending on the product weight and board choice, the push-in finger holes can be adjusted in size or reinforced to help prevent tear-out during consumer handling.

Board and packing details

Machine Envelope and Tolerances

Before committing to a high-volume run, unprinted die-cut samples are often tested on the specific wrap-around equipment to verify feeding reliability, plow folding angles, and wrap tension.

Profile Variants

E12.20.00.00.a (Necked-In Can Variant)

Introduces independent parameters for the top and bottom cutout diameters, allowing the sleeve to tightly grip cans with tapered tops or specialized bottom profiles.

Additional notes

Cutout depth and wrap tension

If the cutouts are too shallow, the cans may fall out. If they are too deep, the board may tear during the automated wrapping process. Physical testing with the actual product is usually required.

Related Multipack Formats

E12.21.00.00: Open-Sided Wrap-Around Sleeve

Review this option when side-panel branding is less important and material efficiency is the priority.

FAQs

Production and Packing

Can this sleeve be assembled by hand?

Wrap-around sleeves are supplied flat and unglued. They are intended for automated equipment that tightly wraps the board around the cans and applies the glue seam under tension. Hand packing is usually too slow and inconsistent to achieve the necessary tight wrap.

Product Fit

Will this hold any cylindrical product?

The product should have a pronounced top and bottom rim (chime) for the scalloped cutouts to grip. Smooth cylinders without rims may slip out the open ends.

Material and Strength

What prevents the carrying handle from tearing?

Handle integrity relies on selecting a board grade with sufficient tear resistance and ensuring the grain direction runs perpendicular to the handle cutouts.

Shipping and Route

Does this carton provide stacking strength?

In a wrap-around multipack, the enclosed cans bear the vertical stacking load. The carton simply keeps the products grouped and provides branding.

Is this sleeve suitable for e-commerce shipping?

The open ends and exposed products mean this sleeve usually needs an outer corrugated box to withstand mixed-carrier transit.

Product Fit

How does the sleeve grip the cans?

The top and bottom edges feature scalloped cutouts that fold over and lock into the rims of the cans, helping to prevent them from sliding out laterally.

Production and Packing

How is the sleeve sealed?

It is secured by a single longitudinal glue seam applied by the filling equipment as the blank is wrapped around the grouped products.

Material and Strength

Can this be used for refrigerated products?

Moisture-resistant board or coating can be selected to help prevent condensation from weakening the carrying handle and retention cutouts.
