Retail Multipacks And High-Visibility Grouping
High-volume retail multipacks
This sleeve is built for retail environments where grouping products drives volume, but hiding the primary container would hurt sales. The open pillars allow consumers to see the primary labels, while the top and bottom panels provide a billboard for multipack branding and barcodes.
Chilled dairy and beverage grouping
Frequently used for yogurt cups, dessert pots, and premium beverages. When specified with moisture-resistant board, the sleeve maintains its tension and grip through refrigerated supply chains.
Cosmetic and personal care sets
Useful for grouping matching jars or bottles, such as shampoo and conditioner sets, where displaying the primary packaging is important for brand recognition.
Premium candle or home goods grouping
Allows glass jars to be grouped securely for retail display without covering the decorative glass or product color.
Beverage, Dairy, And Cosmetic Packaging
Automated packing operations
This style is intended for high-speed, automated lines. The flat blanks are fed into the machine, wrapped over the grouped products, and sealed under tension. It is generally inefficient for hand-packing.
Retail shelf presentation
Brands that invest heavily in primary container design often choose this sleeve to keep the product visible on the shelf while still providing a scannable barcode and nutritional information on the base or top.
Material reduction initiatives
By using open pillars instead of solid side walls, this sleeve uses less board than a fully enclosed carton, which can support packaging reduction goals depending on the specific layout and stripping waste.
When To Consider Closed Sides Or Tapered Fits
Need for greater impact protection
If the primary containers are fragile or the multipack needs to survive rougher handling without an outer case, a wrap-around sleeve with solid side walls provides more scuff and impact protection than open pillars.
Tapered or conical products
This specific template assumes straight, vertical cylinders. If you are packing heavily tapered yogurt cups or conical jars, a sleeve designed with angled panels will provide a tighter, more secure wrap.
Product Dimensions, Machinery, And Material Route
Exact product dimensions

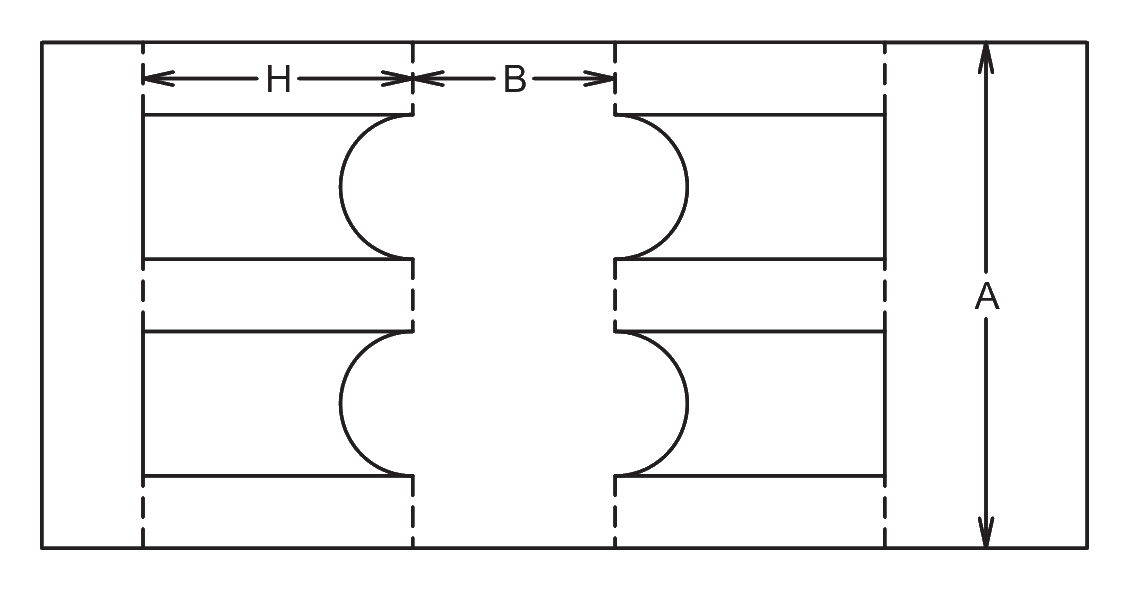

The arc cutouts must precisely match the diameter of your primary container. If the arcs are too shallow, the products can slip out the open sides; if they are too deep, the top panel may tear during transit.
Wrap-around machinery compatibility
Confirm that your packing facility or co-packer has the correct wrap-around equipment to handle flat, unglued blanks and seal them under tension.
Die-cutting and stripping clearance
The large open areas between the pillars are created by die-cutting and stripping away board. The converter must reliably clear these large pieces, which makes the layout and board choice important for smooth production.
Board grade and coating
The choice of board depends heavily on the supply chain. Refrigerated products often need specific board grades to prevent the base from sagging, while ambient products can use standard paperboard.
Tuning The Grip And Pillar Height
Arc depth and grip tightness
The depth of the cutouts can be adjusted to balance how tightly the sleeve grips the product versus how much board remains in the top panel for lifting strength.
Pillar width and placement
The vertical pillars can be widened for better top-load stacking strength or narrowed to expose more of the primary product, depending on the weight of the containers.
Closure flap orientation
Depending on the specific equipment setup on the packing line, the closure flap can be designed to seal underneath the bottom panel or on top of it.
Board and packing details
Outer transit packaging
This sleeve groups products for the retail shelf but does not protect them from loose pallet handling. It requires a master shipper or tray for distribution.
Variants
Double-row configurations
While this specific template is for a single row of products, similar wrap-around logic exists for double-row multipacks (such as 2x2 or 2x3 configurations) using related ECMA templates.
Additional notes
Primary product tolerances
Glass and plastic containers often have slight manufacturing variances in diameter. The sleeve's arc cutouts must be toleranced to grip the smallest acceptable container without crushing the largest.
Related Wrap-Around Sleeves
FAQs
Machinery and packing
Can this sleeve be assembled by hand?
While a sample can be folded by hand, production runs typically rely on automated wrap-around equipment to maintain tension while the closure sets.
Product fit
Does this sleeve work for square or rectangular products?
This specific template uses arc cutouts tailored for cylinders. For square or rectangular products, a different wrap-around style with straight creases is usually a better fit.
Material and route
What board should be used for refrigerated multipacks?
Condensation can weaken standard paperboard. A specific board grade is often needed to prevent the base from sagging or the closure from failing.
Design and handling
Can the sleeve support heavy stacking loads on a pallet?
The sleeve itself provides minimal vertical stacking strength due to the narrow pillars. The pallet load is primarily borne by the enclosed cylindrical products, such as glass jars or rigid plastic bottles.
Samples and testing
How do we test the fit before production?
We can cut a short run of samples on a CAD table, but because manual assembly cannot perfectly replicate machine tension, the final grip and retention should be validated on the actual packing equipment.
Manufacturing
Why does the open-sided design affect manufacturing?
To create the open sides, large sections of board must be die-cut and stripped away as waste. The converter must reliably clear these large pieces during production.
Machinery and packing
How does the sleeve stay tight around the products?
The flat blank is wrapped over the grouped products and pulled tight by the machine before the closure is sealed, locking the tension in place.
Design and handling
Can we print on the inside of the pillars?
Yes, the inside of the board can be printed, but visibility is limited once the products are loaded. The top and bottom panels offer better continuous billboard space.
