Retail Multi-Pack Applications
Beverage and Canned Goods Grouping
Built for creating four-packs or six-packs of cans, jars, or small bottles. The carton wraps tightly around the products, using them for internal support while providing large side panels for retail branding.
Cosmetic and Personal Care Bundles
Useful for grouping cylindrical bottles or tubes for promotions or retail sets. The top cutouts allow the product caps or pumps to remain visible while keeping the items securely collated.
Retail Food Jars and Spreads
Groups glass or plastic jars for club stores or special promotions. The tight wrap keeps the jars from clinking together, while the open ends allow shoppers to see the primary labels.
Household Cleaning Sprays
Bundles double rows of spray bottles or wipes. The top cutouts can be sized to fit around trigger sprayers, keeping the heavy bottles locked in place for retail display.
Product Fit and Packing Environments
Retail Display and Shelf Presentation
This carton is designed primarily for the retail shelf. The closed side panels offer an uninterrupted billboard for graphics, while the chamfered profile creates a clean, form-fitting appearance that stands out compared to basic rectangular boxes.
Hand Assembly and Automated Packing
The self-locking design eliminates the need for gluing equipment. It can be wrapped and locked by hand for short promotional runs, or processed on compatible automated wrap-around cartoning machinery for higher volumes.
Club Store and Promotional Kitting
Allows brands to create multi-packs for special retail events without changing the primary product packaging. The wrap-around style is fast to deploy for temporary retail programs.
When to Consider Glued or Single-Row Wraps
Heavy products requiring a glued seam
If you are bundling heavy glass bottles or large liquid containers, the mechanical bottom lock may pop open under the lifting tension. Review a glued wrap-around carton, which offers a more permanent, weight-bearing closure.
Single-row product arrangements
If your products need to be lined up in a single file rather than a double row, a single-row wrap-around carton will provide the correct footprint and cutout alignment.
Board Strength, Fit, and Packing Route
Board Tear Strength
Because the entire package is held together by the tension of the bottom locking tabs, the chosen paperboard must have excellent tear resistance. High-strength boards are often required to prevent the tabs from failing when the multi-pack is lifted.
Exact Product Dimensions
The holding power relies on the top and bottom cutouts precisely gripping the rims or bases of your specific product. Accurate diameter and height measurements are critical to ensure the wrap is tight enough to prevent slipping but not so tight that it crushes the board.
Cutout Grip and Seating
Decide how tightly the top and bottom holes should grip the product. The cutouts can be sized to lock under a bottle cap or simply rest against the shoulder of a can.
Outer Transit Packaging
This is a primary retail package with open ends and exposed products. It provides minimal vertical crush resistance on its own and requires a dedicated corrugated master shipper for safe transit through distribution or parcel networks.
Adjusting Cutouts and Wrap Tension
Cutout Sizing and Placement
The circular cutouts can be adjusted to match the specific diameter of your product cap, neck, or base. The offset of these holes dictates how much of the product protrudes through the top panel.
Chamfer Angle and Side Panel Height
The angled side panels can be modified to hug the shoulders of a bottle or the straight walls of a can. Adjusting these crease lines changes the overall profile and tightness of the wrap.
Locking Tab Geometry
The length and width of the bottom tuck tongues can be fine-tuned based on the thickness of the board to ensure a secure lock that is still easy to engage during packing.
Board and packing details
Grain Direction for Smooth Wrapping
To ensure the carton wraps cleanly around the cylindrical products without cracking, the paperboard grain direction should run perpendicular to the main transverse folding scores.
Package Variants

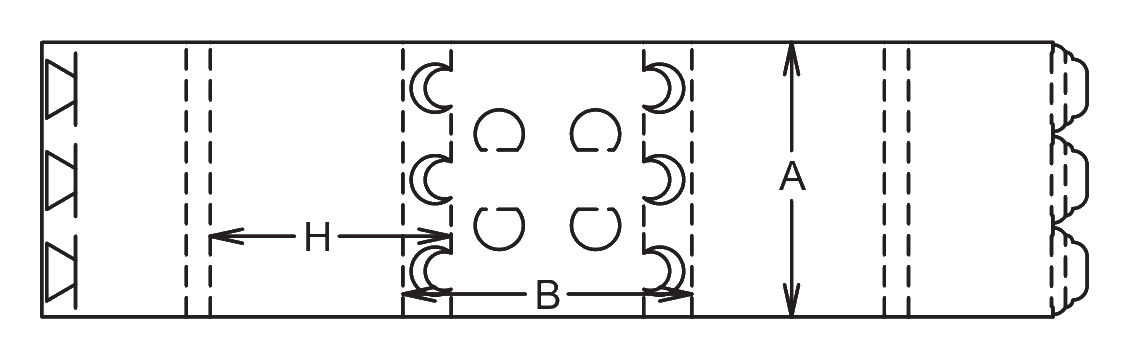

E12.30.00.00.a
A geometric variant that alters the calculations for the chamfered side panels and flap closures, adjusting the tightness and profile of the wrap.
Additional notes
Tab Tear Testing
Before committing to a large production run, it is important to physically test the locking tabs with the actual product weight and chosen board grade to ensure the bottom closure does not fail during normal retail handling.
Related Multi-Pack Cartons
FAQs
Product Fit and Retention
How does this carton hold the products without glue?
The carton wraps tightly around the double row of products. The top and bottom panels feature circular cutouts that seat against the rims or bases of the cylinders, preventing them from shifting laterally. The tension is held by a series of locking tabs on the bottom panel that insert into corresponding slits.
Will this work for square or rectangular bottles?
This specific design is engineered for cylindrical products. The circular cutouts and angled side panels are meant to hug round contours. Square or rectangular products require a different wrap-around structure to ensure a tight fit.
Packing and Assembly
Can this multi-pack be assembled by hand?
Yes. The self-locking tabs allow it to be wrapped and secured manually, which is useful for short runs, market tests, or promotional kitting. However, tensioning the wrap and inserting the tabs by hand is slower than using automated wrap-around equipment.
Materials and Strength
What type of paperboard is needed for this design?
The board needs high tear resistance because the bottom locking tabs bear the tension of the wrap and the weight of the products when lifted. Recycled boards with shorter fibers may tear at the locks under heavy loads.
Shipping and Route
Can I ship this multi-pack directly in the mail?
No. This is a primary retail package designed for shelf display. The ends are partially open, and the carton relies on the products themselves for vertical strength. It must be packed inside a corrugated master carton for shipping and distribution.
Customization
Can the side panels be made completely flat instead of angled?
The angled side panels are a core feature of this specific template, designed to conform closely to cylindrical shapes. If you need straight, vertical side panels, a different template style would be a better starting point.
Materials and Strength
How do I know if the bottom lock is strong enough?
Testing with your actual product weight and chosen board is the best way to confirm the lock will hold during retail handling. Heavy glass bottles may require a glued wrap instead.
Customization
Can this package be printed on the inside?
Yes, the inside can be printed, though it is mostly hidden by the products once wrapped. It can be useful for promotional codes or packing instructions.
