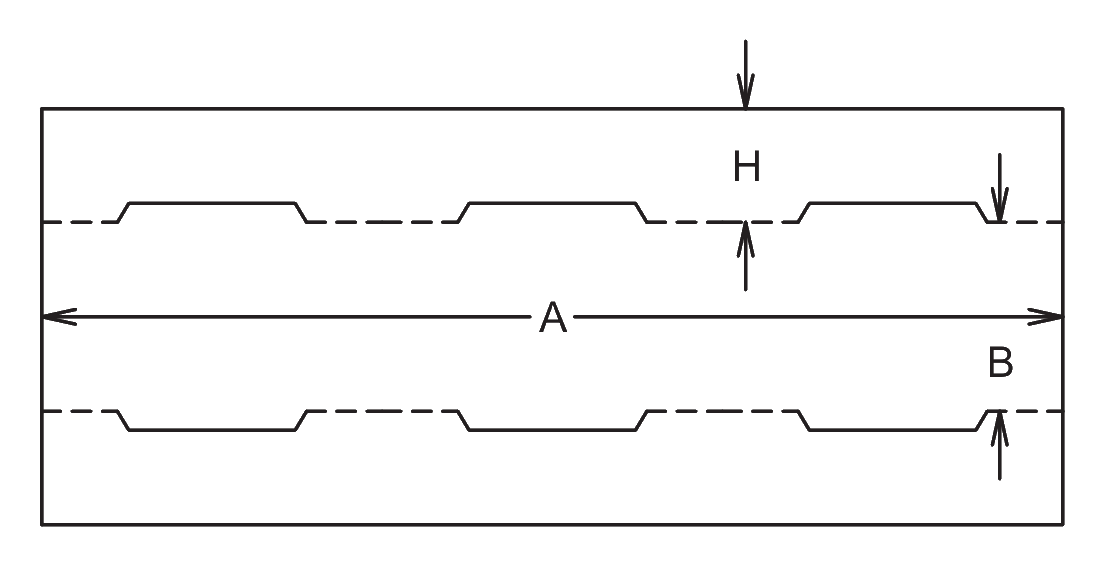

ECMA E10.11.00.00

Top-Clip Carrier for Single Rows

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Groups a single row of cylindrical products
  • Locks mechanically under product rims without glue
  • Requires physical testing with the exact container

About this product

This minimalist folding carton acts as a top-clip carrier, grouping a single row of cylindrical products like beverage cans, yogurt pots, or bottles. Instead of using adhesive or fully enclosing the items, it relies on die-cut locking tabs that slip under the product's rim or chime to hold the row together.

Because it leaves the product highly visible and uses very little board, it is an efficient choice for retail shelves. However, the locking mechanism depends entirely on the physical profile of the product's rim, making physical testing with the exact container an essential step before production.

Common uses

  • Beverage cans
  • Yogurt and dessert pots
  • Cosmetics bottles with pronounced caps/rims

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Multi-Packs and Display

Retail beverage and dairy multi-packs

This carrier is frequently used to group three or four cans, yogurt pots, or dessert cups into a single retail unit. The top panel provides a lifting surface, while the side skirts offer a continuous billboard for branding without hiding the primary product.

High-visibility retail grouping

When the primary container is already branded and protective, this top-clip minimizes redundant packaging. It is strictly for retail display and consumer carry-out; it does not protect the product from transit impacts and requires an outer shipper for distribution.

Promotional sample grouping

For limited-run promotions or trial sizes, this carrier groups items together quickly without requiring complex folder-gluer setup. The flat delivery and simple fold make it easy to deploy for short campaigns.

Open-top display for branded cans

Because the carrier only covers the top rim and a portion of the sides, the primary container's label remains visible on the shelf. This helps maintain brand recognition while still offering a multi-pack purchase option.

Beverage, Dairy, and Cosmetics

Refrigerated supply chains

For cold beverages or dairy products, condensation can weaken uncoated board. Buyers in these channels often specify moisture-resistant board or specific coatings to ensure the locking tabs do not soften and release the products when lifted.

Machine packing lines

The simple two-fold design is well-suited for automated application. The flat blank is positioned over the aligned row of products, and the side skirts are folded downward, forcing the tabs to engage the product rims in one motion.

Hand-packing for short runs

For lower volumes or market testing, the carrier can be applied manually. The operator simply aligns the products and snaps the pre-cut board over the rims, requiring no tape, glue, or specialized equipment.

When to Consider Glued Sleeves or Full Cartons

Products without a pronounced rim

If the bottle or container is smooth and lacks a distinct chime or lip for the tabs to catch, a glued wrap-around sleeve or a fully enclosed carton will provide reliable retention.

Heavy or fragile glass bottles

While the tabs can hold considerable weight when cut from strong board, heavy glass bottles often require base support or separation to prevent clinking. A basket carrier or a base-supporting wrap-around sleeve may be a safer choice.

Tuning the Fit and Board Choice

Board tear strength and grain direction

Because the entire weight of the products is borne by the small locking tabs during lifting, the board must have high tear resistance. Grain direction is typically specified to maximize the beam strength of these tabs.

Exact product dimensions

The length, depth, and taper of the locking tabs must be precisely matched to the product's rim. A fraction of a millimeter can mean the difference between a secure lock and a carrier that slips off. Physical samples of the exact product are required to finalize the cut profile.

Moisture exposure and board finish

If the products will be stored in coolers or exposed to condensation, the board choice must account for moisture. Uncoated board may lose stiffness, increasing the risk of the locking tabs failing during lifting.

Packing method and volume

The choice between hand application and machine application affects how the locking tabs are shaped. Machine application often requires a specific taper on the tabs to ensure they slide over the rims smoothly without crushing.

Adjusting Skirt Height and Tab Profiles

Side skirt height

The vertical side panels can be lengthened to provide more branding space or shortened to reveal more of the primary container, provided they do not exceed the height of the product.

Finger holes for lifting

For heavier multi-packs, ergonomic finger holes can be added to the top panel to improve consumer handling, though this does remove some material from the primary lifting surface.

Locking tab taper

The angle of the locking tabs can be adjusted. A steeper taper helps the carrier slide smoothly over the product rims during machine application, while a different profile might be preferred for manual assembly.

Board and packing details

Testing the locking engagement

Before committing to a full production run, the carrier should be cut from the intended board grade and tested with full, sealed product containers. This confirms that the tabs seat correctly during application and hold securely during a sudden lift.

Additional notes

Tab taper and machine application

The angle of the locking tabs can be adjusted to help the carrier slide smoothly over the product rims during machine application without crushing the board.

Related Multi-Pack Options

E12.11.00.00: Double Row Top-Clip

Consider for packing two rows of products.

FAQs

Product Fit and Retention

Does this carrier require glue or tape?

No. This design relies entirely on mechanical locking. Die-cut tabs in the board slip under the rim or chime of the product when the side panels are folded down, holding the items securely.

Can this be used for any cylindrical bottle or can?

It requires a container with a distinct, rigid rim or lip near the top. Smooth-sided bottles or containers with very shallow rims may slip through the locking tabs.

Materials and Route

What board is best for this style?

The board must have high tear strength, as the small locking tabs bear the full weight of the products when lifted. If the products will be refrigerated, a moisture-resistant board is also critical to prevent the tabs from softening due to condensation.

Production and Packing

Is this applied by hand or machine?

It can be applied either way. For smaller volumes, it is easily snapped over the products by hand. For high volumes, it is routinely run on automated lines that press the blank over the grouped products.

Samples and Testing

Why are physical product samples needed for the design?

The locking tabs must be precisely angled and sized to match the exact profile of your container's rim. Even minor differences in a can's chime or a bottle's neck ring require adjustments to the cut lines to ensure a safe, tight fit.

Shipping and Route

Can this be shipped through parcel networks?

Not on its own. This is a primary retail multi-pack that leaves the products exposed. It must be packed inside a corrugated master shipper for distribution or parcel delivery.

Product Fit and Retention

How does the carrier stay on the products?

When the side panels are folded down, small die-cut tabs remain horizontal and catch underneath the rim of the cans or bottles, creating a mechanical lock that supports the weight during lifting.

Print and Branding

Can the side panels be printed?

Yes. The side skirts provide a continuous flat surface for branding and product information, making it easy to display marketing graphics without hiding the primary containers.
