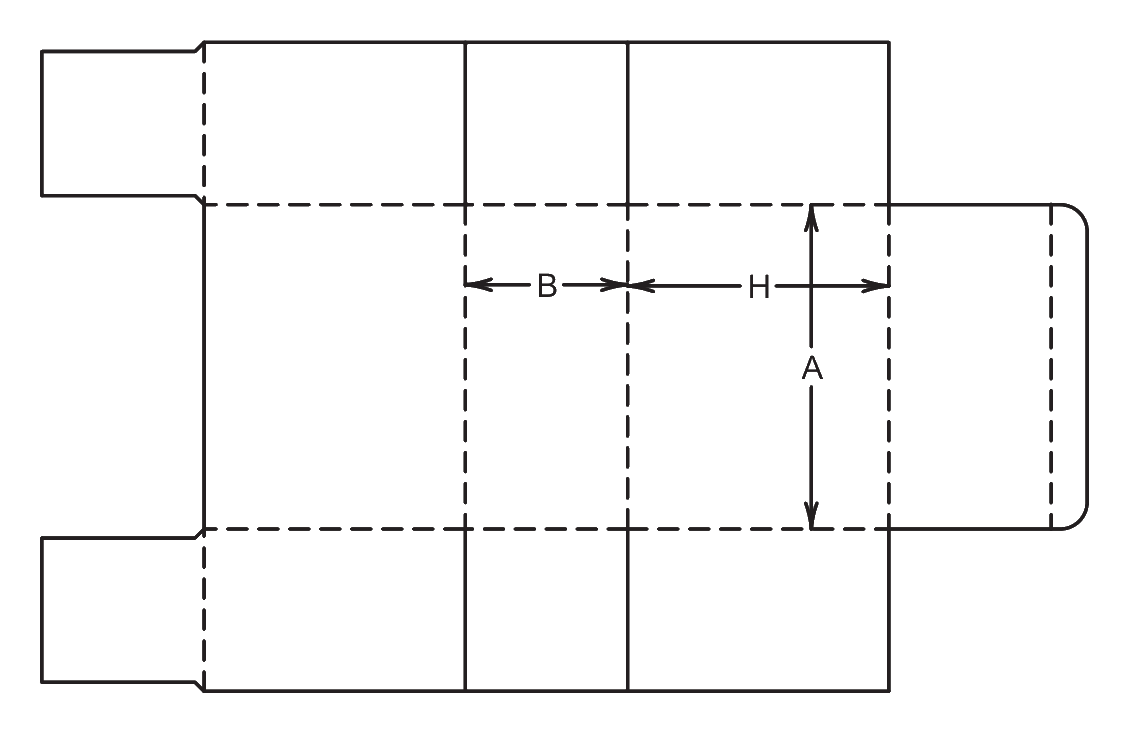

ECMA F60.01.00.00

Double-Glued Hinged Tray Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-thick side walls for a rigid, premium feel
Continuous top-to-front lid for unbroken graphics
Ships as a flat, unglued blank for packer-side assembly

About this product

The F60.01.00.00 is a premium, front-loading folding carton that mimics the rigid feel of a set-up box. It features a hinged lid that drops down to close the front opening, creating a presentation-style unboxing experience for retail, electronics, and cosmetics.

Unlike standard tubular cartons, this tray achieves its rigidity through double-thick side walls that are glued together during the packing process. Because it locks into a 3D shape once assembled, it ships as a flat, unglued blank and is usually erected using a specialized tray-forming machine or dedicated manual assembly at the fulfillment site.

Common uses

Premium cosmetics
High-end electronics
Medical devices
Luxury spirits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Interior length

Interior width

Interior depth

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will the tray include a custom insert to hold the product?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Retail and Presentation Packaging

Luxury cosmetics and skincare

The hinged lid and rigid side walls create a high-end presentation style. The continuous surface from the top panel down to the front tuck flap allows for unbroken branding and graphics, making it an excellent alternative to more expensive rigid paper-wrapped boxes.

High-end consumer electronics

The double-thick side walls provide excellent lateral crush resistance, protecting heavy or fragile devices. The tray style allows for custom inserts to hold components securely while presenting them clearly upon opening.

Premium spirits and limited editions

The cigar-box style opening provides a theatrical unboxing experience suitable for high-value bottles. The rigid tray supports the weight of glass while offering a large canvas for foil stamping or embossing.

Medical devices and kits

The wide top opening allows easy access to multiple components or instructions. The sturdy tray base keeps items organized, and the hinged lid can be repeatedly opened and closed during use.

High-Value Retail and Electronics

Retail shelf display

Brands packing high-value items often choose this tray for its structural stability and premium feel. The double-glued side walls resist lateral crushing better than standard single-wall cartons, protecting fragile or heavy products on the retail shelf.

Automated packing lines

Operations equipped with tray formers benefit from the flat-blank delivery. The machine folds and glues the side walls around a mandrel, creating a rigid tray at high speeds without the inbound freight cost of pre-erected boxes.

Low-volume luxury launches

For limited runs or prototypes, the blanks can be assembled by hand using double-sided tape. This allows brands to achieve a rigid-box presentation without committing to high-volume automated equipment.

Manual Fulfillment Without Gluing Equipment

Hand-packing without adhesive

If your packing line relies on hand-erecting pre-glued boxes and you prefer not to apply adhesive or double-sided tape during assembly, this tray is not a fit. Look at standard straight-line or crash-lock cartons, which are glued by the manufacturer and simply popped open by the packer.

Individual parcel shipping

The friction tuck flap is designed for retail presentation, not rough courier transit. If the box will ship individually through parcel networks, consider a mailer box with dust flaps and a locking tab, or plan to use a strong outer shipping carton.

Tray Forming and Assembly Route

Assembly method and equipment

The most critical decision for this package is how it will be erected. High-volume operations typically use automated tray formers to fold and glue the side walls. For shorter runs, manual assembly is possible but involves applying double-sided tape or cold glue to laminate the inner and outer side panels together.

Board thickness and step creases

Because the inner side panels fold inside the outer side panels, the template uses specific layer offsets to prevent the board from binding. Discuss the exact board caliper early so the dieline can be adjusted to fold squarely without cracking the hinges.

Closure security needs

Decide whether a standard friction tuck is sufficient for your retail environment, or if the slit-lock variant is needed to prevent accidental opening. Heavier products may require the extra security of slit locks.

Print layout on the continuous lid

The top lid and front drop-down panel form a single piece of board. This allows for continuous graphics that wrap over the front edge, which should be considered during the artwork design phase.

Layer Offsets for Thick Boards

Layer offsets for thick boards

The CAD template includes parametric adjustments for board thickness. These step creases ensure the inner side walls fit perfectly inside the outer side walls without bowing or stressing the corner hinges.

Tuck flap length and friction

The length of the front tuck flap can be extended for a tighter friction fit, or shortened for easier opening. This adjustment depends on the product weight and how often the consumer will re-open the box.

Dust flap angles

The top dust flaps that support the lid can be angled or tapered to prevent them from catching on the tuck flap during closure, ensuring a smooth unboxing experience.

Board and packing details

Flat delivery and storage efficiency

While the assembly burden is higher at the packing site, shipping the cartons as completely flat, unglued blanks maximizes pallet density and reduces inbound freight costs compared to pre-glued or fully rigid boxes.

Slit-Lock Closure Options

Slit-lock tuck flap (F60.01.00.00.a)

The base carton uses a standard friction tuck. The .a variant adds slit locks to the tuck flap that engage with the front dust flaps, providing a more secure closure that resists accidental opening during handling.

Additional notes

Manual assembly labor

Hand-assembling this tray involves operators folding, aligning, and pressing the double walls together accurately while the adhesive sets. This labor cost should be weighed against the material savings over a true rigid box.

FAQs

Assembly and Production

Can the manufacturer pre-glue this box so it ships flat?

The wrap-around design locks the carton into a rigid 3D tray once the inner and outer side walls are glued. Because of this geometry, it ships as an unglued blank and is erected at the packing facility.

What equipment is needed to pack this carton?

At scale, it is typically erected using an automated tray former capable of applying adhesive and folding the side walls around a mandrel. For low volumes, it can be assembled by hand using pre-applied double-sided tape.

Product Fit and Protection

How does the strength compare to a standard folding carton?

The double-thick laminated side walls provide greater resistance to lateral crushing and vertical compression than a standard single-wall tube carton, making it suitable for heavier or more fragile retail items.

Closure and Route

Is the tuck-in flap secure enough for parcel shipping?

The friction tuck is designed for retail presentation, not rough courier transit. If shipped individually via parcel networks, it will often need a tamper-evident seal, strong tape, or an outer shipping carton to prevent the lid from opening.

Print and Finish

Where is the best placement for primary graphics?

The top lid and the front drop-down panel form a single continuous piece of board. This provides a large, unbroken canvas for premium branding that is immediately visible when the box is resting on a shelf or being opened.

Comparison

Why choose this over a rigid set-up box?

This style offers a similar premium, rigid feel and presentation opening experience but is manufactured from standard folding carton board. This reduces material costs and allows the packaging to be shipped flat, saving inbound freight space.

Materials

Can this be made from corrugated board?

It is usually made from folding carton board. Using corrugated board creates excessive bulk when the side walls fold over themselves, which can cause the hinges to bind or crack.

Prototyping

How easy is it to prototype this box?

Because it does not require a folder-gluer at the manufacturing stage, prototypes can be easily cut on a digital plotter and hand-assembled with double-sided tape to test the fit and feel.
