ECMA F60.81.00.00

Faceted Prism Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Faceted body for premium retail display
Pre-glued auto-bottom base for fast assembly
Simple tuck-in top lid for easy loading and closure

About this product

The Faceted Prism Carton is a decorative retail box featuring diagonal scores that create a diamond-like 3D shape. Designed for premium presentation, it stands out on shelves while keeping packing operations efficient.

Despite its complex appearance, the carton uses a pre-glued auto-bottom base that folds open quickly for loading. It is a practical choice for cosmetics, candles, confectionery, and boutique gifts where the packaging needs to make a strong first impression.

Common uses

Cosmetics and perfumes
Luxury candles
Confectionery and chocolates
Boutique gift items

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Product width

Product depth

Product height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Does the product need an internal insert to stay centered?

Do you want a window cutout to show the product?

How will these be packed for shipping to stores or customers?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Product Fits for the Faceted Prism Carton

Cosmetics and Fragrances

The faceted walls catch light and draw attention on beauty shelves. The shape naturally complements elegant bottles and jars, elevating the perceived value of the product inside.

Candles and Home Goods

The wide midsection accommodates round or irregular items like candles, while the tapered top secures the product. The unique shape turns a simple item into a ready-to-give gift.

Confectionery and Sweets

Often used for high-end chocolates or specialty sweets, the faceted walls create a sense of occasion and indulgence, making the unboxing experience feel special.

Accessories and Jewelry

Small boutique items benefit from the rigid, geometric presentation. The box acts as a display piece that customers often keep long after purchase.

Retail and Promotional Contexts

Retail Brands Seeking Shelf Disruption

When conventional straight-walled boxes blend in, this prismatic shape provides immediate visual disruption without requiring custom plastic molds or rigid box setups.

High-Volume Gift Packing

Because the base is a pre-glued auto-bottom, fulfillment teams can open and load the box quickly. You get an origami-like presentation without the slow, manual folding usually associated with specialty packaging.

Limited Edition Product Launches

The distinct shape signals a special release or seasonal promotion, helping a core product line stand out during high-traffic retail periods.

When a Straight-Walled Carton Makes More Sense

When you need maximum internal volume

The faceted walls taper inward at the top and bottom. If your product is perfectly square and needs to fill the entire bounding box, a basic straight-tuck or reverse-tuck carton will provide more usable space.

When your graphics require large, unbroken panels

The diagonal scores break the side walls into triangular segments. If your branding relies on large, continuous images or extensive text, a flat-paneled box will be easier to design for.

Board, Fit, and Print Decisions

Board Grade and Stiffness

The crispness of the diamond facets depends on the material. A stiffer paperboard helps the walls hold their 3D shape and prevents them from bowing outward under the weight of the product.

Product Fit and Clearance

Because the box is widest in the middle and narrower at the top, check that your product can pass through the top opening. Measure your product against the top aperture, not just the overall width.

Print and Finish Alignment

Decide how your artwork will interact with the diagonal folds. Highlighting the facets with foil stamping, spot gloss, or contrasting colors can enhance the 3D effect, but needs precise print registration.

Master Carton Packing

The faceted shape means these cartons do not sit perfectly flush against one another. Plan your outer shipping boxes carefully, as the irregular footprint requires more void fill or specific nesting arrangements to prevent crushing during transit.

Structural Adjustments and Display Options

Base Style Modifications

While typically designed with a fast-setup auto-bottom, the base can be adapted to a manual snap-lock bottom if you are running smaller volumes and want to avoid the pre-gluing process.

Window Cutouts

Custom die-cut windows can be added to specific triangular facets to reveal the product inside, though the placement should carefully avoid the fold lines.

Internal Base Inserts

For heavy or fragile items like glass perfume bottles, a custom die-cut insert can be added to the base to hold the product perfectly centered within the irregular internal volume.

Board and packing details

Handling and Shelf Display

Plan your retail displays with slightly more breathing room between units to allow the 3D shape to be fully visible.

Additional notes

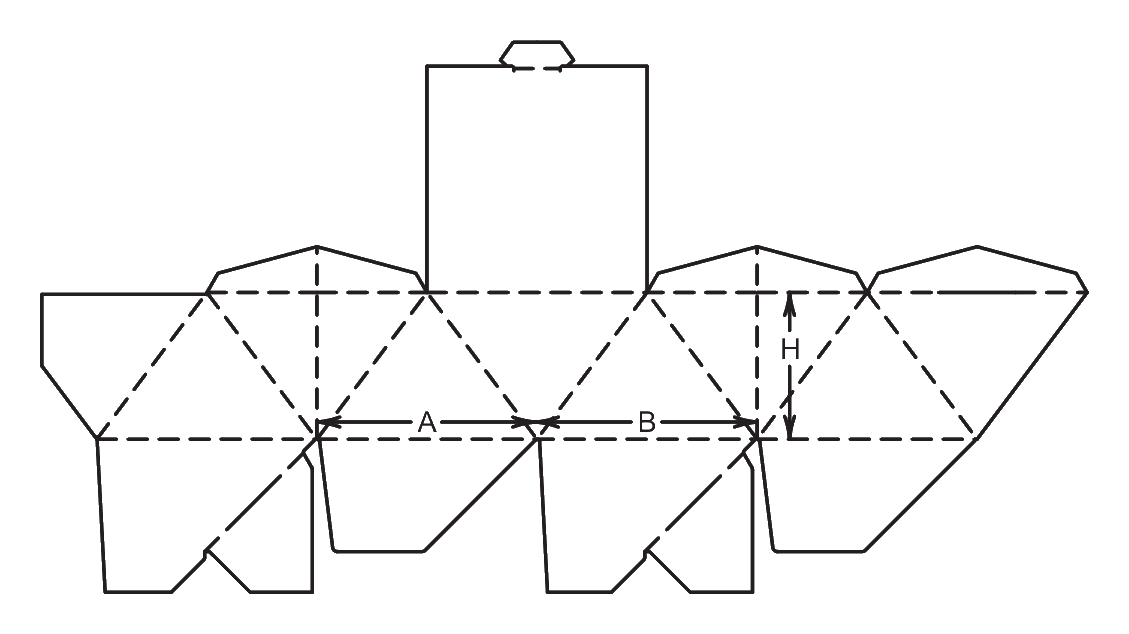

Artwork templates and diagonal scores

When laying out artwork, pay close attention to the dieline's diagonal creases. Text and critical logos should be kept well away from these folds to keep them readable when the box is erected.

FAQs

Product Fit

How do I know if my product will fit inside the faceted shape?

Your product needs to pass through the top opening, which is narrower than the midsection of the box. We recommend requesting a blank sample to physically test the loading process and confirm the product does not push against the inward-folding facets.

Assembly and Packing

Does the complex shape make it slow to pack?

No. The base uses a pre-glued auto-bottom design. When you press the opposite corners, the base locks into place and the faceted walls naturally form their shape. It is nearly as fast to pack as a conventional auto-bottom box.

Print and Design

Can I print a single image across the entire side of the box?

You can, but the diagonal score lines will physically fold the image across different planes. It is often better to design artwork that works with the triangular facets rather than fighting against them.

Materials

What type of board works best for this carton?

A high-quality, rigid folding carton board works well. If the board is too thin, the facets may look soft or bulge unpredictably. A stiffer board helps the diamond-like edges remain crisp.

Shipping

Do these boxes ship flat?

Yes. Despite the 3D final shape, the cartons are glued and folded flat at the factory, minimizing shipping and storage space before they are needed on the packing line.

Display

Can these boxes be stacked on top of each other?

They are not designed for heavy vertical stacking. The simple tuck lid and faceted walls are optimized for individual presentation on a shelf rather than bearing weight from above.

Inserts

Can I use an insert to hold a round bottle steady?

Yes. A custom die-cut platform can be designed to sit at the base of the carton, locking the bottle in the center so it does not rattle against the faceted walls.

Prototyping

Should I order a sample before a full production run?

Yes. Because the internal volume is irregular and the top opening is narrower than the body, testing a physical prototype with your exact product is the safest way to verify fit and packing speed.
