ECMA F20.41.00.00

Hinged Lid Box with Glued Corners

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued corners for fast pop-up assembly
Double-thick base walls hide joints and add rigidity
Friction-fit telescoping lid for premium unboxing

About this product

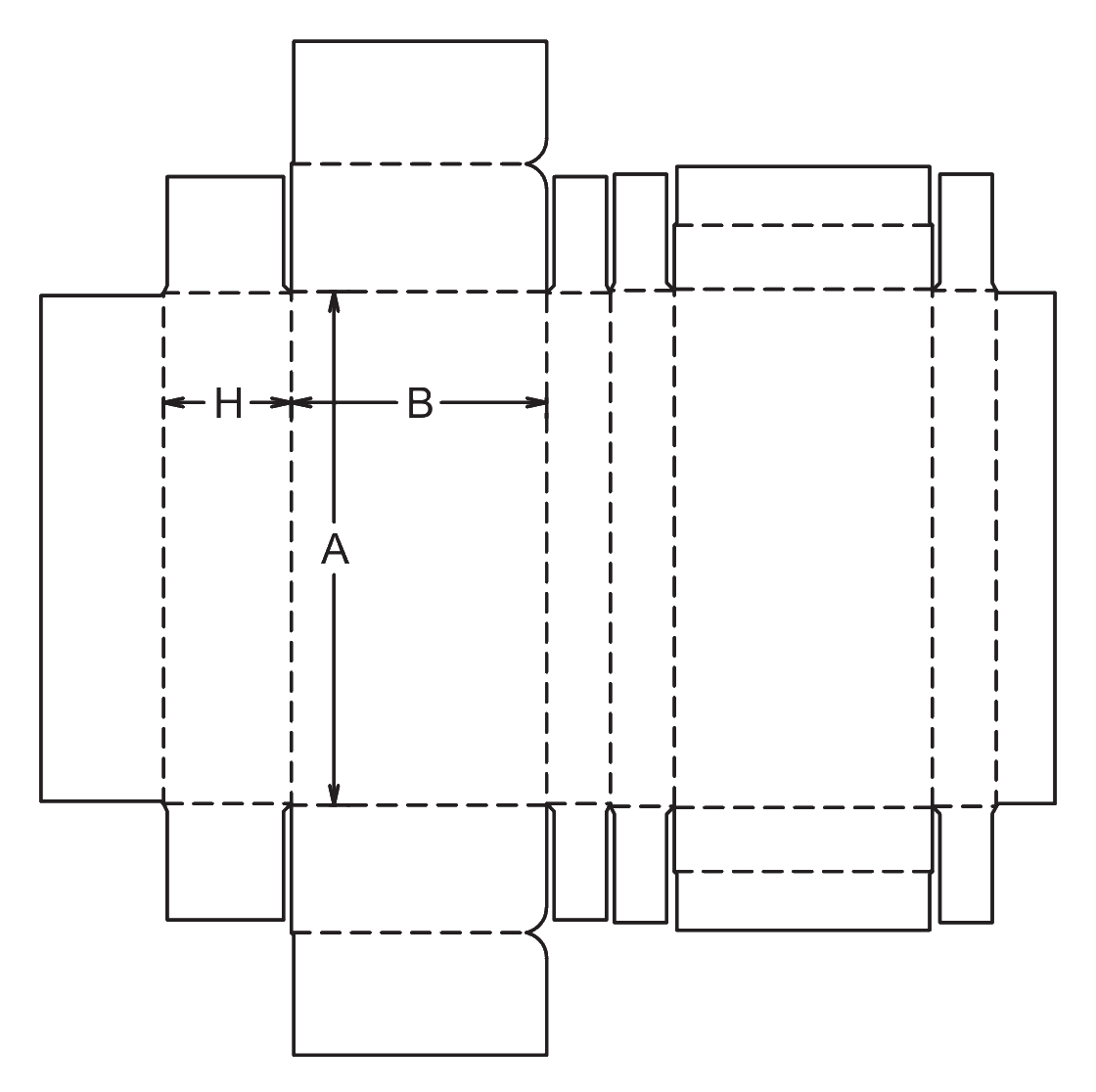

The F20.41.00.00 is a premium, one-piece folding carton that delivers the clean lines and sturdy feel of a rigid setup box while shipping flat. It features a rectangular base with double-thick walls and an attached, telescoping hinged lid.

Because the corners of both the base and the lid are pre-glued by the manufacturer, the tray pops open quickly during fulfillment. The inner wall panels are then folded down to hide the glued joints, creating a clean interior presentation without visible raw edges for cosmetics, electronics, and high-end retail goods.

Common uses

Cosmetics and beauty sets
High-end electronics
Apparel and footwear
Premium gift packaging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped to the final customer?

Do you want thumb cutouts to make the lid easier to open?

What type of items will go inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Retail and Presentation Packaging

High-End Retail and Gift Sets

The double-wall construction mimics the appearance of a rigid paperbox, making it an excellent choice for premium cosmetics, electronics, and luxury apparel. The clean interior, free of visible raw edges or glued flaps, elevates the unboxing experience.

Fast-Paced Fulfillment

Unlike manually folded trays, the pre-glued corners allow the base to pop open quickly when pushed. While packers still fold the inner walls manually to lock them into place, the overall assembly time is reduced compared to unglued alternatives.

Subscription Box Presentations

For subscription programs that want a premium unboxing reveal without the storage footprint of fully formed rigid boxes, this style ships flat and provides a high-end presentation once assembled.

Electronics and Device Packaging

The double-thick walls provide a sturdy perimeter for heavier devices, while the clean interior walls offer a smooth surface for custom inserts or molded trays to sit against.

Industries and Fulfillment Scenarios

Retail Display

The reinforced double walls provide strong vertical stacking strength and resist shelf wear, keeping the presentation crisp in retail environments.

E-commerce and Parcel Shipping

Because the lid relies on a friction fit, this carton is not designed to travel through parcel networks on its own. It usually needs a secure outer shipper or external sealing to keep the lid closed during rough transit.

High-Volume Packing Lines

When packing labor is a bottleneck, the pre-glued corners shift some of the assembly burden to the manufacturing stage, allowing packers to erect the box faster than a fully manual roll-end tray.

When to Consider Folded Corners or Separate Lids

Hand Assembly Versus Pre-Glued Pop-Up

If you want to avoid complex multi-point gluing or prefer to handle all assembly by hand, compare this to the F20.42.00.00. That version uses the same hinged lid but relies on unglued, friction-locked corners assembled entirely by hand.

Two-Piece Rigid Styles

If the attached lid interferes with your packing line or display needs, a two-piece telescopic box (separate base and lid) may offer better handling flexibility.

Board Thickness, Gluing, and Transit Route

Board Caliper and Fold Clearance

The inner walls fold 180 degrees inward to lock the tray. Thicker boards or micro-flutes need precise crease adjustments to prevent the board from cracking or the walls from bowing outward.

Friction Fit Tolerance

The lid stays closed by gripping the outside of the base walls. The exact dimensions of the lid lips should be calibrated to the chosen board thickness to ensure a secure hold without making the box difficult to open.

Production Route and Gluing

This sprawling one-piece blank is typically processed on a multi-point folder-gluer capable of handling a 6-corner setup, gluing both the base corners and the lid corners simultaneously. This capability should be discussed early in the quoting process.

Outer Shipper Requirements

Because the lid is held by friction rather than a positive lock or tuck flap, buyers planning to ship this directly through courier networks should evaluate outer shipping boxes or tamper-evident seals.

Structural Adjustments and Clearances

Inner Wall Layers

The double-thick inner walls can be removed to save material, but doing so exposes the glued corner flaps and raw edges, removing the premium rigid-box appearance.

Lid Depth

The depth of the telescoping lid lips can be adjusted. A deeper lip provides a more secure friction fit and a different visual profile, while a shallower lip uses less board.

Thumb Cutouts

Adding a small half-moon thumb cutout to the front lip of the lid or the front wall of the base can make the friction-fit lid easier for the end user to open.

Board and packing details

Board grain and fold-over cracking risk

Because the design relies on 180-degree folds for the inner walls, grain direction is critical. The grain should run parallel to the main fold-over creases to prevent cracking, though the complex blank means some creases will inevitably cross the grain.

Additional notes

Packing speed versus production route

The pre-glued corners speed up hand-packing compared to unglued roll-end trays, making this style efficient for larger fulfillment runs where the initial manufacturing setup is justified.

Premium finishes and board choice

The smooth, flat surfaces of the double walls and lid make this an excellent candidate for high-end graphics, foil stamping, and embossing on solid bleached sulfate board.

FAQs

Assembly and Packing

How much manual assembly is involved?

The manufacturer pre-glues the corners, so the tray pops open quickly. However, the packer still manually folds the inner wall panels 180 degrees downward to lock the structure and hide the glued joints.

Closure and Shipping

Will the lid stay closed during shipping?

The lid uses a friction fit. While secure enough for retail handling and presentation, it can pop open under transit vibration. For parcel shipping, it should be placed inside an outer shipping carton or secured with tamper-evident seals.

Materials

Can this be made from corrugated board?

It is primarily designed for folding carton board like FBB or SBS. Using micro-flute corrugated is possible but should be checked carefully; the 180-degree folds for the inner walls can crack or cause the walls to bow if the crease clearances are not perfectly calibrated.

Manufacturing

What makes the production route specific for this box?

The sprawling blank usually relies on a specific folder-gluer setup. The equipment applies adhesive to both the base corner flaps and the lid corner flaps in a single pass, often called 6-corner gluing, which depends on specific converting capabilities.

Design Options

Can we add a window to the lid?

Yes, a window patch can be added to the top panel for product visibility, provided it is kept safely away from the hinge and edge creases to keep the lid strong.

Comparison

What is the difference between glued corners and folded corners for this style?

Glued corners, as seen in this style, rely on specialized machine gluing but pop open quickly during packing. Folded corners avoid machine gluing entirely but take longer to assemble by hand on the packing line.

Delivery

How are these boxes delivered to the packing facility?

They are delivered knocked down flat. The converter pre-glues the corners and folds the blank flat, allowing for efficient pallet transport and storage before they are popped open for loading.

Printing

Can the inside of the box be printed?

Yes. Because the box is made from a single sprawling blank, the interior panels can be printed in the same pass as the exterior, allowing for full-color reveals when the lid is opened.
