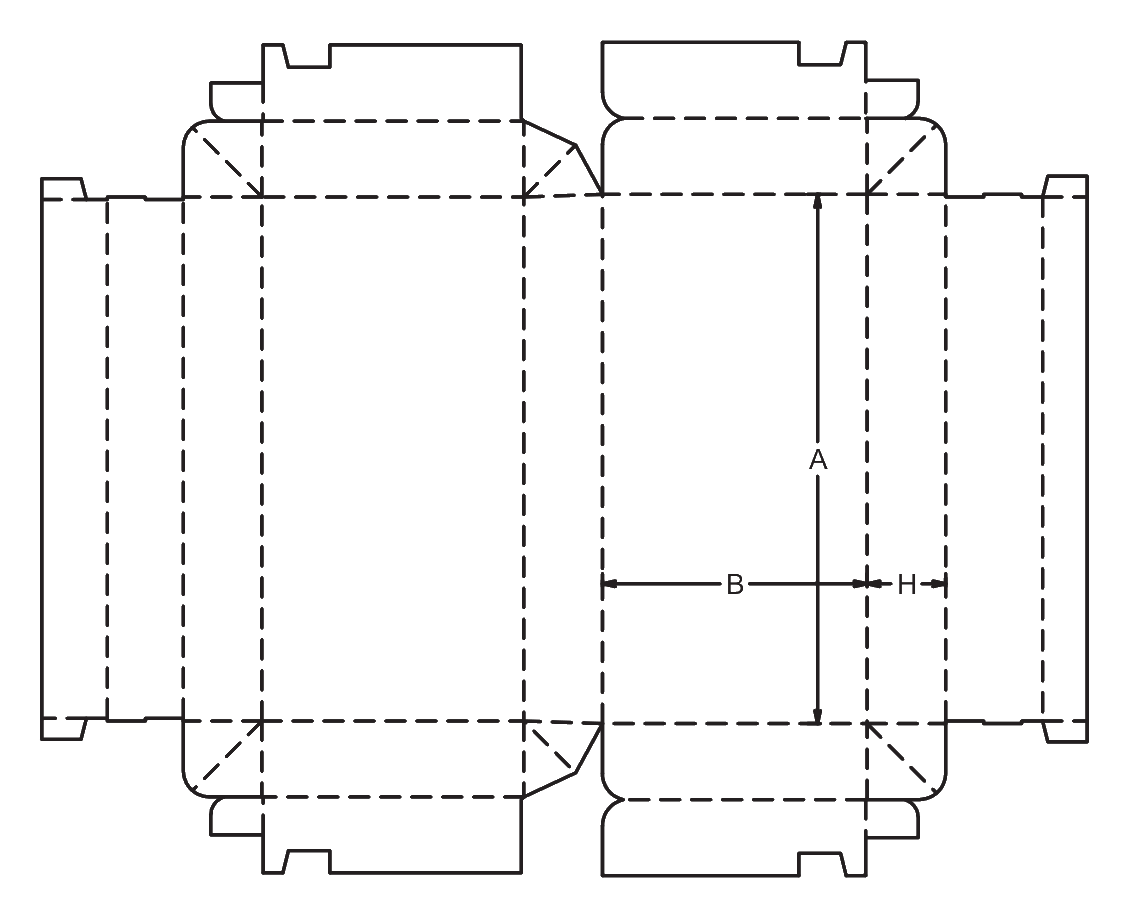

Roll-End Tray with Hinged Lid and Webbed Corners

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Clean double-wall interior with hidden corner folds
  • Delivered flat and erected manually without glue
  • Integrated hinged lid with friction-tuck closure

About this product

This one-piece folding carton constructs a sturdy, double-walled tray base with an integrated hinged cover. Instead of cut and glued corners, the base uses diagonal creases that fold inward (webbed or bellows style), which are then locked in place by roll-over side and front panels.

The result is a premium presentation package with a completely clean interior and no exposed raw edges. Because it requires no gluing during manufacturing, it is highly flexible for short runs, though it shifts the assembly effort entirely to the manual packing team.

Common uses

  • Apparel and soft goods presentation
  • Bakery and confectionery packaging
  • Luxury cosmetics and gift sets
  • Short-run promotional kits
