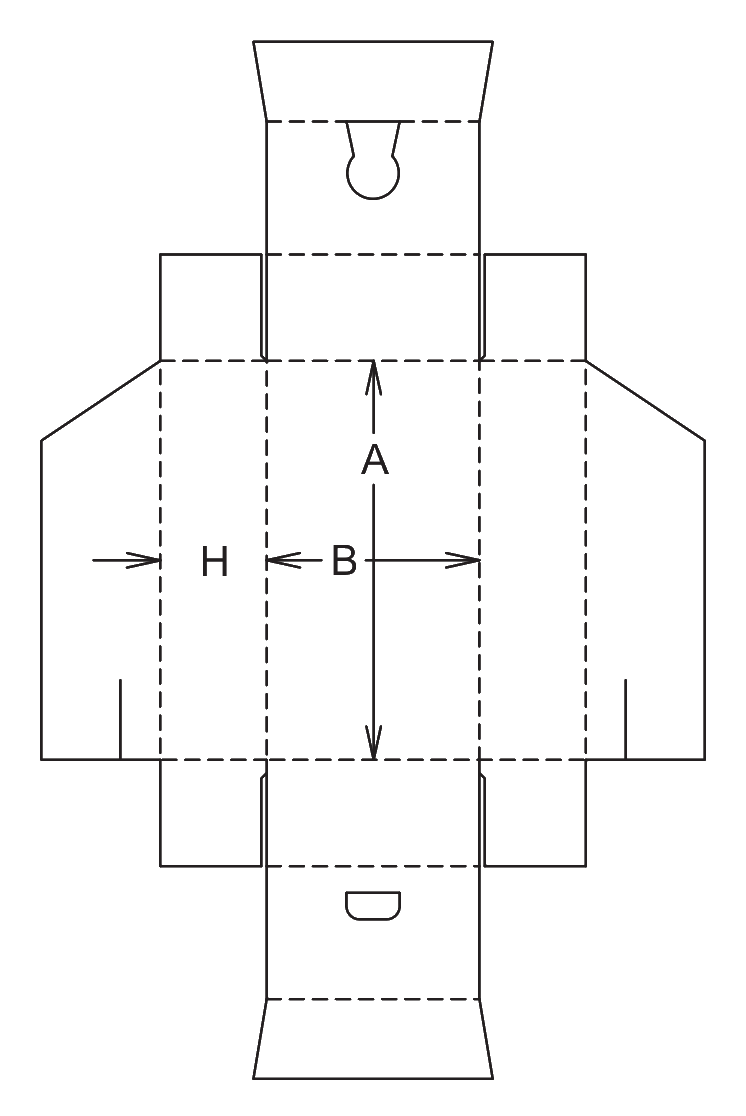

ECMA F50.01.00.00

Open-Front Bottle Display Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Open-front retail presentation with internal bottle retainers
Glue-free friction tuck assembly delivered flat
Relies on manual folding and an outer shipper for transit

About this product

The open-front bottle display carton is a specialized retail sleeve designed to present premium spirits, cosmetics, and specialty beverages. Instead of hiding the product behind a solid front panel, this design uses inward-folding side frames, a sloping top neck retainer, and a pop-up base tab to hold a bottle securely while keeping the label fully visible.

Delivered flat and assembled entirely through friction tucks, this carton relies on complex 180-degree folds and precise cutouts to grip the product. It usually uses high-quality folding boxboard and manual assembly before being packed into an outer shipper for transit.

Common uses

Premium spirits and liquor
Cosmetics and skincare pumps
Specialty olive oils and high-end sauces
Promotional holiday kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Width

Depth

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of bottle or product will this hold?

How should the inside of the display be printed?

How will the filled displays be shipped?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Presentation

Premium shelf presentation

This carton is built specifically for the retail shelf. The open front allows consumers to see the primary container, while the double-thick side frames and solid back panel provide a rigid, premium backdrop. The top and bottom retainers keep the bottle from tipping or sliding forward during normal shelf interaction.

Gift and promotional kitting

Often used for holiday releases or limited-edition runs, the sleeve acts as a high-end frame. Because it relies on friction tucks rather than glued seams, it is a practical choice for short-run promotional packing where automated gluing lines are not used.

Specialty retail counters

For high-traffic retail counters, the open face encourages impulse interest. The solid back panel provides enough space for branding and regulatory text without cluttering the front view.

Limited-edition product launches

When a brand introduces a custom glass shape, hiding it behind a solid carton defeats the purpose. This display frames the unique silhouette while keeping the bottle upright and stable.

Product Categories and Shelf Environments

Spirits and specialty beverages

Liquor, wine, and high-end olive oil brands use this structure to frame custom glass shapes. The top keyhole cutout is sized to capture the neck, while the base tab locks against the heel of the bottle, preventing movement without obscuring the main label.

Cosmetics and personal care

Tall, cylindrical cosmetic bottles and skincare pumps fit naturally into this display. The solid back panel provides ample space for regulatory text and branding, leaving the front completely open for product visibility.

Gourmet foods and sauces

High-end syrups, hot sauces, and specialty vinegars benefit from the framed presentation. The carton elevates the perceived value of the bottle for boutique grocery environments.

When to Consider Closed Cartons or Trays

High-speed automated packing

This display relies on intricate manual folding, including a 180-degree base reinforcement and multiple friction tucks. If your fulfillment line relies on rapid, automated cartoning, a standard glued tuck-end carton or crash-lock base is often a better fit.

Direct parcel shipping

The open front exposes the primary container to impact. If the package will be shipped individually through courier networks, a fully enclosed mailer or shipping carton is a safer choice. This display sleeve usually needs to be packed inside a protective outer shipper for transit.

Board, Print, and Assembly Choices

Board grade and foldability

This design relies on a high-quality virgin board, such as Folding Boxboard (FBB) or Solid Bleached Sulphate (SBS). The structure uses 155-degree, 158-degree, and 180-degree folds. Lower-grade recycled boards or micro-flute corrugated can crack, bind, or fail to hold the friction tucks.

Two-sided print requirements

Because the front is open, the entire inside of the back panel is visible behind the bottle. The inward-folding side frames and the top sloping panel also expose the reverse side of the board. Plan for two-sided printing or a coated-back board to maintain a premium appearance.

Exact bottle dimensions

The top neck hole and bottom base tab should be closely matched to your physical product. A physical sample of the exact bottle helps tune these cutouts so the product is held securely without tearing the board during insertion.

Assembly labor planning

Because the carton is erected entirely by hand with multiple inward folds and tucks, setup takes longer than a standard glued box. Factoring this time into fulfillment planning helps keep promotional rollouts on schedule.

Tuning the Retainers and Frames

Neck hole and base tab sizing

The top keyhole and bottom pop-up tab are adjusted based on the bottle's neck diameter, base diameter, and overall height. These retainers can be modified for straight cylinders, tapered bottles, or custom shapes.

Side frame bevel angle

The inward-folding side panels create a framed edge around the product. The angle of this bevel can be adjusted to create a steeper or shallower frame, changing the visual depth of the display.

Base reinforcement fold

The bottom panel folds back on itself 180 degrees to create a double-thick floor. This fold can sometimes be pre-glued by the converter to speed up manual assembly at the packing facility.

Board and packing details

Manual assembly expectations

Operators fold the side frames, lock the top and bottom dust flaps, seat the bottle into the base tab, and tuck the top sloping panel over the neck. Discussing this sequence with your packing team helps ensure smooth fulfillment.

Template Variants

Base Standard (F50.01.00.00) vs. Variant (.a)

The base template uses fixed geometric relationships for the retainers and a wider front bevel angle. Variant .a uses board-thickness-aware calculations for the base slit and a steeper front bevel. Both function identically on the shelf, but the variant often provides a more precise fit for the base tab.

Additional notes

Fulfillment labor and setup time

Because this is a manual, multi-step folding process, setup times are longer than standard cartons. Discuss assembly expectations with your fulfillment team before committing to this format for high-volume runs.

FAQs

Product Fit and Retainers

Can this display hold square or rectangular products?

It is specifically designed for bottles and cylindrical products. The top keyhole and bottom pop-up tab rely on the curved shape of a bottle neck and base to lock the product in place. Square products usually need a different internal retention strategy.

Print and Finish

Do I need to print on the inside of the carton?

Usually, yes. The open front exposes the inside of the back panel, the underside of the top sloping panel, and the inward-folded side frames. Most premium applications use two-sided printing to ensure no raw or unbleached board is visible.

Assembly and Packing

Does this carton use glue?

The base structure locks together using friction tucks and the tension of the folded board. However, this means the board should be stiff enough to hold its shape, and the assembly is done carefully by hand.

Material Choices

Can this be made from corrugated board for heavier bottles?

Usually not. The intricate 180-degree folds, small tuck flaps, and precise neck cutouts tend to crush and bind if made from corrugated micro-flute. It relies on a high-quality folding carton board to fold cleanly and hold the bottle securely.

Shipping and Route

Can I ship this display directly to a customer?

Not on its own. The open front leaves the primary container exposed to impact, and the friction tucks can pop open during rough handling. It should be packed inside a fitted corrugated outer shipper for parcel or courier delivery.

Samples and Prototypes

Why is a physical bottle helpful for a prototype?

The display relies entirely on the top hole and bottom tab gripping the bottle perfectly. If the cutouts are too loose, the bottle can slip; if they are too tight, the board can tear during loading. A physical test is the best way to verify the fit.

Display Adjustments

Can the side frames be adjusted to show more of the bottle?

Yes, the angle of the inward-folding side panels can be modified. A steeper angle reveals more of the bottle, while a shallower angle creates a wider, more prominent paperboard frame around the product.

Base Retention

How does the base tab keep the bottle from sliding out?

A small cut-out tab in the bottom panel is pushed up during assembly. It acts as a physical stopper that rests against the heel of the bottle, preventing the base from sliding forward out of the open front.
