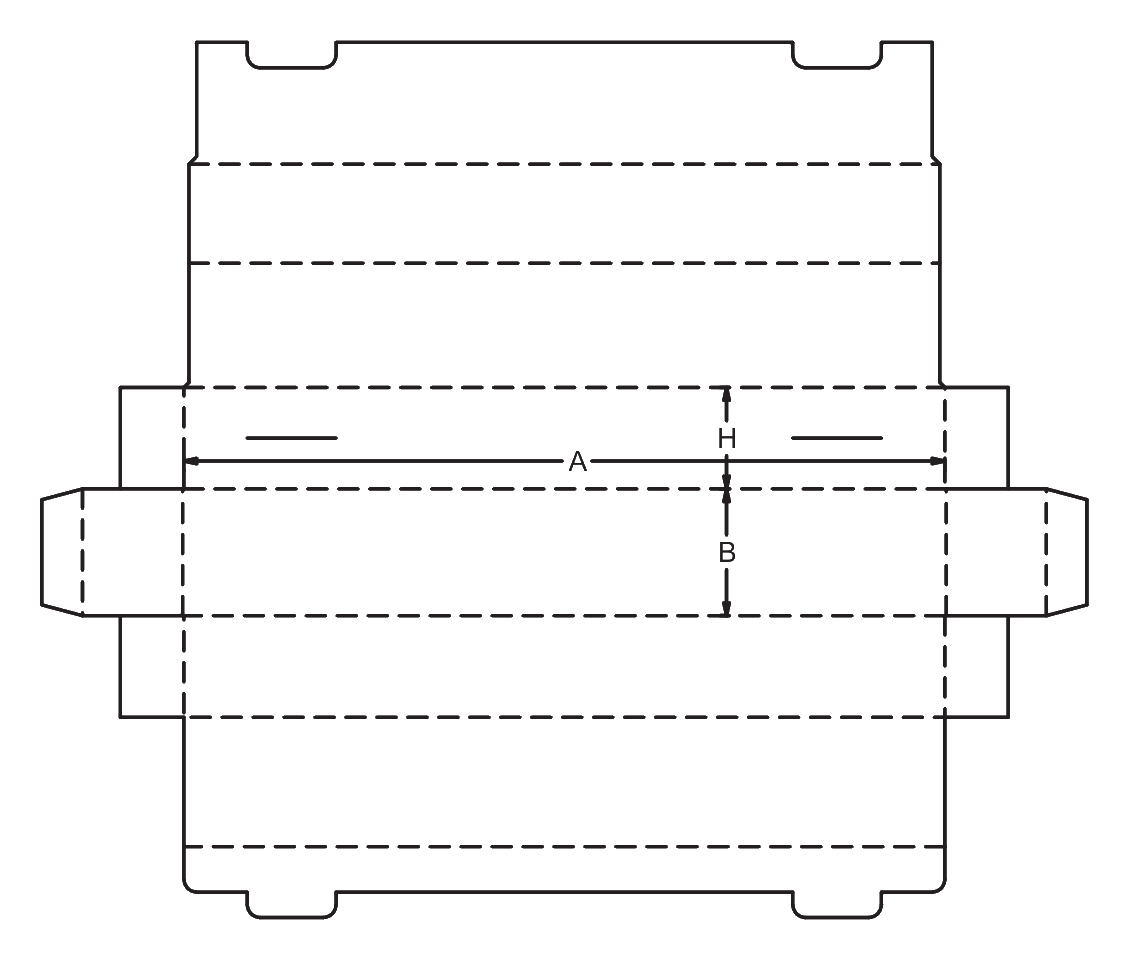

ECMA F20.33.00.00

Presentation Carton with Integral Platform

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in platform elevates the product
Unglued, self-locking structure
Relies on manual folding and assembly

About this product

This unglued folding carton features a front wall that rolls inward to create a built-in, elevated platform. Designed for premium unboxing experiences, it presents the product securely without requiring a separate insert.

The design eliminates folder-gluer manufacturing steps but relies on manual assembly. It is a strong fit for cosmetics, medical devices, and luxury gifts where presentation justifies the hand-packing effort.

Common uses

Cosmetics
Medical devices
Small electronics
Luxury gifts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of item will sit on the built-in platform?

Will the platform need custom cutouts to hold your product in place?

How will these boxes be packed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Presentation and Display

Luxury Unboxing and Gifts

The built-in platform elevates the item as soon as the hinged lid is opened. The lack of glue seams keeps the interior clean and focused entirely on the product.

Medical Devices and Cosmetics

The unglued structure is favorable for clean-room environments or premium beauty products. The platform can be customized with cutouts to hold specific shapes securely.

Small Electronics and Wearables

For lightweight tech accessories, the internal shelf provides a clean presentation surface while keeping cables or manuals hidden beneath the platform.

Sample Kits and Promotional Sets

When placed inside a protective outer shipper, this carton creates a memorable unboxing moment for multi-item promotional kits, using custom die-cuts to space out the samples.

Industries Using Integral Platforms

Manual Kitting and Fulfillment

Because the front wall rolls inward and locks over the side dust flaps, this carton relies on manual assembly. It is generally not a fit for automated cartoning lines.

Clean-Room and Adhesive-Free Environments

The entirely friction-locked design avoids adhesives, making it useful for specific medical or sensitive product packing where glue outgassing is a concern.

E-commerce and Parcel Shipping

The friction locks and unglued walls are designed for presentation, not rough transit. This carton should be placed inside a protective outer shipper for courier delivery.

When to Consider Standard Trays or Separate Inserts

Automated Packing Lines

If your fulfillment relies on automated erecting lines, the complex internal folds of this carton will cause bottlenecks. Compare standard glued straight-tuck or reverse-tuck cartons instead.

Heavy or Dense Products

The internal platform is suspended and relies on the board's stiffness. For heavy items that might crush the platform, consider a standard roll-end tray with a rigid corrugated insert.

Board Choice and Assembly Planning

Board Flexibility and Grain Direction

The front wall rolls inward through multiple tight creases. A high-quality Folding Boxboard (FBB) or Solid Bleached Sulfate (SBS) is often chosen to prevent cracking. Grain direction should run parallel to these main horizontal folds.

Platform Support for Product Weight

The weight of the item resting on the platform dictates the required board caliper. The platform needs to be stiff enough to prevent sagging or tearing at the folds.

Assembly Labor and Packing Speed

While this design saves on gluing costs, it shifts time to the packing floor. Fulfillment teams should plan for the multi-step folding sequence.

Outer Shipping and Transit Protection

Determine early if this carton will be handed directly to consumers or shipped via parcel networks. If shipping, plan for a fitted corrugated outer mailer.

Platform Angle and Lock Adjustments

Platform Depth and Slope

The depth and slope of the internal platform can be adjusted to match the product's profile, changing how high the item sits inside the tray.

Die-Cut Product Retention

The platform panel can be die-cut with specific apertures to cradle bottles, jars, or devices, keeping them centered during display.

Tongue and Cutout Lock Sizing

The friction lock relies on tabs engaging with cutouts on the lid. These can be sized based on the board thickness to ensure a smooth but secure closure.

Board and packing details

Friction Locking for the Lid

The lid secures using a tuck flap with cutouts that engage tongue tabs on the front platform. This friction lock keeps the carton closed without external seals, though a clear seal can be added for tamper evidence.

Retail Presentation Variants

Pegboard Presentation Variant

Adds a reinforced hanging hole to the extended back panel for retail pegboard environments.

Additional notes

Assembly labor costs

While this design saves money by eliminating factory gluing, it shifts that cost to your fulfillment center. Ensure your packing team is prepared for the multi-step folding sequence.

FAQs

Assembly and Packing

Can this carton be erected by machine?

The front wall rolls inward to form the platform, and the side walls rely on trapped dust flaps. This typically requires manual assembly by trained packers.

Product Fit

How much weight can the internal platform hold?

This depends entirely on the board grade and the size of the carton. It is designed for lightweight premium items like cosmetics or small devices. Heavy items can cause the platform to sag or tear.

Manufacturing

Does this carton require gluing?

No. The entire structure, including the platform and the tray walls, locks together using friction and trapped flaps. It eliminates the folder-gluer step completely.

Shipping

Can I ship this carton directly in the mail?

The friction locks and unglued walls are not designed for rough courier handling. It should be packed inside a sturdy outer master carton or mailer for parcel shipping.

Customization

Can the platform hold multiple items?

Yes. The platform panel can be die-cut with multiple custom apertures to hold a kit or assortment of products securely in place.

Materials

What board type works best for the rolled platform?

Premium virgin boards like FBB or SBS are strongly recommended. Recycled boards with lower tear resistance may crack along the multiple tight folds required to form the platform.

Closure

How does the lid stay closed without external seals?

The lid features a tuck flap with small cutouts. These cutouts slide over tongue tabs extending from the internal platform, creating a secure friction lock.

Prototyping

Should we test the platform angle before full production?

Yes. Requesting a physical sample allows you to verify that the platform angle presents your product correctly and that the board caliper supports the item's weight without sagging.
