ECMA F80.22.00.00

Three-Compartment Carton Insert

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Creates three strictly equal compartments
Unglued accordion fold requires manual insertion
Must be paired with a master carton to hold its shape

About this product

The three-compartment insert is a single, unglued strip of folding carton board that wraps into a rectangular sleeve with two internal dividing walls. Designed to slide into a master carton, it creates three equal cells to separate identical products like cosmetic bottles, pharmaceutical tubes, or retail trios.

Because it relies entirely on straight creases and accordion folds, this insert requires no gluing and produces almost zero material waste. However, its springy, unglued nature means it is typically folded and loaded by hand before being pushed into the primary package.

Common uses

Cosmetic skincare trios
Pharmaceutical tube multi-packs
Vape cartridge retail packs
Small beverage or syrup bottle kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall length

Overall width

Insert height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will go in the compartments?

Do you already have the outer box for this insert?

How will these inserts be packed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Common Multi-Pack and Kitting Uses

Retail Trio Kits

Useful for bundling three identical items, such as skincare serums or essential oils, into a single retail presentation. The dividers keep glass or rigid plastic containers from colliding during transit.

Vertical Crush Support

When inserted into a standard tuck-end carton, the multiple vertical walls of the folded insert add top-to-bottom compression strength, helping the primary package survive retail stacking.

Glass Bottle Separation

Prevents fragile glass bottles or jars from clinking together inside the master carton, reducing the risk of breakage without requiring bulky foam or plastic trays.

Cosmetic Tube Kitting

Keeps tall, narrow items like pharmaceutical ointments or cosmetic tubes standing upright and evenly spaced, improving the unboxing presentation for the end user.

Retail and Pharmaceutical Applications

Hand-Packed Fulfillment Operations

Because the accordion structure springs open if released, it is well suited for manual kitting lines where an operator can fold the insert, load the products, and slide the entire assembly into the master carton in one fluid sequence.

High-Volume Material Efficiency

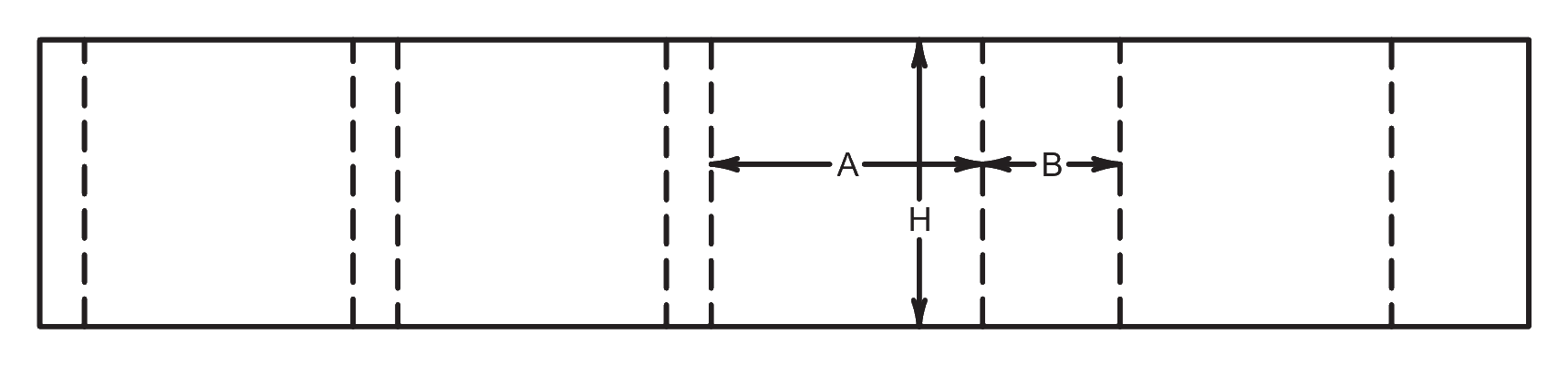

The flat blank is a simple rectangle with no interlocking tabs or glue flaps. This allows for extremely dense nesting on a die-board, making it an efficient component for large retail rollouts.

Subscription Box Assembly

Useful for subscription services that regularly feature product trios. The flat-shipping inserts take up minimal warehouse space and can be quickly erected at the packing station.

When to Consider Different Insert Styles

Mixed-Size Product Kits

This template uses strict math to divide the length into exactly three equal sections. If you are packing a large bottle alongside two smaller accessories, an uneven-compartment insert designed specifically for mixed dimensions is a better choice.

Automated Insertion Lines

The unglued, spring-tensioned fold sequence is difficult for standard pick-and-place robots to handle. If your line requires automated insert feeding, a pre-glued partition or a different retention method may be necessary.

Master Carton Fit and Board Selection

Sizing the Master Carton

The insert must be slightly smaller than the internal dimensions of your master carton to slide in smoothly. The exact clearance depends on the thickness of the board used for the insert.

Board Caliper and Folding Clearance

Thicker boards require more clearance for the internal accordion folds to bend without binding. Standard folding boxboard works well, but switching to a heavier corrugated material will require adjustments to the fold spacing.

Grain Direction for Clean Folds

To ensure the internal dividers stand straight and do not bow against the products, the board grain should run perpendicular to the vertical creases.

Choosing the Master Carton Style

This insert pairs well with standard reverse-tuck or straight-tuck end cartons. The master carton must have a secure bottom closure to prevent the heavy, concentrated weight of three products from pushing through.

Print and Presentation Options

Interior Branding

While often left unprinted, the insert can be printed on one side. Because of how the blank wraps and folds inward, that single printed side will form the visible interior walls of all three compartments.

Insert Height Modifications

The height of the insert does not have to match the master carton exactly. It can be made shorter to allow consumers to easily grasp the tops of the products for removal.

Board Grade Selection

The insert can be cut from the same board as the master carton for a unified look, or from a simpler unbleached kraft board if it serves a purely protective role.

Board and packing details

Clearance for insertion friction

The folded insert must slide into the master carton without catching. Physical testing with the exact board thickness is recommended to ensure the fit is snug but not difficult for packers to load.

Additional notes

Testing the fold tension

Because the unglued board wants to spring open, testing a physical sample helps ensure the packer can comfortably hold the loaded insert while sliding it into the master carton.

FAQs

Assembly and Packing

Can this insert be loaded by automated machinery?

Usually not. The unglued accordion folds create a springy tension that requires two hands to hold together while sliding it into the master carton. It is efficient for manual kitting but difficult for standard robotic insertion.

Product Fit

Can I adjust the middle compartment to be wider than the outer two?

No, this specific template uses a strict formula to divide the total length into exactly three equal spaces. For mixed-size products, an uneven-compartment template is the better choice.

Materials

Does this insert require glue to hold its shape?

No glue is used. The insert relies entirely on the walls of the master carton to lock the folded panels in place and prevent them from springing open.

Can I use corrugated board for this insert?

It is generally designed for thinner folding carton board. Using thicker corrugated material can cause the tight internal accordion folds to bind, requiring adjustments to the fold clearances.

Print and Finish

If I want the inside of the compartments colored, do I need two-sided printing?

No. Because of the way the flat strip folds inward on itself, printing on just one side of the flat blank will cover the visible interior walls of all three compartments.

Shipping and Route

Does this insert protect fragile items during shipping?

It prevents items from colliding with each other and adds vertical crush resistance to the master carton. However, it does not provide heavy cushioning against drop impacts on its own.

Sizing

How do I determine the right size for the master carton?

The master carton's internal dimensions must be slightly larger than the folded insert. The exact clearance needed depends on the thickness of the board used for the insert.

Delivery

How are these inserts delivered?

They are delivered completely flat. Because they are simple rectangles with no glue seams, they pack very densely on pallets.
