Product separation and kitting
Twin Product Packaging
A strong fit for separating two identical items, such as cosmetic jars, beverage bottles, and paired industrial components, preventing them from clashing during transit.
Vertical Crush Resistance
The central dividing wall acts as a vertical column, adding top-load strength to the outer carton when stacked.
Kitting and Component Separation
Useful for keeping a primary product and its accessory, such as a device and its power supply, separated within the same retail box.
Friction-Fit Inner Sleeving
Because the insert wraps the entire inner perimeter of the primary carton, it doubles the wall thickness on four sides, adding puncture resistance alongside the dividing function.
Fulfillment and retail packing
Kitting and Fulfillment
Fulfillment centers use this insert because it ships perfectly flat, takes up minimal space on the packing line, and folds quickly without the mess or curing time of adhesives.
High-Volume Retail
For high-volume retail packs, the rectangular blank means excellent material utilization and simpler die-cutting compared to complex interlocking partitions.
Fragile Goods Packing
Brands packing glass jars or bottles use this divider to prevent glass-on-glass contact without relying on bulky foam or plastic trays.
When to compare glued partitions or standalone boxes
Standalone Packaging Needs
This insert has no closure of its own and will uncoil if not constrained. If a standalone twin-pack is needed, compare it to a fully glued carton with an integrated divider.
Automated Cartoning Lines
Folding and inserting an unglued spiral is typically a manual task. If the packing line relies on high-speed robotic pick-and-place, a pre-glued collapsible partition may be a safer choice.
Outer carton fit, board choice, and packing labor
Outer Carton Dimensions
The insert must be sized to the exact inner dimensions of the primary carton. A tight fit ensures the divider stays locked in place and maintains its shape.
Board Caliper and Grain Direction

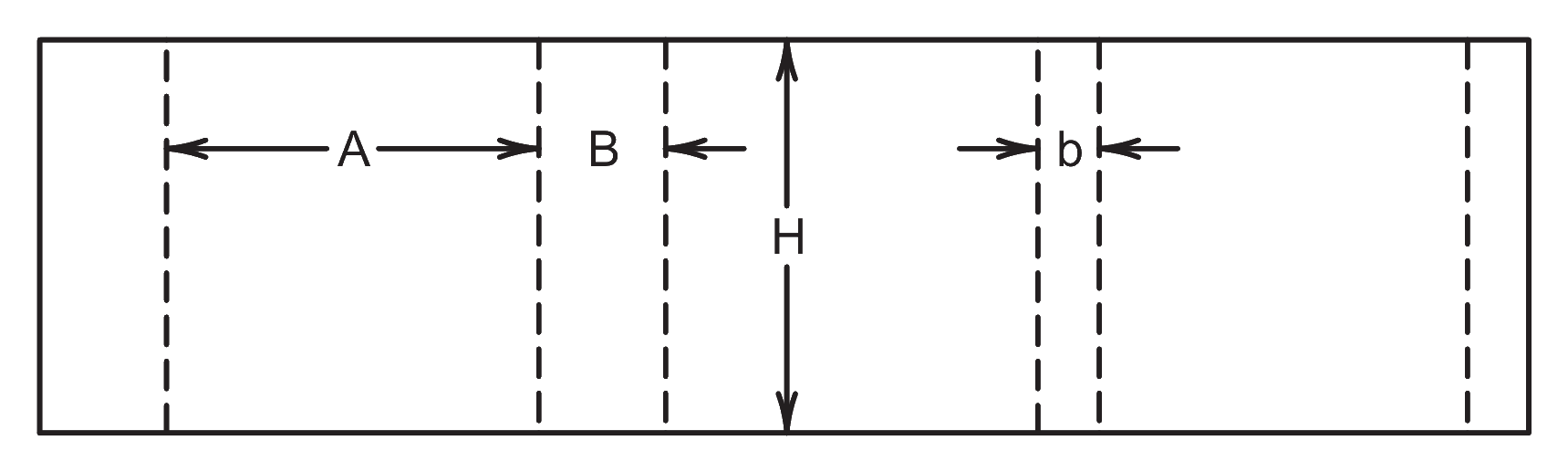

Because the material spirals inward, the inner panels must be mathematically reduced based on the board thickness to prevent bowing. The grain direction must also run parallel to the creases for clean, stress-free folds.
Product Weight and Board Grade
Standard folding boxboard is often chosen for lightweight cosmetics, while heavier items may need a thicker board, which in turn changes the folding clearances.
Assembly and Packing Labor
Since the insert is delivered flat and unglued, packing teams must account for the time needed to manually fold the spiral and slide it into the primary carton.
Board thickness and compartment adjustments
Material Selection
Standard folding boxboard is often chosen for lightweight items. Thicker corrugated board can be used for heavier protection, but the inner panel dimensions must be adjusted carefully to avoid binding.
Compartment Ratio
While this specific template creates two equal halves, the central dividing wall can be shifted to accommodate two differently sized items.
Height Adjustments
The insert does not have to match the full height of the outer carton. It can be cut shorter to leave room at the top for instruction manuals, cables, or top pads.
Board and packing details
Print and Surface Finish
Because it is an internal component, this insert is usually left unprinted. If printing is needed for a premium unboxing experience, note that different sides of the sheet will be visible in each compartment.
Compartment layout variants
Uneven Compartments
If the two items being packed are different sizes, the central divider can be shifted off-center (see F80.24.00.00).
Additional notes
Outer carton compatibility
This insert is designed to fit inside a standard rectangular folding carton. If the primary carton has tapered walls or a complex closure that intrudes into the interior space, the insert dimensions must be adjusted to avoid interference.
FAQs
Assembly and packing
Does this insert need glue or tape?
It is a friction-fit design. The operator folds the panels into a spiral and slides it into the outer carton, which holds the shape together without adhesive.
Can this be erected by automated machinery?
Folding an unglued spiral and holding it while inserting it into a box is difficult for automated cartoning equipment. It is usually packed by hand.
Product fit and standalone use
Can I use this as a standalone box?
Without an outer carton to constrain it, the folded board will naturally uncoil and lose its shape. It must be used as an internal component.
Board thickness and grain direction
What happens if I change the board thickness?
The inner panels must be slightly smaller than the outer panels to fold inside them. If you switch to a thicker board without updating the template, the central divider will bow and the insert will not fit properly.
Product fit and standalone use
Will this protect fragile items?
It prevents two items from striking each other and adds vertical strength to the outer box, but it does not provide cushioning on its own. For heavy or highly fragile goods, corrugated board or additional void fill may be needed.
Print and surface finish
Can the insert be printed?
It is often left plain to save costs. If you do print it, keep in mind that the folding sequence exposes different sides of the flat sheet in each compartment.
Board thickness and grain direction
How does grain direction affect the insert?
The paperboard grain must run parallel to the six crease lines. Incorrect grain direction will cause the folds to fight the outer carton, leading to a bowed divider and a poor fit.
Product fit and standalone use
Can the compartments be different sizes?
This specific template creates two equal compartments. If you need uneven sections for a main product and a smaller accessory, a different template is used to shift the central wall.
