ECMA F80.53.00.00

Triple-Wall Folder Insert

A tri-fold board that folds flat to triple its thickness. It is used primarily as an internal stiffener for mailers, a protective wrap for flat items, or a framing card for blister packs.

Because it has no native locks or glue seams, it relies on an outer envelope, a master carton, or an external seal to stay closed.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Folds 180 degrees twice to create a rigid 3-ply insert
  • Available with solid panels or a display window
  • Relies on an outer package or external seal to stay closed

Common uses

  • Document mailer stiffeners
  • Blister pack framing
  • Presentation folders for flat items
  • Internal carton dividers

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product and Packing Uses

Mailer and Envelope Stiffeners

Tripling the board thickness adds rigidity to document mailers or flat courier envelopes, helping to resist bending during transit.

Blister Card Framing

When configured with a window, the folder can trap a blister pack or flat product between its layers, framing the item for retail display.

Presentation Wraps

Acts as a clean, printable inner folder for corporate documents, invitations, or flat promotional items before they are inserted into an outer sleeve.

Internal Carton Dividers

When placed inside a larger master carton, the folded board acts as a rigid partition or spacer to separate heavy items and help limit shifting.

Industry and Channel Contexts

Fulfillment and Kitting

Supplied flat, these inserts take up minimal space on the packing line. Operators place the product and fold the panels inward before sliding the assembly into its outer packaging.

Retail Display

If sealed shut and punched with a hanging hole, the windowed version functions as a rigid hanging display card.

E-commerce Document Shipping

Used by photo labs, diploma printers, and certificate issuers to add rigidity to flat paper goods, helping to hold them flat during courier transit.

When to Compare Other Inserts

Closed-bottom packing

This folder has no locking tabs or glue seams. If you need an insert that stays closed on its own or holds loose items, compare pocket envelopes or locking folders.

Lighter rigidity needs

If a 3-ply board is too thick or unnecessary for your payload, a basic double-wall folder uses less material and needs only one fold.

Board and Sealing Decisions

Board Grade and Caliper

This folder relies on two 180-degree folds. Folding boxboard or solid bleached board works well. Thick corrugated board is usually a poor fit because the flutes resist folding completely flat and create hinge tension.

Grain Direction

To reduce the risk of the board cracking along the hinges, the material grain should run parallel to the two vertical creases.

Sealing Method

Decide how the folder will stay closed. It can be trapped inside a tight-fitting outer carton, sealed with a clear wafer seal, or glued shut during fulfillment.

Window Film Application

If the window needs to protect the product from dust or scratching, a clear film patch is applied over the aperture during manufacturing.

Clearance and Window Adjustments

Inner Panel Clearance

The inner folding panel is slightly narrower than the outer panels. The template calculates this clearance based on your exact board thickness so the folder lays flat without binding.

Window Sizing and Placement

If using the windowed version, the aperture can be resized and repositioned anywhere on the top panel to frame your specific product.

Hanging Hole Integration

The rectangular window can be modified into a smaller sombrero or delta punch if the folder will be sealed and hung on a retail pegboard.

Board and packing details

Flat Delivery and Storage

Because there are no glue seams, these folders ship flat, offering high pallet density and reducing inbound freight space before use.

Solid Versus Windowed Panels

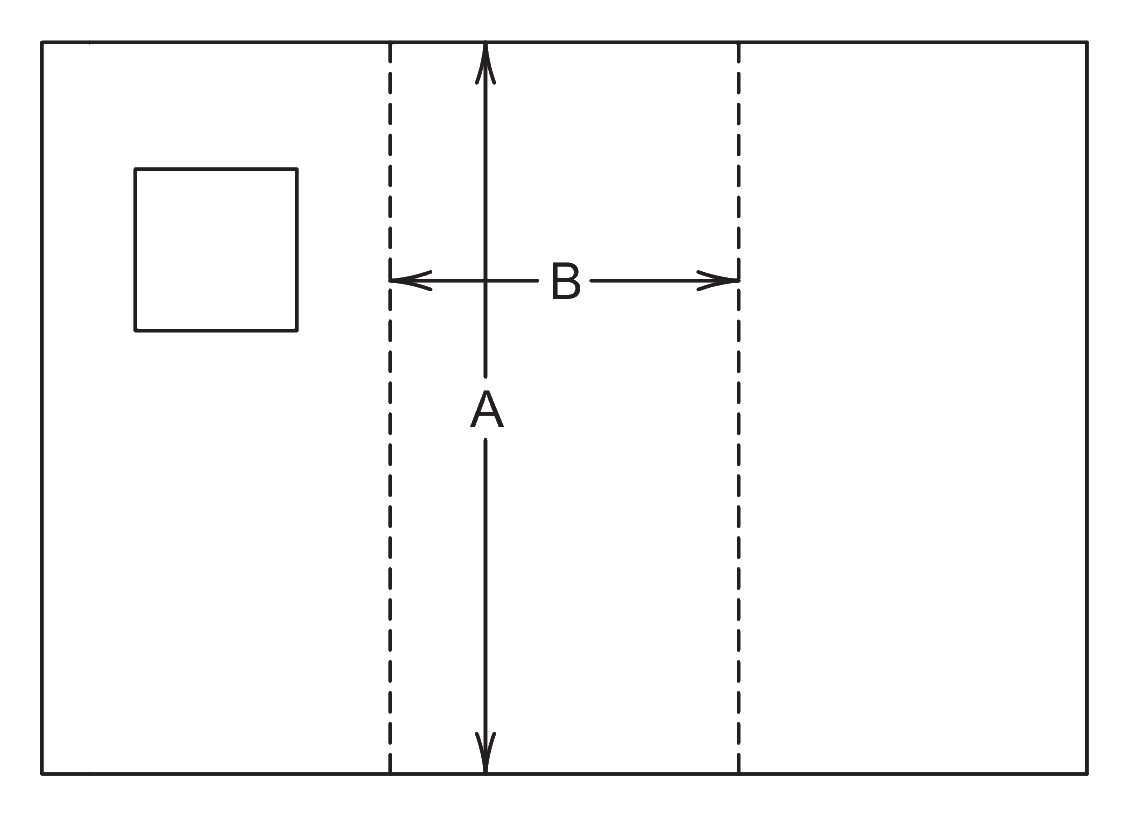

F80.53.00.00 (Windowed)

The windowed configuration features a rectangular cutout on the top panel, useful for framing products or creating a hanging display.

F80.53.00.00.a (Solid)

A variant with three solid panels, used primarily as a heavy-duty stiffener or a protective wrap where visibility is not required.

Additional notes

Print surface and presentation

When folded, the outside of the blank becomes the front and back of the folder, while the inside of the blank forms the interior framing layer.

Related Inserts and Folders

FAQs

Product Fit and Use

Can this folder hold loose items?

Because the top and bottom edges are completely open, loose items will slide out. It is designed to wrap around flat items or trap a blister pack.

Does the folder lock closed?

It has no native locks or tabs. It relies on an outer envelope, a master carton, or an external seal like a sticker or shrink wrap to stay closed.

Material and Route

Can I use corrugated board for this insert?

Thick corrugated board is usually a poor fit. The folder needs two panels to fold 180 degrees inward, and fluted board resists this tight fold. This can cause the folder to bow open unless it is held tightly by an outer box.

How is the window covered?

The template provides the open cutout. If you need a clear film window, it is applied as a separate window-patching operation during manufacturing.

Production and Packing

Is this suitable for automated packing lines?

Tri-fold inserts without glue seams are difficult to handle on automated carton erectors. They are typically folded and loaded manually.

Why is one panel narrower than the others?

The panel that folds in first is slightly narrower to account for the thickness of the board. If it were the exact same width, it would crash into the opposite hinge and keep the folder from closing flat.

Print and Presentation

Can the folder be printed on the inside?

Yes, but the artwork layout should account for the folding sequence. The inside of the flat blank becomes the interior framing layer, while the outside of the blank forms the front and back of the finished folder.

Production and Packing

How is the folder delivered?

It is delivered flat and unfolded. This maximizes pallet density and minimizes storage space until the inserts are needed on the packing line.

A simple, material-efficient way to add rigidity or frame flat products inside a primary package.
