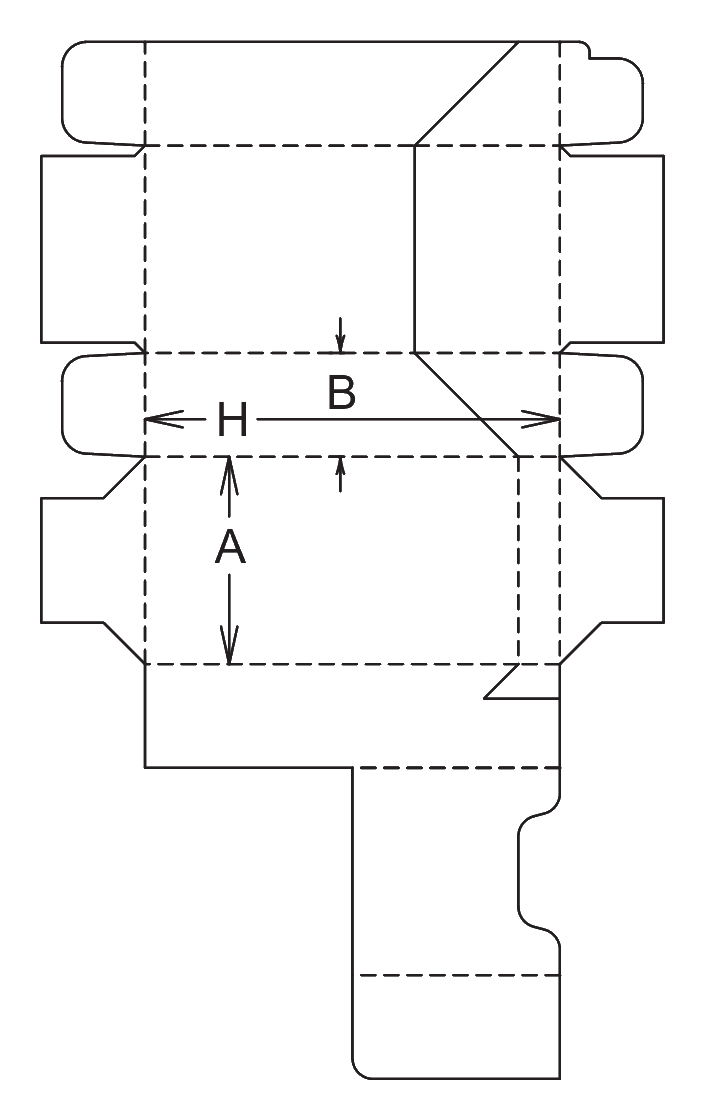

ECMA F60.15.00.00

Tuck-End Carton with Integrated Side Shoulder

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated internal shoulder for premium top-flap seating
  • Delivered flat (KDF) with the side seam and shoulder pre-glued
  • Standard tuck-flap closures at both the top and bottom

About this product

This premium folding carton features an internal side shoulder built directly into the blank, creating a clean, elevated seating surface for the top closure. Delivered flat with the shoulder pre-folded and glued along the side seam, it opens into a rectangular body with standard tuck flaps at both ends.

By integrating the shoulder into the main blank, this carton offers a more finished unboxing presentation than a standard tuck carton without the added assembly of a separate inserted collar.

Common uses

  • Cosmetics and skincare packaging
  • Premium spirits and beverage cartons
  • High-end personal electronics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail presentation and primary packaging

Premium retail presentation

The internal shoulder provides a distinct visual ledge when the top flap is opened, framing the product and giving the carton a rigid, high-end feel. It bridges the gap between a simple folding carton and a rigid two-piece box.

Eliminating separate collar inserts

Instead of ordering a base, a lid, and a separate collar piece, this carton builds the shoulder directly into the main blank. This reduces inventory complexity and eliminates the labor of assembling a separate insert.

Framing tall or slender products

The shoulder acts as a visual frame for bottles, tubes, or jars. It provides a clean stop for the top flap, preventing it from pushing too far into the carton and damaging the presentation.

Manual and semi-automated fulfillment

Because the shoulder is pre-folded by the converter, the packer simply squares the flat tube, closes the bottom flap, loads the product, and tucks the top flap. The loading process must account for the slight internal protrusion of the shoulder.

Cosmetics, spirits, and consumer goods

Cosmetics and personal care

Useful for tall bottles, tubes, or jars where the top opening experience is part of the brand presentation. The shoulder provides a clean stop for the top flap, preventing it from pushing too far into the carton.

Premium spirits and beverages

Offers a structured, display-ready opening for bottles. The double-thick side wall created by the folded shoulder adds localized rigidity to the carton body.

High-end consumer electronics

Provides a rigid, premium feel for lightweight devices and accessories. The internal shoulder can help seat a secondary product tray or manual.

When to consider hinged lids or standard cartons

Hinged-lid presentation

If the unboxing experience requires a full flip-top lid that hinges open to reveal the product, look at the F60.16 branch. This F60.15 carton uses a standard tuck flap on top, not a hinged hood.

High-speed commodity packing

If presentation is secondary to packing speed and board efficiency, a standard straight-tuck or reverse-tuck carton will use less material and offer a completely unobstructed loading opening.

Board selection and loading clearance

Board grade and grain direction

The integrated shoulder requires a 180-degree fold during manufacturing. Solid Bleached Sulfate (SBS) or Folding Box Board (FBB) are usually recommended to prevent the board from cracking along this sharp fold.

Internal clearance

The folded shoulder sits inside the carton wall. Product dimensions must be checked against the final internal clearance, ensuring the item can slide past the shoulder during loading without catching.

Coatings and finishes

Heavy varnishes or laminates should be kept away from the 180-degree shoulder fold and the side glue seam to ensure clean folding and secure adhesion.

Bottom closure security

Since the base uses a standard tuck flap, heavy items may require a clear wafer seal or a structural redesign to a crash-lock base to prevent the product from dropping through.

Adjusting the shoulder profile and access notch

Shoulder height and taper

The height of the internal shoulder and the angle of its taper can be adjusted to match the neck of a bottle or the specific presentation height of the product.

Access cutouts

The front panel typically features a thumb notch or access cut to make opening the top flap easier. The depth and shape of this cut can be modified to suit the closure friction.

Flap friction and lock types

The top and bottom tuck flaps can be modified with friction locks or slit locks to increase closure security without adding adhesive.

Board and packing details

Outer shipping requirements

This is a primary retail carton. The tuck-flap ends are not sealed for courier transit. E-commerce shipments will require a corrugated outer mailer or shipping box.

Additional notes

180-degree fold stress

The internal shoulder relies on a tight fold against the side wall. Discuss grain direction and board flexibility with your converter to avoid unsightly cracking on the premium retail face.

Related presentation cartons

F60.14.00.00: Integrated Shoulder on Base

A better choice if the presentation shoulder needs to be located at the bottom of the carton rather than the side.

FAQs

Assembly and loading

Does the packer have to fold the internal shoulder?

No. The shoulder is pre-folded and glued by the converter. The carton arrives flat, and the packer simply pops it open into a tube, just like a standard side-seam glued carton.

Will the shoulder interfere with automated loading?

It can. Because the shoulder creates a slight internal ledge, automated insertion equipment must be calibrated to clear it. Manual loading is straightforward, provided the internal dimensions account for the shoulder's thickness.

Board and finish

Can this be made from thick corrugated board?

This carton is intended for paperboard. Micro-flute corrugated is generally too thick for the 180-degree internal shoulder fold, which would cause binding and cracking.

Closure and security

Is the bottom of the carton glued?

No. Both the top and bottom use tuck-flap closures. If the product is heavy, the bottom flap may require a clear wafer seal or a structural redesign to a crash-lock base to prevent the product from dropping through.

Comparison

What is the difference between this and a flip-top box?

This carton has a standard tuck flap that slides into the top. A true flip-top or hinged-lid box has a hood that hinges backward, completely exposing the top of the product.

Structure

Does the integrated shoulder make the carton stronger?

It adds localized rigidity because the folded shoulder creates a double-thick side wall. However, it does not change the overall top-to-bottom crush resistance of the carton.

Comparison

How does this compare to a two-piece rigid box?

This is a folding carton delivered flat, making it much more space-efficient to store and cheaper to produce than a rigid setup box. It mimics the presentation of a rigid box with a collar, but uses a single piece of paperboard.

Customization

Can the shoulder height be customized?

Yes. The internal shoulder can be raised or lowered in the template to match the specific height of the product being presented.
