ECMA X44

Tear-Down Glue-Flap Reclosure for Folding Cartons

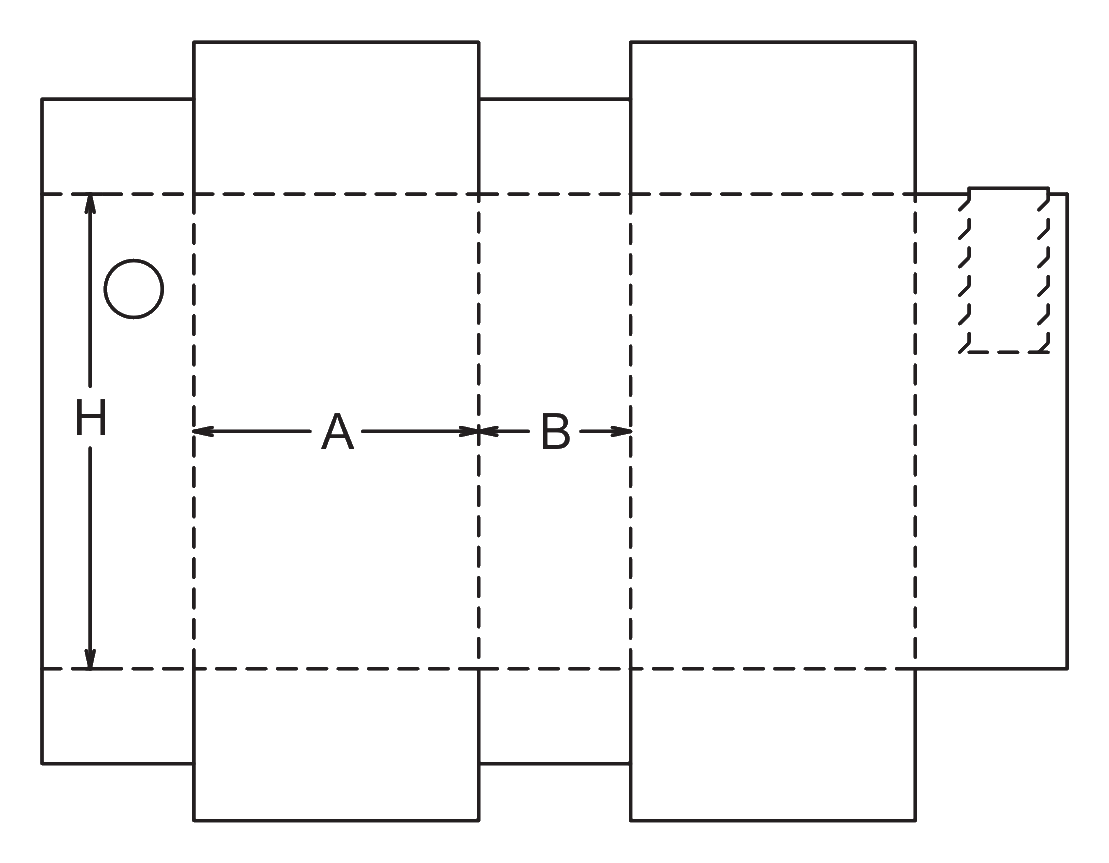

ECMA X44 specifies a reclosable flap based on an extended glue flap with a tear-down opening. It is a Group X feature used with a folding-carton design. The illustrated carton shows one side-seam version.

The feature can provide an opening and subsequent reclosure while the host carton is selected for the product and packing method.

  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Integrated mono-material tear strip
  • Visible tamper evidence for retail shelves
  • Relies on predictable board grain for clean opening

Common uses

  • Pharmaceuticals and healthcare
  • High-end confectionery
  • Small consumer electronics
  • Cosmetics

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical Uses for Integrated Tear Strips

High-Security Retail Packaging

When a product benefits from showing it has not been opened before purchase, the integrated tear strip provides immediate visual evidence. Once the perforated tab is pulled, the original seal is permanently broken.

Frustration-Free Unboxing

For consumer goods, cosmetics, and electronics, the built-in finger hole and guided tear path allow the buyer to open the package smoothly without searching for a tool or damaging the inner contents.

Plastic-Reduction Initiatives

Brands moving away from shrink wrap or applied plastic tear tapes can use this mono-material feature to maintain security while simplifying the recycling stream.

Multi-Serving Product Storage

Because the top flap can often be tucked back in after the side seal is broken, this style works well for products that are consumed over time rather than all at once.

Retail and Consumer Contexts

Pharmaceuticals and Healthcare

Over-the-counter medications and health products often use tamper-evident features. This carton provides that security natively, without relying on secondary shrink bands or plastic seals.

Premium Confectionery

High-end chocolates and sweets benefit from a clean, deliberate opening motion. The mono-material tear strip maintains a premium feel and leaves a neat edge for tucking the lid back in.

Small Consumer Electronics

High-value electronics accessories often need shelf security. The integrated tear strip deters casual opening in-store while providing a clean unboxing experience at home.

When to Consider Standard or Sideward-Tear Cartons

When simple access is enough

If the product does not need tamper evidence or a sealed closure, a standard straight tuck or reverse tuck carton is simpler to produce and allows the user to open and close the box repeatedly without altering its appearance.

When using highly recycled board

If your sustainability goals rely on 100% recycled cartonboard with short fibers, an integrated tear strip may tear unpredictably. In these cases, a standard carton with an applied tamper-evident label may be more reliable.

Board Choice and Tear Performance

Board Grade and Fiber Length

The success of the tear strip depends heavily on the paperboard. Virgin fiber boards, such as Folding Boxboard (FBB) or Solid Bleached Board (SBB), provide the long fibers necessary for a straight, clean tear. Short-fiber recycled boards can cause the tear to wander off the perforation line.

Grain Direction

To ensure the strip pulls down smoothly, the board's grain direction should run parallel to the tear path. This is a critical detail during the layout and die-cutting planning phase.

Print and Varnish Clearances

The extended glue flap that houses the tear mechanism bonds to the mating panel. This means keeping the glue zones free of ink, varnish, and laminations so the structural seal holds while the center strip tears away.

Adhesive Application

The carton relies on precise adhesive application on a straight-line folder-gluer. The glue bonds the structural edges of the extended flap without adhering to the tear strip itself, ensuring it pulls away freely.

Adjusting the Pull Tab and Opening

Finger Hole Sizing

The circular pull hole at the top of the tear strip can be sized to accommodate different finger clearances or aesthetic preferences, provided it remains within the width of the extended glue flap.

Perforation Ratios

The cut-to-tie ratio of the perforations is adjusted based on the specific board thickness and grade. This balances the strength needed to keep the carton sealed during transit with the ease of tearing required by the consumer.

Tear Strip Width

The width of the tear strip itself can be adjusted by changing the distance between the parallel perforation lines, depending on the overall size of the carton and the desired opening feel.

Board and packing details

Reclosure After Opening

While the tear strip permanently breaks the side seal, the remaining structure typically allows the top flap to be tucked back into the carton for basic storage. This is useful for multi-serving products.

Additional notes

Board grain alignment

The structural design aligns the board's machine direction (grain) with the vertical tear path. This natural fiber alignment acts as a guide, helping the tear strip pull straight down without tearing into the main display panels.

FAQs

Material and Performance

Can this tear strip be used with any paperboard?

Integrated tear strips perform best on virgin fiber boards like FBB or SBB. Recycled boards with short fibers can cause the tear to wander or snag instead of following the perforations cleanly.

Does this design use plastic tear tape?

No. The X44 uses a mono-material approach. The tear strip is created entirely by perforating the carton's own extended glue flap, making the entire package easier to recycle in standard paper streams.

Production and Route

How does the tear strip affect the gluing process?

The carton relies on precise adhesive application on a straight-line folder-gluer. The glue bonds the structural edges of the extended flap without adhering to the tear strip itself, ensuring it pulls away freely.

Product Fit

Is this carton considered child-resistant?

While it provides clear tamper evidence, an integrated tear strip is designed for easy consumer access and is not inherently child-resistant. Regulated products will still need certified child-resistant primary packaging.

Samples and Testing

Can a digital sample prove the tear performance?

Digital cutting tables can simulate the fold, but they often struggle to replicate the exact perforation rules used in full production. Physical testing with the actual board grade and production-style perforations is strongly recommended before a full run.

Product Fit

Can the carton be closed again after the strip is removed?

Once the side seal is broken and the top is opened, the top flap can usually be tucked back into the main body of the carton to keep the remaining contents contained.

Material and Performance

Why does grain direction matter for this carton?

The structural design aligns the board's machine direction (grain) with the vertical tear path. This natural fiber alignment acts as a guide, helping the tear strip pull straight down without tearing into the main display panels.

Production and Route

Does the extended glue flap affect how the carton is packed?

The carton erects and loads like a standard tubular carton. However, automated cartoning lines should be checked to ensure the extended glue flap does not interfere with vacuum cups or opening blades.

A well-executed tear strip balances retail security with consumer convenience. Review your board preferences and product access needs to ensure a clean, reliable opening experience.
