ECMA X45

Sideways-Tear Glue-Flap Reclosure for Folding Cartons

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated side pour spout for granular products
  • Fills and closes like a standard tubular carton
  • Requires zoned gluing on the manufacturer's joint

About this product

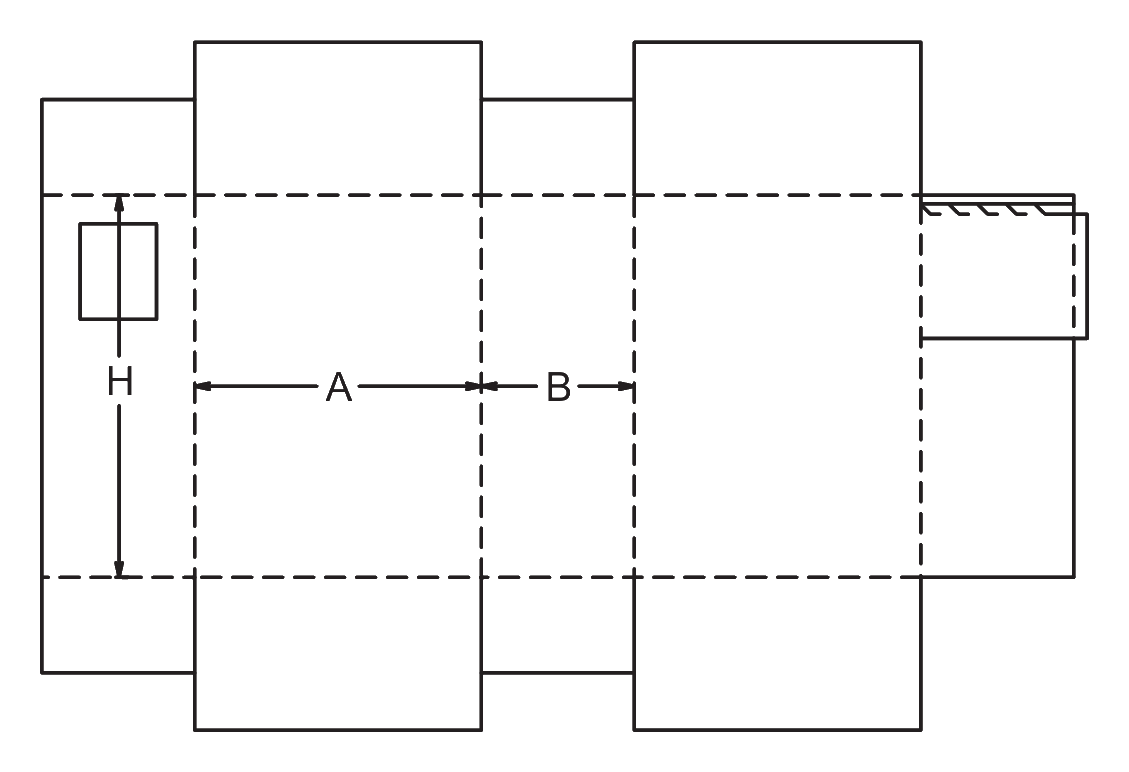

ECMA X45 specifies a reclosable flap based on an extended glue flap with a sideways tear. It is a Group X feature used with a folding-carton design. The illustrated carton shows one side-seam version.

The feature can provide an opening and subsequent reclosure while the host carton is selected for the product and packing method.

Common uses

  • Confectionery
  • Cough drops
  • Hardware (screws/nails)
  • Pet treats

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Products That Fit the Side-Dispensing Door

Confectionery and lozenges

Provides controlled pouring for small, solid items like candies or cough drops, allowing the consumer to take a few pieces and reclose the box.

Small hardware and fasteners

Keeps screws, nails, or small parts contained on a workbench while offering easy side access without opening the main carton flaps.

Pet treats and granular goods

Offers a convenient, reclosable storage format for dry goods that are poured out in small quantities over time.

Household cleaning granules

Provides a controlled pour for dishwasher powders, laundry boosters, or garden supplements, keeping the main carton sealed against moisture.

Retail and Consumer Dispensing

Retail shelf presence

The carton maintains a clean, unbroken profile on the shelf before opening. The tear strip provides clear tamper evidence for the initial purchase.

Multi-serving consumer products

For goods consumed over weeks or months, the side door allows repeated access without wearing out the primary top or bottom tuck flaps.

Workbench and garage storage

Allows users to dispense small parts or fasteners while the carton remains stacked or slotted into a tight shelf space, as top clearance is not required.

When to Consider a Different Pour Feature

Fine powders and sift risks

This door relies on a friction fit against the torn edges. It is not sift-proof. Fine powders will leak, making a sealed inner pouch or a different spout style a better choice.

Heavy bulk items

Dense, heavy products shifting during transit place outward pressure on the side perforation. If the payload is heavy, the tear strip strength must be carefully balanced against the board's tear resistance, or a different closure may be needed.

Board, Gluing, and Tear Strip Planning

Zoned gluing capability

The converter must be able to apply adhesive only to the lower section of the glue flap, below the tear strip. If glue is applied continuously, the door will be sealed shut.

Grain direction

For a clean, straight opening, the board's grain direction should run parallel to the horizontal tear strip.

Coatings and laminations

Heavy film laminations applied over the tear strip area can prevent the perforation from breaking cleanly. Surface finishes should be discussed early in the project.

Perforation strength and board weight

The cut-to-tie ratio of the tear strip must be matched to the board grade. If the ties are too strong, the board delaminates; if they are too weak, the door opens prematurely during packing or transit.

Tuning the Dispensing Hole and Door

Dispensing hole size

The internal rectangular cutout can be sized to match the product diameter, controlling how fast the items pour out.

Tear strip placement

Moving the tear strip vertically changes the ratio of the glued base to the opening door, which affects both the size of the access window and the strength of the carton's side seam.

Dispensing window shape

While typically rectangular, the internal cutout can be adjusted in height and width to control the flow rate of the specific product being poured.

Board and packing details

Filling line behavior

Because the dispensing feature is pre-glued by the converter, the carton erects and fills on standard automated cartoning lines just like a normal tubular carton.

Tear Direction Variants

Downward tear (X44)

A variant where the tear strip is oriented to pull downward rather than sideways, changing the consumer's opening motion.

Additional notes

Zoned gluing requirement

The folder-gluer must accurately apply adhesive only to the lower section of the glue flap. Continuous glue lines will ruin the dispensing feature.

Related Dispensing Cartons

X48: Dust flap opening

An opening mechanism that relies on the top or bottom dust flaps rather than modifying the side glue seam.

FAQs

Production and Packing

Does this require special equipment to pack?

No. The special zoned gluing happens at the converter stage. Once delivered flat, the carton erects, fills, and closes on standard automated cartoning lines just like a normal box.

Product Fit

Is the dispensing door sift-proof?

No. The door covers an open cutout and relies on a friction fit. Fine powders will leak. It is best suited for granules, pills, hardware, or individually wrapped pieces.

Print and Finish

Can we use a heavily laminated board?

Film laminations can interfere with the tear strip, making it difficult for the consumer to open the door cleanly. If a lamination is required, the perforation profile must be physically tested.

Product Fit

Does the tear strip provide tamper evidence?

Yes, for the initial opening. Once the strip is removed, the door can be reclosed, but it will be obvious that the carton has been opened.

How does the door stay closed after opening?

It relies on a friction fit against the torn edges and the board's natural memory at the hinge crease.

Shipping and Route

How does the tear strip handle direct-to-consumer shipping?

The exposed perforation can catch or tear if shipped loose in mixed courier networks. For direct-to-consumer delivery, an outer shipper or mailer is usually necessary to protect the dispensing feature.

Product Fit

Can the dispensing window be adjusted for different products?

Yes. The internal cutout can be resized in height and width to match the diameter of the product, controlling how quickly items pour out.

Does the side cutout affect stacking strength?

The cutout and perforation slightly reduce the vertical compression strength of that specific side panel. For heavy pallets, this should be tested alongside the board grade.
