ECMA X48

Outfolded Dust-Flap Reclosure for Folding Cartons

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated pour spout for controlled dispensing
  • Tuck-tongue and slit lock for secure reclosure
  • Flexible board helps prevent hinge cracking

About this product

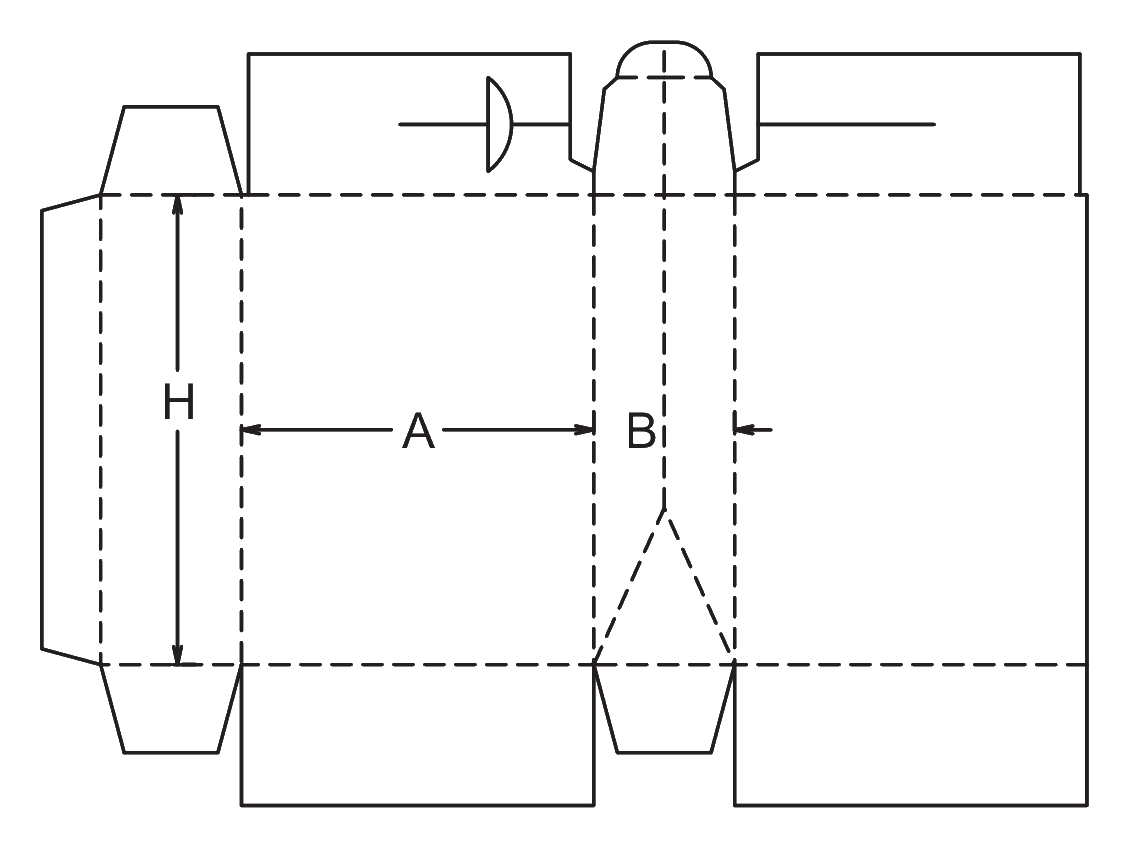

ECMA X48 specifies a reclosable opening using an outfolded dust flap. It is a Group X feature used with a folding-carton design. The illustrated carton shows one pour-out version.

The host carton and product format determine how the opening is integrated and whether other protection is needed.

Common uses

  • Cereal
  • Rice
  • Powder detergent
  • Small candies
  • Pet food kibble

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Dispensing Dry and Granular Products

Dry foods and granular goods

The outfolding dust flap creates a natural spout, making this useful for cereal, rice, grains, small candies, and pet kibble. The user can pour a controlled amount and easily reclose the top.

Powdered household products

Frequently used for powder detergents and cleaning agents. For very fine powders, an inner sealed bag is usually recommended to prevent sifting through the folded corners during transit.

Lawn and garden supplies

Useful for grass seed, fertilizer granules, and bird seed. The spout allows users to pour the product directly into spreaders or feeders without needing a separate scoop.

Pet care products

Often chosen for cat litter, small animal bedding, and fish food pellets. The reclosable top keeps the product contained between daily or weekly uses.

Retail Shelf Storage and Repeated Use

Multi-use retail products

Products that are consumed over weeks or months benefit from the secure tuck-and-slit reclosure. The tongue friction-fits into the curved slit, keeping the top closed even if the carton is knocked over on a pantry shelf.

Controlled dispensing tasks

When the user needs to pour a specific amount of product without a scoop, the spout provides a directed flow. The size of the opening can be adjusted to match the particle size of the contents.

Moisture-sensitive dry goods

When paired with an inner sealed bag, this carton provides a rigid outer structure for shelf display while the bag protects the contents from humidity. The spout helps guide the bag opening during pouring.

When to Choose a Standard Tuck or Tear Strip

Fine powders without an inner bag

If you are packing very fine powders directly into the carton, the folded corners of a spout closure may allow sifting. A fully sealed top or a bag-in-box setup may be a better option.

Single-use or tamper-evident needs

The tuck tongue can be opened without leaving a trace. If tamper evidence is a priority, compare this with a tear-strip closure or plan to add an external tamper label.

Board Flexibility, Inner Bags, and Base Carton Fit

Board flexibility and cracking risk

The pour spout relies on a diagonal crease that hinges outward. The chosen board should be flexible enough to withstand repeated opening and closing without cracking the top liner or coating.

Base carton selection

The pour spout and tuck lock are top-closure features. They are usually applied to a basic straight-line glued carton, but the bottom closure can be a simple tuck, crash-lock, or seal-end depending on your packing line.

Inner bag needs

Decide early if your product needs a primary inner bag for moisture protection or sift-proofing. The carton dimensions should account for the volume of the filled bag, not just the raw product.

Spout aperture sizing

The size of the pour opening should match the physical characteristics of the product. Large kibble benefits from a wider spout angle, while fine grains flow better through a narrower opening.

Spout Geometry and Lock Friction

Spout angle and size

The height and angle of the diagonal crease can be adjusted to create a larger or smaller pouring aperture, depending on the size of the granular product being dispensed.

Tuck tongue and slit width

The width of the locking tongue and the corresponding curved slit can be modified to increase or decrease the opening friction, balancing security with ease of use.

Slit vertical placement

The position of the curved slit on the inner flap can be shifted slightly to adjust how tightly the outer top flap pulls down when closed.

Board and packing details

Print placement around the spout

Heavy ink coverage or thick varnishes over the diagonal spout crease can increase the risk of cracking. It is often best to keep this specific hinge area lightly printed or unvarnished.

Automated cartoning compatibility

This closure is often run on automated cartoning lines. The inner flap folds first, followed by the outer flap, and the tongue is mechanically tucked into the slit.

Base Carton Integration

Crash-lock bottom integration

While often paired with a basic tuck bottom, the spout top can be combined with a crash-lock base for faster manual erection.

Additional notes

Dispensing large items

If the product pieces are too large, they may jam in the triangular spout opening. The spout geometry can be adjusted, but very large items are better suited to a full top-opening carton.

Related Reclosable Cartons

A20: Tuck-In Carton Family

A simpler tuck-in family without the pour-out opening, useful when the product does not need to be poured directly from the box.

FAQs

Product Fit & Inserts

Does this carton prevent fine powders from leaking?

Not on its own. While the dust flaps provide good coverage, very fine powders can sift through the corners during transit. An inner sealed bag is recommended for fine powders.

Board & Finish

Why is board choice critical for the pour spout?

The spout functions by inverting a diagonally creased dust flap. If the board is too rigid or brittle, this crease can crack after being opened and closed a few times, ruining the appearance and function.

Route & Shipping

Can this carton be shipped directly in the mail?

No. The tuck-tongue closure is built for retail shelves and pantry storage. The top flap may open during rough parcel transit, so an outer shipping box is recommended for courier delivery.

Production & Packing

Can the spout be added to any box style?

It is an auxiliary feature that fits best on rectangular folding cartons. The base carton uses a straight-line side seam and basic top flaps to accommodate the spout geometry.

Print & Finish

Can I print instructions on the spout itself?

Yes, the inner dust flap that forms the spout is often printed with "Lift Here" or pouring instructions, though heavy varnishes on the crease itself should be avoided.

Samples & Prototypes

What should I test with a physical sample?

You should test the pouring action with your actual product to ensure the spout is the right size, and cycle the tuck tongue multiple times to check the board's resistance to cracking.

Closure & Retention

How does the tuck tongue stay secure after multiple uses?

The tongue inserts into a curved slit on the inner flap. This curve creates friction against the sides of the tongue, holding it in place even after the carton has been opened several times.

Production & Packing

Does the spout need special packing equipment?

The top closure folds similarly to a standard tuck top. The inner flap folds down, the outer flap folds over, and the tongue is tucked in. Standard automated cartoning lines can usually handle this sequence.
