ECMA X72

Double-Folded Display Panel for Folding Cartons

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-thick side panel for rigid retail display
  • Coated printing surface on both sides of the extension
  • Pre-glued by the converter for standard manual erection

About this product

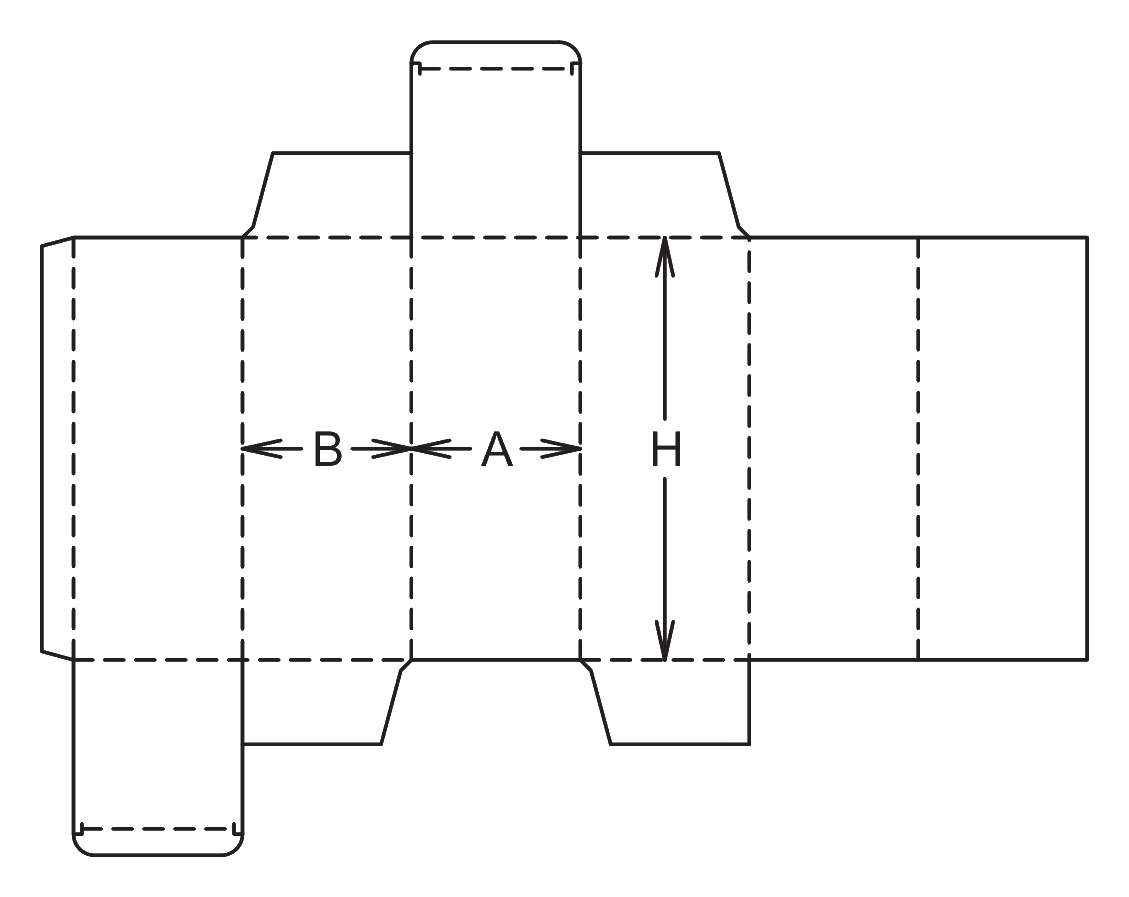

ECMA X72 specifies an extended panel that is double, folded over, and glued. It is a Group X feature used with a folding-carton design. The illustrated reverse-tuck carton is one host for the panel.

The host carton and display requirement determine how the panel is used in the finished package.

Common uses

  • Retail products requiring extensive instructional graphics.
  • Small items that need a larger physical presence on the shelf to deter theft.
  • Products intended for pegboard display alongside shelf-standing units.
  • Multi-language packaging.
