ECMA X81

Two-Main-Flap Carrying Handle for Folding Cartons

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in double-thick handle for consumer convenience
Suited for retail carry-out, events, and promotional kits
Handle strength depends on board choice and product weight

About this product

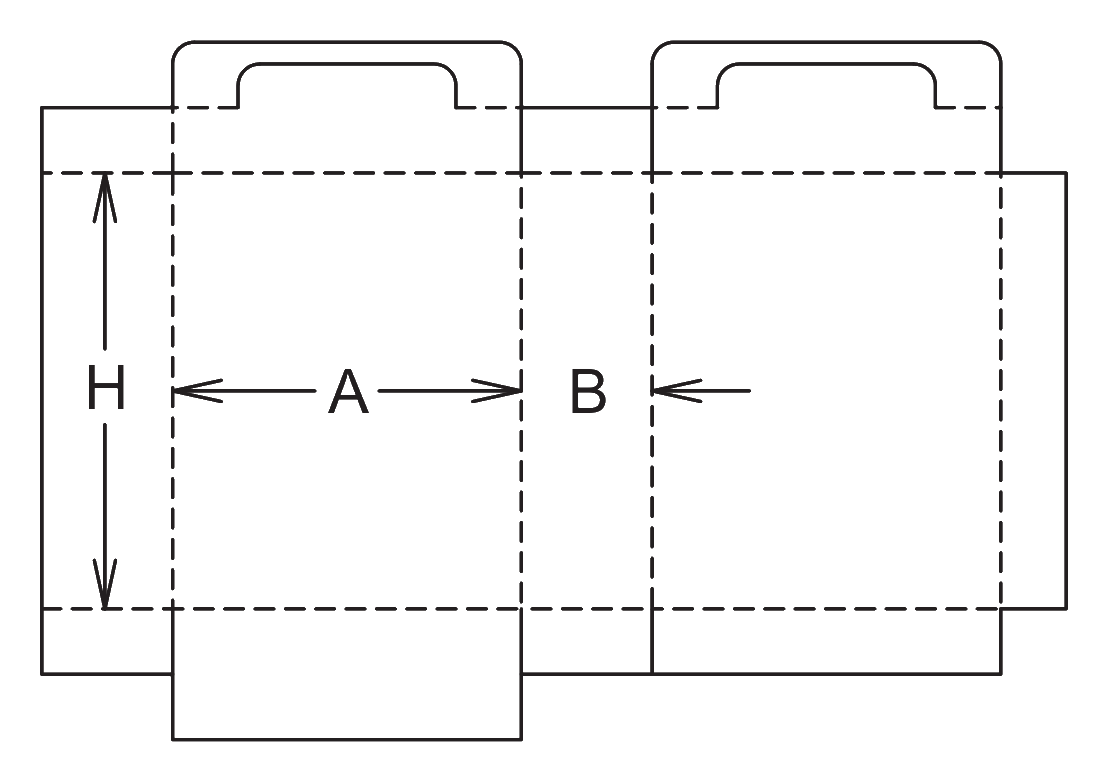

ECMA X81 specifies a carrying handle formed from the two main flaps. It is a Group X feature used with a folding-carton design. The illustrated carry carton is one host for the handle.

The host carton and intended carry load should be considered together for the finished package.

Common uses

Fast food and bakery carry-out
Promotional kits and event swag
Lightweight retail multi-packs
Boutique apparel or cosmetics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy are the items going inside?

How quickly do these need to be assembled?

How do you plan to keep the handle halves together?

What base carton style should use this feature?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Applications

Retail Carry-Out and Food Service

Useful for bakeries, fast food, and boutique retail where customers carry the product directly out of the store. The integrated handle provides immediate convenience and keeps the brand visible during transit.

Promotional Kits and Event Swag

Often used for influencer kits, trade show materials, or onboarding packages. The handle invites interaction and makes the box easy to carry around an event floor.

Lightweight Multi-Packs

Groups smaller retail items into a single, easy-to-carry unit. This works well for cosmetics, specialty beverages, or gift sets where presentation matters.

Apparel and Boutique Goods

Serves as an alternative to a separate shopping bag for clothing or accessories, combining the primary package and the carrying method into one piece.

Who Uses the Integrated Handle Box

Store-Floor Assembly

When retail staff need to pack items quickly while the customer waits, this box is often paired with a fast-erecting bottom. The worker opens the tube, loads the goods, and folds the top handle together.

Brand Managers and Marketers

The extended handle flaps offer a unique, upright printable area that remains visible while the box is being carried, maximizing brand exposure outside the store.

Event Coordinators

For conferences or corporate events, a handle box allows attendees to easily transport materials without needing an extra tote bag, streamlining the distribution process.

When to Consider Alternative Box Styles

Parcel Shipping and Courier Networks

The protruding handle is vulnerable in a mixed courier network. If the box will be shipped individually via parcel, consider a standard straight tuck carton or a mailer box instead, or plan to place this carry box inside an outer shipping box.

Dense Palletization

Because the handle prevents erected cartons from stacking directly on top of one another, this style changes how pre-packed goods fit on pallets. If pallet density is a priority, a recessed handle style may be a better fit.

Key Decisions for Fit and Performance

Bottom closure and packing speed

The top handle mechanism can be paired with almost any bottom closure. Choose a fast-erecting bottom for quick manual assembly, or a simple tuck bottom for lighter items.

Board grade and handle tear resistance

The weight of the package is borne by the handle cutouts. For heavier items, a board grade with high tear resistance helps prevent the handle from ripping during transport.

Securing the handle flaps

The two handle flaps naturally meet face-to-face. Depending on the board's memory and the product weight, adding a custom tab or a branded sticker helps keep the two halves held tightly together.

Master shipper planning

Since the erected boxes do not stack flat, plan how they will be grouped for bulk transit to the retail location. They are typically shipped flat to the store and assembled on demand.

Customizing the Handle and Profile

Finger hole clearance and handle height

The size and shape of the finger cutouts can be adjusted for comfort. Increasing the amount of material above the hole can also improve tear strength for heavier payloads.

Roof panel pitch and internal clearance

While the standard design features flat, 90-degree roof panels, the template can be modified to create a pitched or gable-top appearance, depending on visual preference and internal clearance needs.

Handle interlocking tabs

Small locking tabs can be added to the handle flaps, allowing them to interlock and stay together without requiring a separate adhesive sticker.

Board and packing details

Material layout considerations

The tall handle flaps increase the overall size of the unfolded material. This changes how the cartons nest on a sheet of paperboard during production, which is a factor when comparing this style to a standard tuck-end box of the same volume.

Additional notes

Handle tear strength and board testing

Physical testing with the actual product weight is the best way to confirm the board choice is strong enough, as stress concentrates at the corners of the finger holes.

Bottom closure choice and packing labor

Because the top handle requires manual folding and alignment, pairing this box with a fast-erecting bottom helps keep overall packing labor low for retail staff.

FAQs

Shipping and Handling

Can I ship this box through the mail?

Not on its own. The protruding handle can catch on sorting equipment during transit. To ship this box through a courier network, it should be placed inside an outer shipping box.

Product Fit and Weight

How much weight can the handle support?

This depends on the board grade chosen. Standard paperboard is suitable for lightweight items like pastries or cosmetics. For heavier kits, testing a tear-resistant board helps ensure the handle cutouts perform well.

Assembly

How is the top handle secured?

The operator folds the two roof panels inward, bringing the two handle flaps face-to-face. While they can simply be pinched together by the consumer, many brands add a custom interlocking tab or a branded sticker to keep them joined.

Customization

Can the shape of the handle be changed?

Yes. The finger hole dimensions, the curve of the handle, and the amount of material above the grip can all be adjusted to improve comfort, increase strength, or match a specific aesthetic.

Related Options

Is there a version of this box that can be stacked?

Yes. If you need a handle but also need to stack the boxes on a shelf or pallet, a recessed handle design (like the ECMA X82) allows the handle to sit below the top edge of the carton.

Production

How are these boxes delivered?

They are delivered flat with the side seam glued. The retail staff or fulfillment team pops them open, closes the bottom, and folds the top handle after loading.

Print and Branding

Can the handle flaps be printed on both sides?

Yes, but because the two flaps meet face-to-face, only the outward-facing sides are visible when the handle is closed. The interior sides can be printed if the box will be opened and displayed.

Storage

Do these boxes take up a lot of space before use?

No, they are shipped and stored completely flat. They only take up their full volume once erected for packing.
