ECMA X82

Recessed-Top Carrying Handle for Folding Cartons

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Built-in handle for retail carry-away
  • Recessed top deck helps secure products from shifting
  • Manual assembly with a snap-lock bottom

About this product

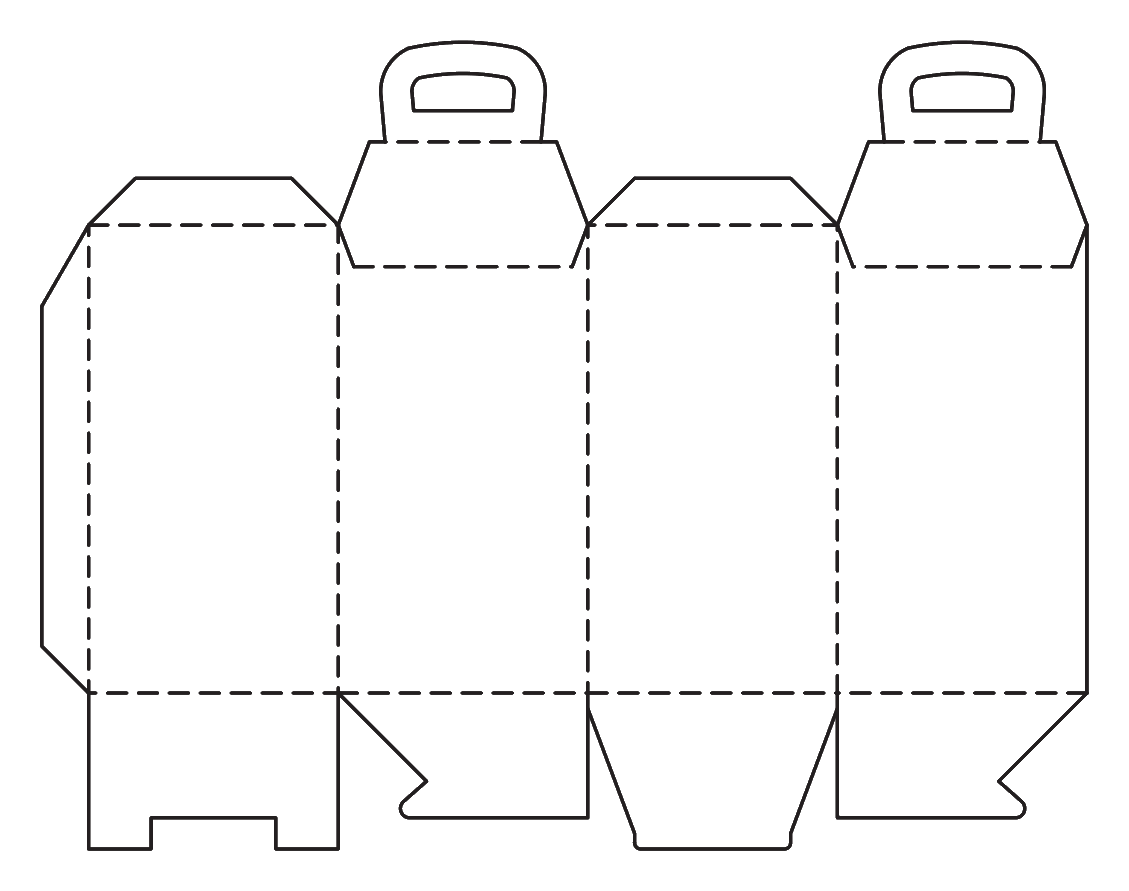

ECMA X82 specifies a carrying handle formed from the two main flaps with a recessed top. It is a Group X feature used with a folding-carton design. The illustrated carton is one host for the handle.

The host carton and intended carry load should be considered together for the finished package.

Common uses

  • Craft beverage multi-packs
  • Cosmetic gift sets
  • Promotional kits
  • Retail items needing a carry handle

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Promotional Applications

Gift Packs and Promotional Kits

The recessed top creates a sloped presentation that elevates the unboxing experience. The integrated handle makes it easy to hand out at events or sell as a ready-to-gift item on retail shelves.

Beverage and Heavy Retail Items

When produced with the appropriate board grade, the interlocking top handle and snap-lock bottom can support substantial weight, making it a strong choice for craft beer multi-packs, wine sets, or heavy cosmetic jars.

Cosmetic and Personal Care Sets

The recessed top provides a premium look for multi-item kits, while the handle encourages immediate consumer carry-away from the beauty counter.

Specialty Food and Confectionery

For retail shelf displays where consumers pick up and carry the product directly, the built-in handle reduces the need for secondary bagging.

Who Uses the Recessed Top Handle Box?

Retail Brands and Point-of-Sale

Brands use this carton to reduce reliance on secondary shopping bags. The handle encourages immediate consumer carry-away, while the tall, flat main panels provide excellent billboard space for graphics.

Event Marketing and Corporate Gifting

The built-in handle makes it easy to distribute kits at trade shows or corporate events, providing a self-contained package that attendees can comfortably carry.

Boutique Beverage Producers

Craft breweries or wineries looking for a distinctive multi-pack presentation often choose this style for its combination of carrying convenience and premium shelf appeal.

When to Consider a Different Handle Style

High-Speed Automated Packing

The complex top fold and snap-lock bottom usually involve manual assembly. If your packing line relies on automated cartoning equipment, a standard tuck carton or a specialized machine-erected wrap-around style may be a better fit.

Direct Parcel Shipping

Protruding handles are easily crushed or snagged in courier networks. If this package is being shipped directly to a consumer via parcel, it often needs to be placed inside a protective outer corrugated box.

Key Decisions for Handle Boxes

Board Grade and Tear Strength

The entire weight of the product is suspended from the die-cut handle. The board material needs sufficient tensile and tear strength to prevent the handle from failing when lifted. Matching the board caliper to your target payload is an important early step.

Bottom Closure Speed

The standard snap-lock (1-2-3) bottom is secure but involves a brief manual folding sequence. For higher-volume hand-packing operations, upgrading to a crash-lock (auto-bottom) can noticeably speed up assembly.

Print Surface and Recess Visibility

The inward-folding top flaps expose the reverse side of the board. If you are using a material with an unbleached or grey back, this will be visible from certain angles, which may prompt a discussion about two-sided printing or coating.

Handle Ergonomics and Product Weight

Balancing the handle aperture size with the structural integrity needed to lift the target payload is an important detail. A larger opening provides more finger clearance but leaves less board material to support the weight.

Structural Adjustments

Handle Ergonomics and Clearance

The height and width of the handle aperture can be adjusted. It is important to check that there is enough finger clearance for comfortable carrying, especially for heavier products.

Recess Depth and Taper Angle

The depth of the recessed deck can be modified. A deeper recess provides more top-down product retention but consumes more internal volume, meaning a taller overall carton is needed to fit the same product.

Base Closure Style

While the standard template uses a snap-lock bottom, it can often be adapted to a crash-lock base for faster manual packing, depending on the board grade and production equipment.

Board and packing details

Inside Print Visibility

Because the narrow top flaps fold inward and downward to create the recess, the unprinted inside of the board may be visible from certain angles. If this impacts the presentation, consider double-sided coating or reverse printing.

Related Retail Packaging

X83: Side-Flap Handle Box

The handle is formed by the narrower side flaps rather than the wide main panels, rotating the grip orientation 90 degrees.

FAQs

Product Fit and Strength

How much weight can the handle support?

Weight capacity depends on the chosen board grade and the grain direction of the paperboard. Heavy items like glass bottles often need a thicker folding boxboard or a micro-flute corrugated material to prevent the handle from tearing.

Assembly and Packing

Does this box need tape or glue to assemble?

The side seam is glued by the converter before delivery. The bottom uses a friction-fit snap lock, and the top handle panels interlock mechanically. No tape or additional glue is needed for assembly, though clear wafer seals are sometimes added to the top for tamper evidence.

Can the bottom closure be made faster to pack?

While the standard template uses a snap-lock bottom, it can often be upgraded to a crash-lock (auto-bottom) design. This allows the base to pop into place when the carton is opened, saving time during high-volume hand packing.

Shipping and Route

Can I ship this box through the mail?

Protruding handles and recessed tops are vulnerable to snagging and crushing in courier networks. If shipping directly to consumers, an outer corrugated box is usually recommended.

Print and Finish

Will the inside of the box be visible?

Partially. The recessed top is formed by flaps that fold inward, exposing the reverse side of the board. If you are using a board with a brown or grey back, it will show unless you specify inside printing.

Modifications

Can the handle shape be customized?

The die-cut handle aperture can be adjusted for different finger clearances or shaped to match a brand aesthetic, provided the remaining board has enough structural integrity to lift the product.

Shipping and Route

Can the handle be folded flat for shipping?

The handle panels stand upright when the box is assembled. The entire carton is delivered flat, but once erected and closed, the handle remains exposed.

Product Fit and Strength

What happens if the product shifts upward during transit?

The recessed top deck acts as a physical barrier, helping to keep the contents seated in the base. The depth of this recess can be adjusted based on the product's height.
