Product details

Top highlights

  • Integrated double-thick carrying handle
  • Snap-lock (1-2-3) bottom for quick manual setup
  • Usually paired with an outer shipper for parcel transit

About this product

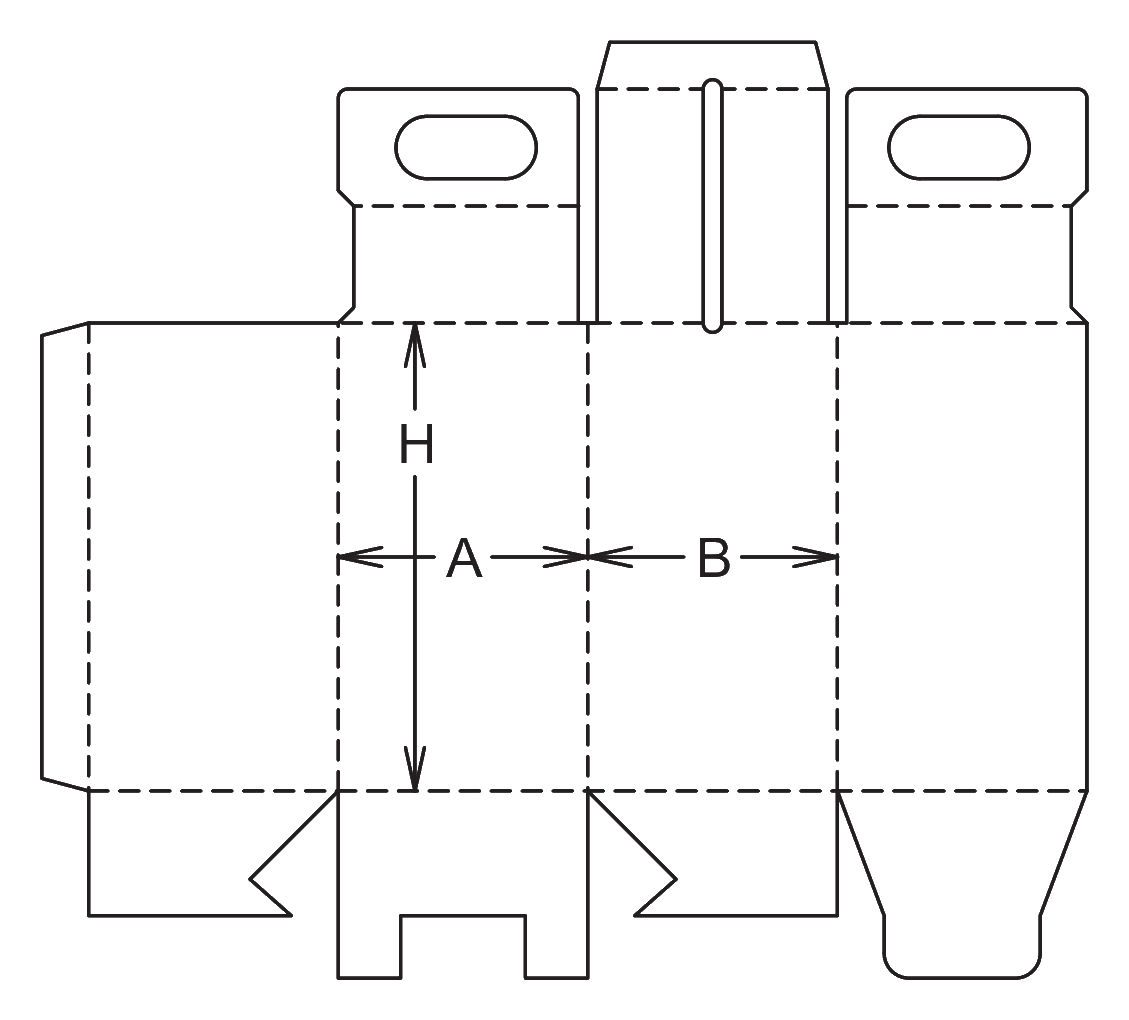

ECMA X83 specifies a carrying handle formed from two side flaps with a tuck-in arrangement. It is a Group X feature used with a folding-carton design. The illustrated carton is one host for the handle.

The host carton and intended carry load should be considered together for the finished package.
