Full-Cover Counterflap Closure for Folding Cartons

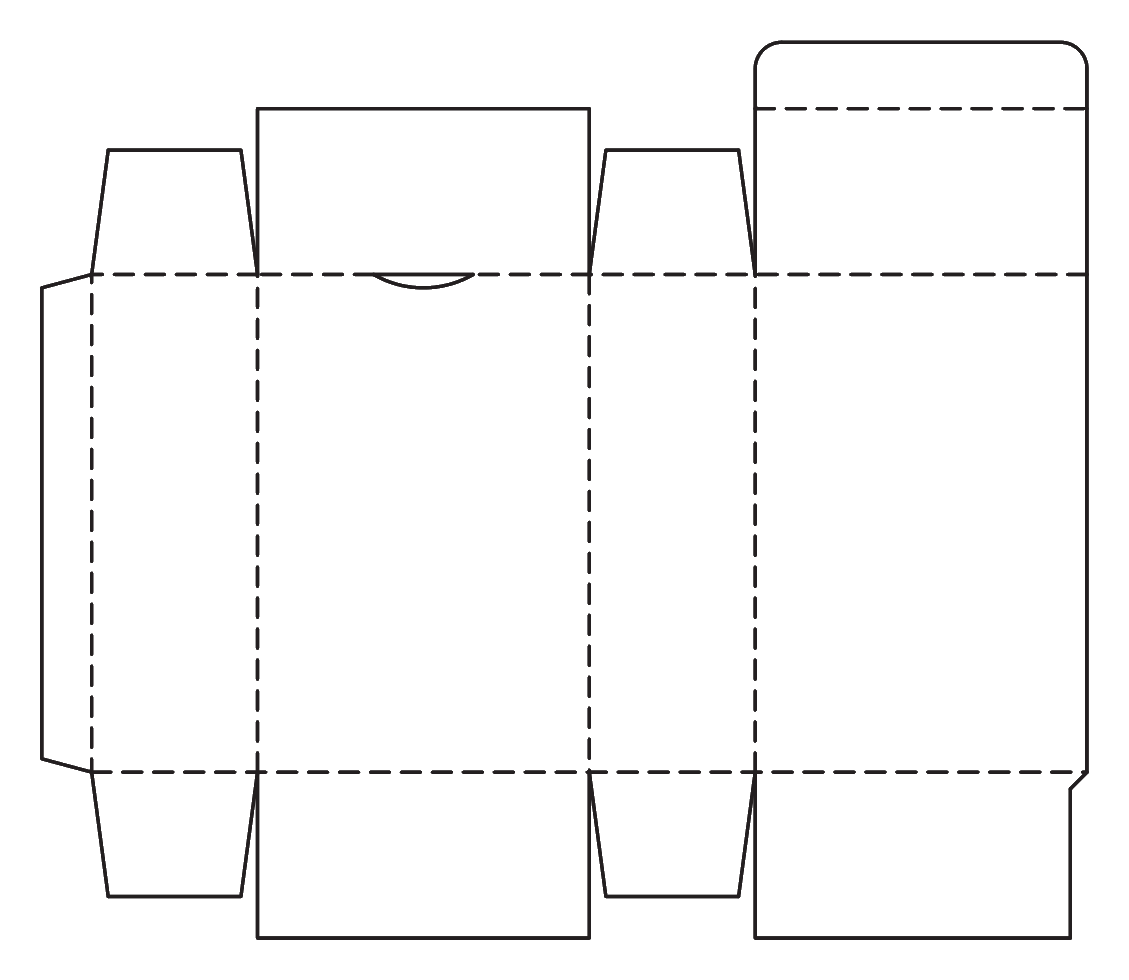

ECMA X25 specifies a tuck-in flap used with a full-covering counterflap. It is a Group X feature used with a folding-carton design. The illustrated carton shows the counterflap beneath the main tuck closure.
The added panel can create a cleaner opening and separate the main tuck flap from the contents.
The counter flap hides the folded side dust flaps, presenting the customer with a clean, unbroken surface when they open the main lid. This is useful for high-end retail goods where the first impression is critical.
Protecting products from the tuck tab
In standard cartons, the friction tab slides directly into the box cavity, which can scratch labels, catch on bottle caps, or damage delicate items. The counter flap acts as a physical barrier, keeping the tab completely separated from the payload.
Improved sift resistance
By covering the gaps typically left between short dust flaps, the counter flap reduces the chance of granular products or small components slipping out of the top or bottom of the carton.
Increasing top crush resistance
The full-width counter flap adds a structural layer directly beneath the main closure, providing better resistance against top-down pressure during stacking or handling.
Industry and Product Fit
Cosmetics and personal care
Provides the rigid, high-quality feel expected in beauty packaging, while offering a prime location on the inner flap for branding, welcome messages, or usage steps.
Pharmaceuticals and nutraceuticals
The counter flap serves as an immediate, highly visible surface for mandatory dosage instructions or regulatory warnings as soon as the patient opens the box.
High-end electronics and accessories
Offers a clean interior presentation for cables, chargers, or small devices, keeping the tuck tab away from sensitive screens or finishes.
When to Consider Standard Tuck Cartons
High-speed automated cartoning
If the packing line relies on standard automated cartoners, a standard straight tuck or reverse tuck may be necessary. The X25 requires a distinct folding sequence (dust flaps, then counter flap, then main tuck) which standard equipment may not support without modification.
Strict material efficiency
The full-coverage counter flaps extend the overall length of the flat blank, reducing how many cartons fit on a single sheet of board. If minimizing board footprint is the primary driver, a standard tuck carton uses less material.
Board, Print, and Assembly Choices
Interior print requirements
Decide if the counter flap will carry graphics or instructions. Because this flap is formed from the main body panel, printing on its visible face requires double-sided printing or specific board choices.
Board thickness and fold clearance
The main tuck flap must fold cleanly over the counter flap. Thicker boards require careful adjustment of the crease offsets to prevent the outer flap from bulging or binding when closed.
Hand assembly versus automated packing
The counter flap requires a specific folding sequence. Evaluate whether your packing line can handle the extra step or if manual assembly is a better fit.
Base closure style
Decide if the counter flap is needed on both ends. Using a standard tuck or lock-bottom on the base can simplify packing while keeping the premium presentation on the top opening.
Adjusting the Counter Flap and Thumb Hole
Thumb hole sizing
The semi-circular cutout on the edge of the counter flap allows users to easily grip and lift it. This cutout can be widened or deepened based on the ergonomics of the target customer.
Mixed end closures
While the template models the counter flap on both ends, it is common to use the premium X25 closure on the top for unboxing, while using a standard tuck or lock-bottom on the base to reduce board footprint and speed up assembly.
Counter flap length
The counter flap can be adjusted to cover the entire opening or shortened slightly depending on the required friction and clearance with the front wall.
Board and packing details
Hand assembly workflow
For manual packing operations, the X25 is straightforward but adds one extra folding step per end compared to a standard tuck box. Packers must fold the dust flaps, fold down the counter flap, and finally secure the main tuck.
Additional notes
Board thickness and lid clearance
When specifying thicker boards, the crease lines must be stepped carefully so the outer tuck flap does not bulge when folded over the inner counter flap.
Related Retail Cartons
A20.20: Standard Straight Tuck Carton
Review this alternative if you need a simpler, more material-efficient closure that works easily on standard automated packing lines.
Review this alternative if the inner counter flap needs its own friction tab to lock into the carton body for added security.
FAQs
Assembly and Packing
Can this carton be packed on automated lines?
It depends on the equipment. The counter flap requires a specific folding sequence before the main lid is closed. Standard cartoners may struggle with this extra step, making this style more common for hand-packing or specialized machinery.
Product Fit
Does the counter flap make the box sift-proof?
It improves sift resistance by covering the gaps left by standard dust flaps, making it better for powders or small parts. However, it is not hermetically sealed, and fine powders may still require an inner pouch.
Print and Finish
Can we print on the inside of the counter flap?
The counter flap is an excellent billboard for instructions or branding. Because it folds inward from the main panel, printing on it usually requires double-sided printing on the flat sheet.
Materials
Is this closure suitable for corrugated board?
It is generally best suited for folding boxboard (FBB) or solid bleached board (SBB). Using micro-flute corrugated can create excessive bulk at the hinge points, as the main flap must fold over the already thick counter flap.
Design Options
Do we have to use the counter flap on both the top and bottom?
You can specify the counter flap for the top opening (where the customer interacts with it) and use a standard tuck or lock-bottom for the base to reduce board footprint and assembly time.
What is the purpose of the thumb hole cutout?
The cutout provides a grip point so the user can easily lift the counter flap after opening the main lid. Without it, the tight fit of the counter flap can make the box difficult to open.
Product Fit
Does the counter flap prevent the box from bowing?
It adds rigidity across the opening, which helps prevent the top face from bowing inward under moderate pressure, though it does not replace the need for proper board grade selection.
Assembly and Packing
How does the counter flap affect hand packing?
It adds one extra folding step per end. Packers must fold the dust flaps, fold down the counter flap, and then secure the main tuck, which slightly increases assembly time per unit.
Review your product's unboxing sequence and packing method to determine if the added presentation of a counter flap is the right fit.
