Retail packaging and dense product applications
Retail packaging for dense or settling products

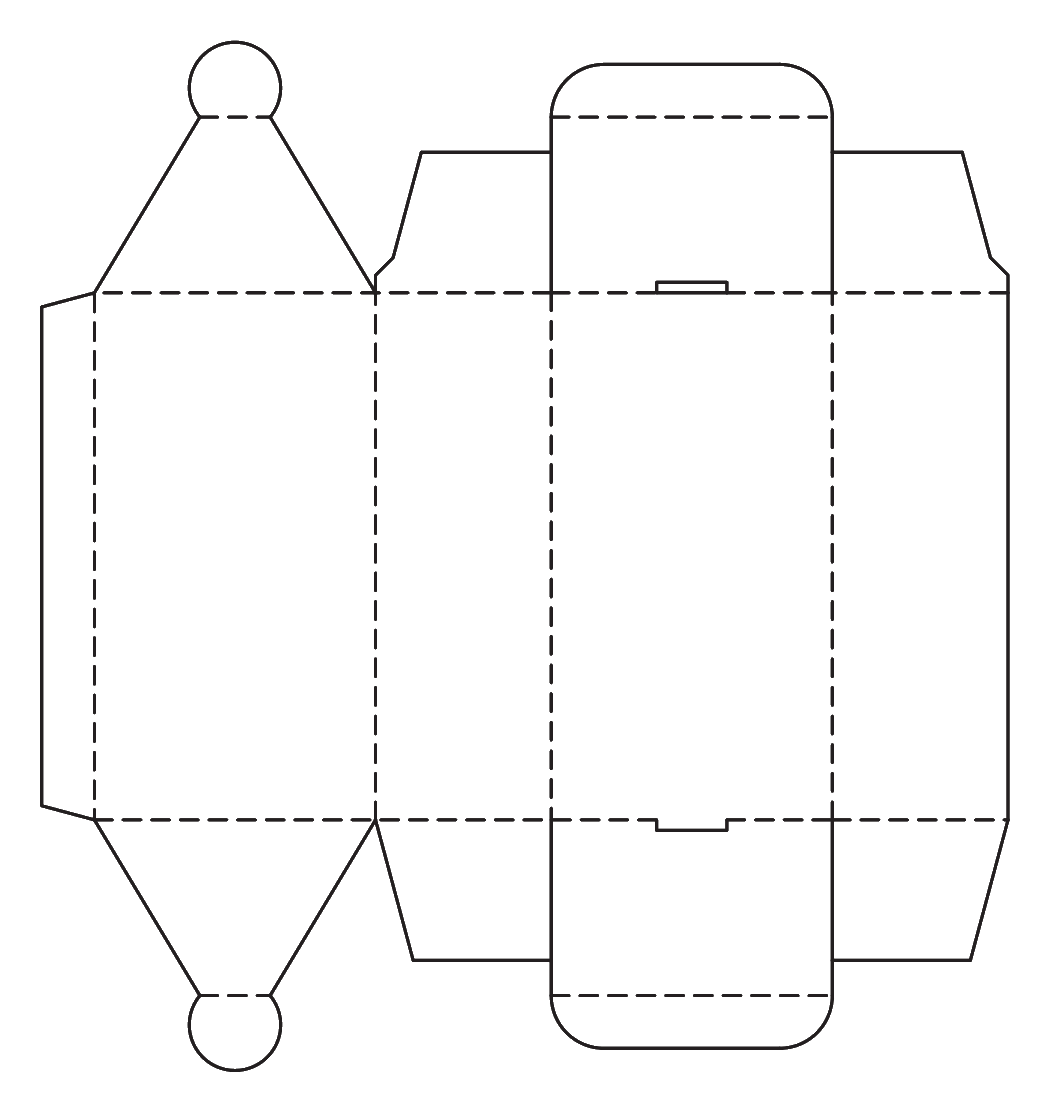

The locking counter flap acts as a tension tie across the carton opening, preventing the main panels from bowing outward. This makes it very effective for bottled cosmetics, hardware, or dense components that might force a standard friction tuck to open on the shelf.
Hand assembly and fulfillment
Because the closure involves folding the dust flaps, inserting the main tuck, and then seating the counter flap's tab into a specific slot, it is well suited for manual packing operations. It fits well in fulfillment centers or low-to-medium volume production runs where hand assembly is common.
Reclosable top access
While frequently used as a secure bottom closure to prevent product drop-out, the X31 mechanism can also be applied to the top of the carton for products that benefit from a very secure, reclosable lid.
Presentation packaging without tape
For premium retail goods, external tape or clear seals can detract from the branding. The mechanical lock provides a clean, secure closure that maintains the aesthetic of the printed carton.
Retail and product contexts
Bottled cosmetics and pharmacy goods
For heavy bottles or jars, this closure provides the necessary bottom security to prevent drop-out during retail handling, while maintaining a clean, premium appearance without the need for external tape.
Hardware and dense components
Dense industrial or hardware items often cause standard cartons to bulge. The X31 closure mechanically locks the opposing panels, maintaining the carton's shape and structural integrity under load.
Premium retail goods
When the unboxing experience matters, a mechanical lock offers a satisfying, deliberate opening motion that feels more premium than tearing through a taped seal.
When to consider alternative closures
High-speed automated packing
If your packing line uses automated equipment, this two-stage manual lock may cause bottlenecks. Compare a standard tuck closure for lighter items or a sealed flap for high-speed automation.
Rapid hand assembly for high volumes
If packing speed is the primary concern and the product is heavy, a crash-lock base is often a better choice. While crash-locks have higher factory gluing costs, they open quickly and eliminate the need to manually secure the bottom flaps.
Board, print, and packing decisions
Board thickness and slot clearance
The width and depth of the receiving slot should be matched to your chosen board thickness. If the board is too thick, the tab may tear during insertion; if too thin, the lock may be loose. Always test a physical prototype with the final material.
Grain direction and tab durability
The grain direction of the board affects both the rigidity of the carton tube and the durability of the locking tab. Balancing these two factors helps create a closure that is both secure and easy to assemble.
Top lid versus bottom base application
Decide whether the lock is needed for bottom security, top reclosability, or both. Applying it to the bottom prevents drop-out, while applying it to the top offers a secure, reusable closure for the consumer.
Packing labor versus factory gluing
Evaluate the tradeoff between hand packing time and factory conversion costs. The X31 keeps factory gluing simple but adds seconds to the manual assembly of each carton compared to a pre-glued crash-lock base.
Locking tab and slot adjustments
Tab width and insertion friction
The geometry of the locking tab and its corresponding slot can be adjusted to fine-tune the insertion friction. A wider tab provides more security but may require more effort to close.
Slot depth
The depth of the receiving slot can be modified to accommodate thicker board, ensuring the tab seats fully without binding or tearing.
Dust flap style
The shape of the internal dust flaps can be adjusted (e.g., sloped or notched) to ensure they do not interfere with the insertion of the main tuck flap or the locking tab.
Board and packing details
Physical prototypes for lock friction
Because the success of this closure depends entirely on the physical friction between the tab and the slot, a physical sample made from the exact production board is highly recommended before committing to a full run.
