FEFCO 0429

Premium Roll-End Tuck-Top Mailer

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-thick side walls provide strong lateral protection and a clean interior
Hinged lid secures via a front tuck and two side friction flaps
Assembles manually without glue, but requires an outer seal for parcel shipping

About this product

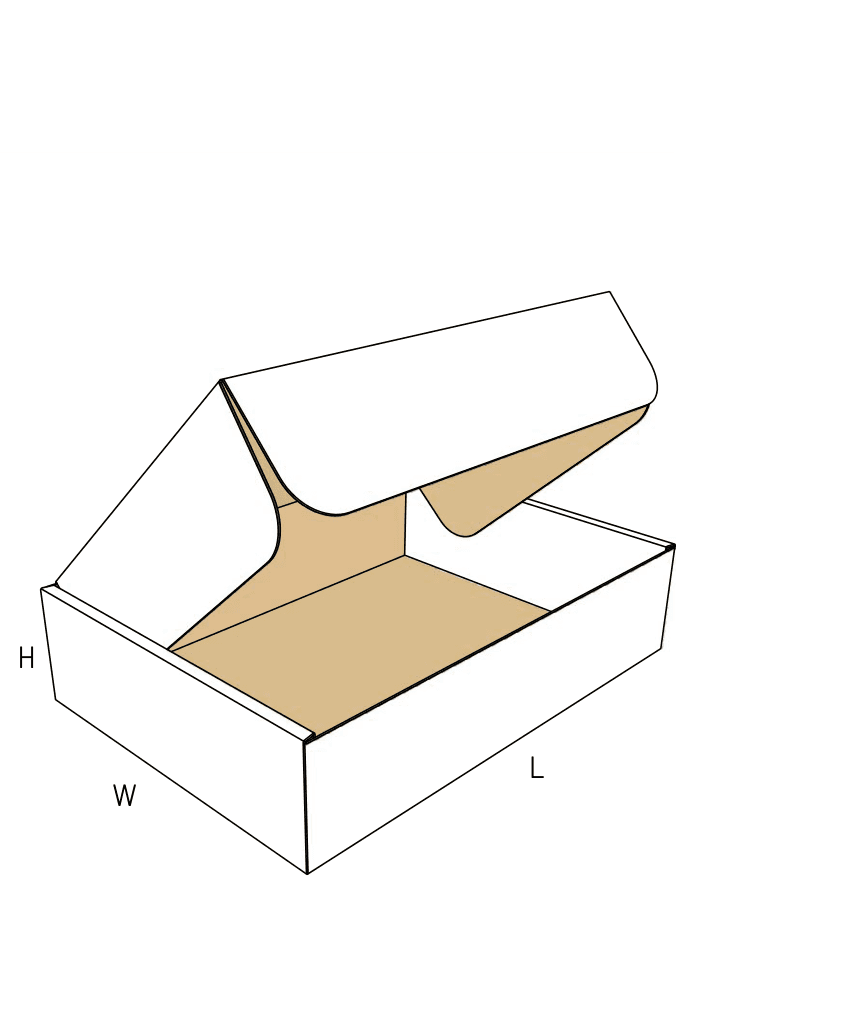

A premium one-piece presentation mailer designed for high-end unboxing experiences, the FEFCO 0429 creates a double-thick lateral barrier by rolling its side walls 180 degrees inward. This hides raw corrugated edges and provides excellent side-crush resistance.

Unlike standard mailers that secure the lid with small front tabs, the 0429 features full side flaps attached to the lid itself. When closed, these flaps slide down inside the tray walls, creating a very stable friction lock that resists shifting and keeps dust out.

Common uses

Premium e-commerce apparel
Subscription boxes
Sales demo kits
Consumer electronics
Flat media and printed materials

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Depth (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped to the final customer?

Will you use custom inserts or dividers inside the box?

Who will be packing these boxes?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Presentation and Kitting

High-end e-commerce and apparel

The unglued interior keeps raw edges and adhesive away from the product. The side-tucking lid flaps provide a clean, framed presentation when the customer opens the package.

Sales demonstration kits

The friction-fit closure allows representatives to open and close the box repeatedly without wearing out the locking tabs, maintaining a professional appearance across multiple meetings.

Consumer electronics

The rigid, double-thick side walls keep heavy or dense components from bowing the box outward, while the clean interior provides a smooth surface for custom foam or molded pulp inserts.

Flat media and printed materials

The shallow depth and rigid side walls make this a practical option for protecting art prints, postcards, or flat media from edge damage during handling.

Retail, E-Commerce, and Sales Channels

Subscription box programs

The deliberate, multi-flap closure creates a distinct unboxing ritual. The tight friction fit keeps contents secure and dust-free during transit when properly sealed.

Manual pack benches

Because the box requires no glue or machinery to erect, it fits easily into manual fulfillment operations, though the complex folding sequence requires more time per unit than simpler glued trays.

Retail shelf presentation

The smooth exterior and hidden locking mechanisms create a clean profile that stacks neatly on retail shelves without distracting tabs or raw edges.

When to Consider a Different Mailer Style

High-volume automated fulfillment

This box relies entirely on manual assembly. If your packing line uses automated folder-gluers or tray erectors, a glued tray will be faster.

Strict material budgets

The extended side roll-overs and full lid flaps create a large flat footprint, which generates more offcut waste during manufacturing than a standard slotted box.

Close variants and lookalike dielines

The closest library neighbors include EVC41102, EVC41101, EVC41111. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Assembly, and Route Decisions

Board thickness and flute profile

This box is very sensitive to board caliper. Fine flutes like E or F are a better choice to help the 180-degree roll-overs fold crisply and the lid flaps slide in without jamming.

Courier sealing requirements

While the friction lid feels secure, drop shocks in a courier network can force it open. Parcel shipments demand a clear wafer seal, branded label, or an outer shipping carton.

Insert clearance

If you plan to use internal dividers or foam inserts, the internal dimensions must account for the space taken up by the rolled-over side walls and the lid side flaps.

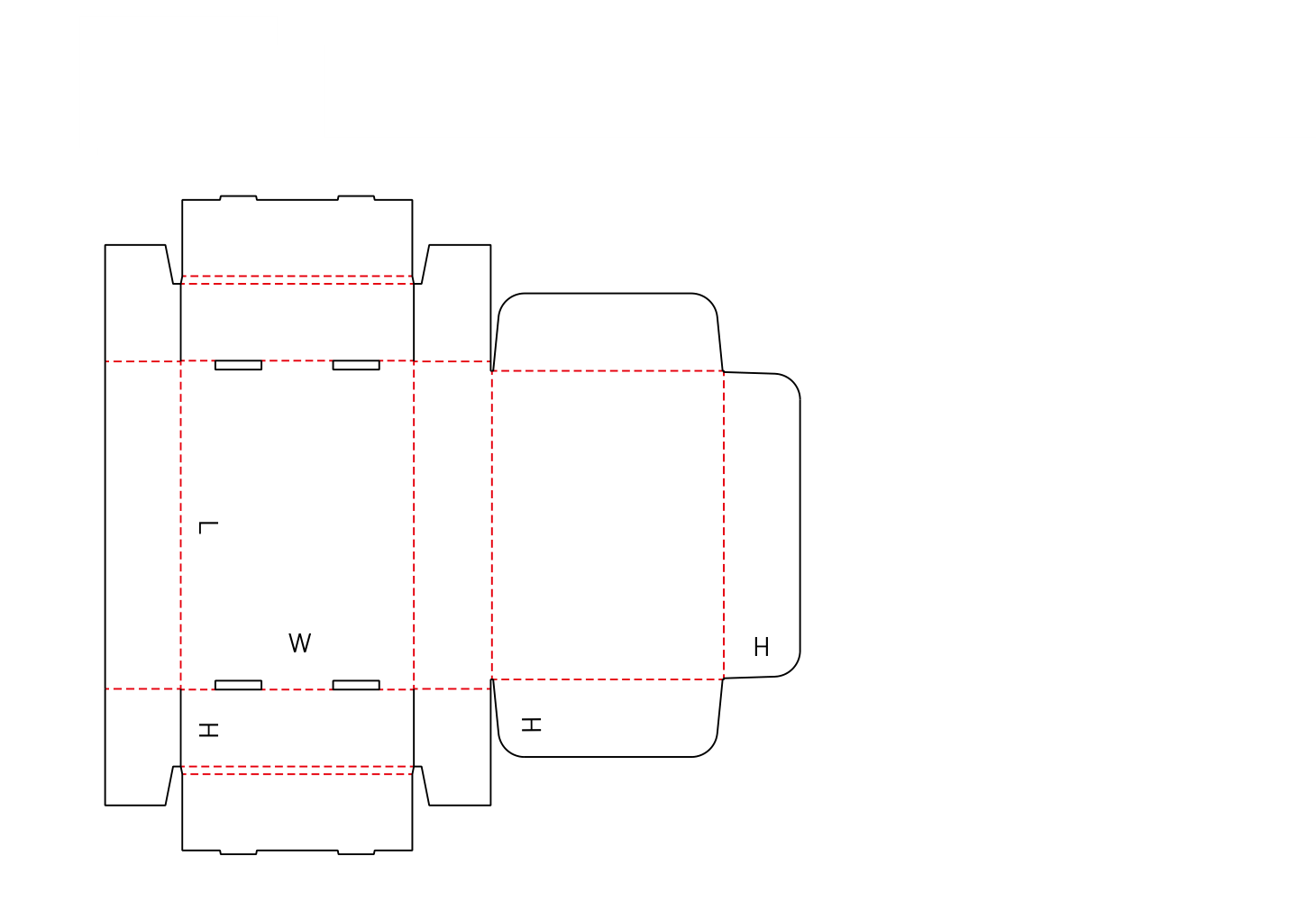

Blank footprint and material yield

The extended side roll-overs and full lid flaps create a large flat footprint. This generates more offcut waste during manufacturing than a standard slotted box, which affects the final unit economics.

Lid Flap and Base Slot Adjustments

Lid flap depth

The depth of the side trapezium flaps can be adjusted. Shorter flaps reduce insertion friction for easier closing, while deeper flaps provide maximum lateral stability.

Base slot style

The slots in the base panel that receive the roll-over tabs can be cut straight or rounded, depending on the die-cutting equipment and stripping preferences.

Corner dust flap shape

The inner corner dust flaps can be squared off or rounded. Rounded corners often slide into place more easily during manual assembly.

Board and packing details

Pre-breaking creases for assembly speed

Operators can assemble the box faster and with less thumb fatigue if the double creases on the side roll-overs are pre-broken before folding.

Variant Options

Clearance-adjusted lid flaps (0429a)

A variant that dynamically calculates the lid flap depth based on exact board thickness, preventing the lid from jamming when using slightly thicker corrugated grades.

Additional notes

Print panel and scuff risk

The smooth, uninterrupted exterior provides an excellent canvas for premium graphics. However, if the box is shipped without an outer master carton, the primary branding is exposed to courier scuffing and shipping labels.

FAQs

Shipping and Route

Can this box be shipped without an outer seal?

No. While the friction tuck lid is secure for handling and presentation, rough courier transit can cause it to pop open. Parcel shipping demands a tamper-evident label, wafer seal, or outer shipping carton.

Comparison

Why choose this over a standard cherry-lock mailer?

The side flaps on the lid provide better lateral stability and a cleaner exterior profile. It feels more substantial during unboxing, making it a strong choice for premium goods, though it uses slightly more material.

Material and Board

What board types fit this style?

Fine flutes like E, F, or N fit well. Thick double-wall board is a poor fit because the 180-degree side roll-overs will bind and crack, and the lid flaps will jam during closure.

Production Path

Can this be produced on standard slotted box equipment?

No. The complex locking tabs, base slots, and angled lid flaps require flatbed or rotary die-cutting. It cannot be produced on a simple rotary slotter.

Packing Labor

Can retail staff assemble these easily?

Yes, the box folds together entirely through mechanical friction. However, the folding sequence takes a few seconds longer per box than simpler designs, specifically when seating the side tabs into the base slots.

Print and Finish

How does high-gloss printing affect the closure?

High-gloss varnishes or laminates can make the board slippery. This reduces the friction that holds the tuck flap and side flaps in place, meaning the lid may open more easily.

Assembly

Does this box require glue for assembly?

No. The entire tray locks together using mechanical friction tabs and base slots, meaning you do not need adhesive to build the box.

Closure

How does the lid stay closed?

The lid relies on a front tuck flap and two side trapezium flaps that slide inside the double-thick walls, creating a secure friction lock without external tabs.
