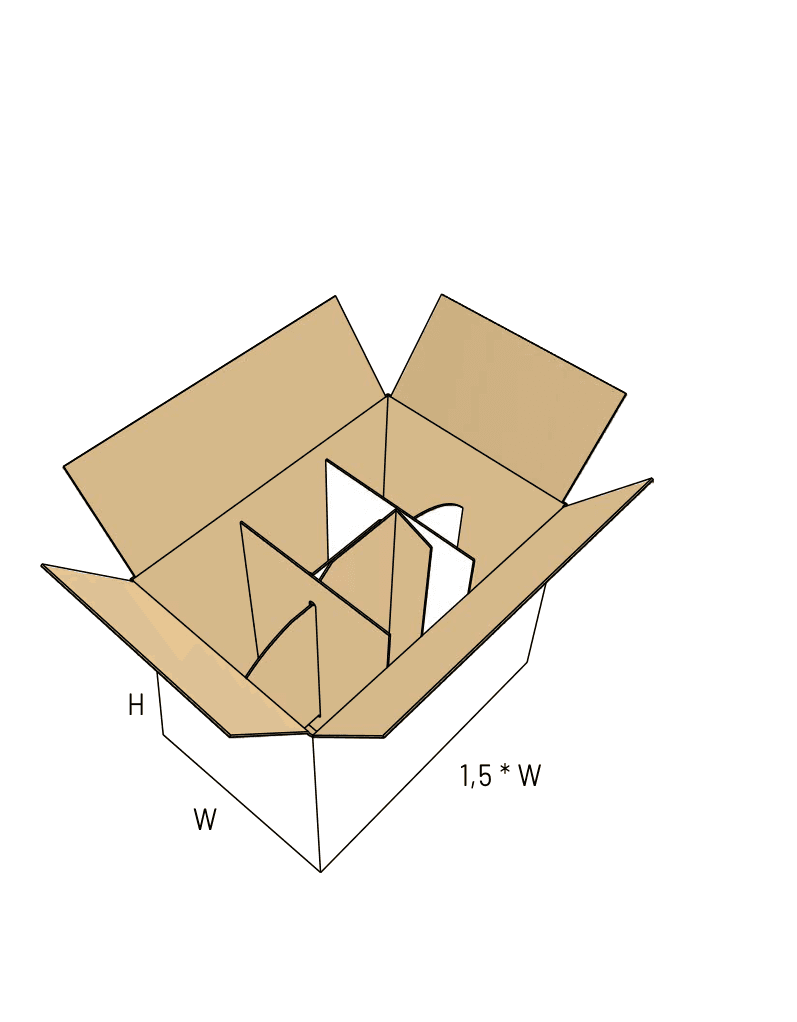

FEFCO 0715

Auto-Bottom Box with Integrated 6-Cell Divider

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Base and 6-cell partition deploy simultaneously in one squaring motion
  • Removes the need to handle and insert separate divider pieces
  • Top flaps meet in the center and seal with standard packing tape

About this product

This single-piece shipping box combines an instant-setup base with a built-in 6-cell partition. Pushing the opposite corners together locks the floor into place and deploys the internal grid simultaneously, creating six separated compartments in one motion.

By eliminating the need to handle and insert a separate divider, this design drastically reduces pack-bench labor. Because the internal folding is highly complex, it makes the most sense for repeat packing lines where labor savings justify the intricate template.

Common uses

  • High-volume beverage and spirits shipping
  • Cosmetics and heavy glass jar kitting
  • Retail-ready multi-packs requiring internal separation
  • Candles and fragile homeware packing

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-volume packing for separated goods

Beverage and glass bottle shipping

The internal grid prevents glass-to-glass contact during transit. The instant setup allows fulfillment teams to pack 6-packs of wine, beer, or spirits without pausing to build and drop in separate partitions.

Cosmetics and jar kitting

Keeps heavy glass jars or delicate cosmetic bottles separated and upright. The rigid internal walls add vertical crush resistance for palletized outbound freight.

Candles and fragile homeware

Separates delicate wax products, coffee mugs, or glassware. The integrated partition holds items securely away from the outer walls, reducing the need for loose void fill.

Retail-ready multi-packs

Groups identical items into a single secure unit. The fast assembly keeps high-volume retail kitting lines moving without managing multiple packaging components.

Industries relying on rapid fulfillment

High-throughput fulfillment centers

The labor saved by skipping a separate divider insertion multiplies across thousands of shipments, keeping the pack bench moving and reducing the number of packaging components stored at each station.

Beverage distributors

Operations packing standard 70cl or 75cl bottles benefit from the exact 6-cell grid, moving away from slow manual partition assembly.

Subscription box assemblers

Kitting multiple fragile items quickly requires streamlined packaging. The instant pop-up grid allows packers to drop items directly into designated cells without building a grid first.

When to consider separate dividers

Short runs and prototypes

The intricate folding required for the integrated partition makes short runs difficult to justify. A standard auto-bottom box with a separate drop-in divider is often more practical for testing or low-volume orders.

Heavy double-wall requirements

Thick corrugated board can cause the intricate internal folds to bind. If the payload requires heavy double-wall protection, a standard slotted box with a separate heavy-duty partition is a safer choice.

Close variants and lookalike dielines

The closest library neighbors include 0222, EVC11264, 0711a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, product fit, and closure choices

Board profile and binding risks

The internal partition folds multiple times inside the collapsed blank. Fine to medium flutes fold cleanly, while thicker boards consume internal volume and can prevent the box from squaring properly.

Cell clearance and product fit

The internal board thickness reduces the actual usable space inside each cell. Payload dimensions should be checked against a physical sample to ensure bottles or jars slide in without catching on the corrugated layers.

Top closure method

The standard template uses regular slotted flaps that require tape. If the packing line prefers a tape-free closure or a cleaner unboxing experience, the top must be modified.

Order maturity and run size

Because the internal folding is highly complex, this template is generally reserved for mature, repeat programs. For initial product launches, a simpler box with a separate insert may be easier to trial.

Top closure and presentation adjustments

Top closure styles

While the standard design uses regular slotted flaps, the top can be modified into a tuck-in lid for a cleaner retail presentation or easier unboxing.

Cell dimension balancing

The length and width of the individual cells can be adjusted to fit specific bottle diameters, provided the overall outer dimensions remain proportional.

Print surface planning

Graphics can be applied to the outer walls, but the internal partition panels are folded inward from the base, changing how interior branding is planned.

Board and packing details

Flat delivery and storage bulk

The box ships completely flat. Because of the multi-layered internal partition, the knocked-down bundles are thicker than standard boxes, which changes how many fit on a receiving pallet.

Additional notes

Run size and complex folding

This design requires highly complex folding to bond the internal partition. Because of this, the box is generally reserved for mature, repeat programs rather than short trials.

Related shipping and partition styles

0700: Standard Auto-Bottom Box

Look at this option when you want the fast base setup but do not need internal separation, or plan to use a custom molded insert instead.

0201: Standard Shipping Box

Look at this option when production economics is the primary concern and pack-bench labor speed is less critical.

EVC11264: Gabel Top with Rope Holes - Snap Lock

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Packing and automation

Can this box be run on automated case erectors?

Suitability depends entirely on the specific erector model. Many standard machines cannot handle the internal partition deployment, so physical testing with the equipment is necessary.

Closure and shipping

Does the top require tape?

Yes. While the base and divider lock automatically, the top uses standard flaps that must be sealed with tape or adhesive for transit.

Product fit and inserts

Can we change the number of cells?

The standard template is engineered specifically for a 6-cell grid. Changing to a 4-cell or 8-cell layout changes the entire folding geometry and requires a completely different design.

Route and handling

Is this suitable for heavy pallet loads?

The intersecting vertical walls of the internal divider heavily augment the outer walls, providing excellent vertical crush resistance for stacked pallets.

Board and finish

Why is board thickness so critical for this design?

The divider panels are attached to the outer walls and fold inward. If the board is too thick, the layers crowd the inside of the collapsed tube, creating extreme resistance and preventing the box from popping open.

Product fit and inserts

How does the integrated divider affect internal usable space?

The corrugated board used for the internal walls takes up physical space. A bottle that fits perfectly in a theoretical cell dimension might bind against the actual folded board, making physical samples critical.

Board and finish

Can the top flaps be modified for retail display?

The standard flaps obstruct the view of the products. For open display, the top flaps would need to be cut away or modified into a tear-away profile.

Route and handling

Does the box ship flat?

Yes, it arrives completely flat. However, because the internal partition adds multiple layers of folded board, the flat bundles are noticeably thicker than standard shipping boxes.
