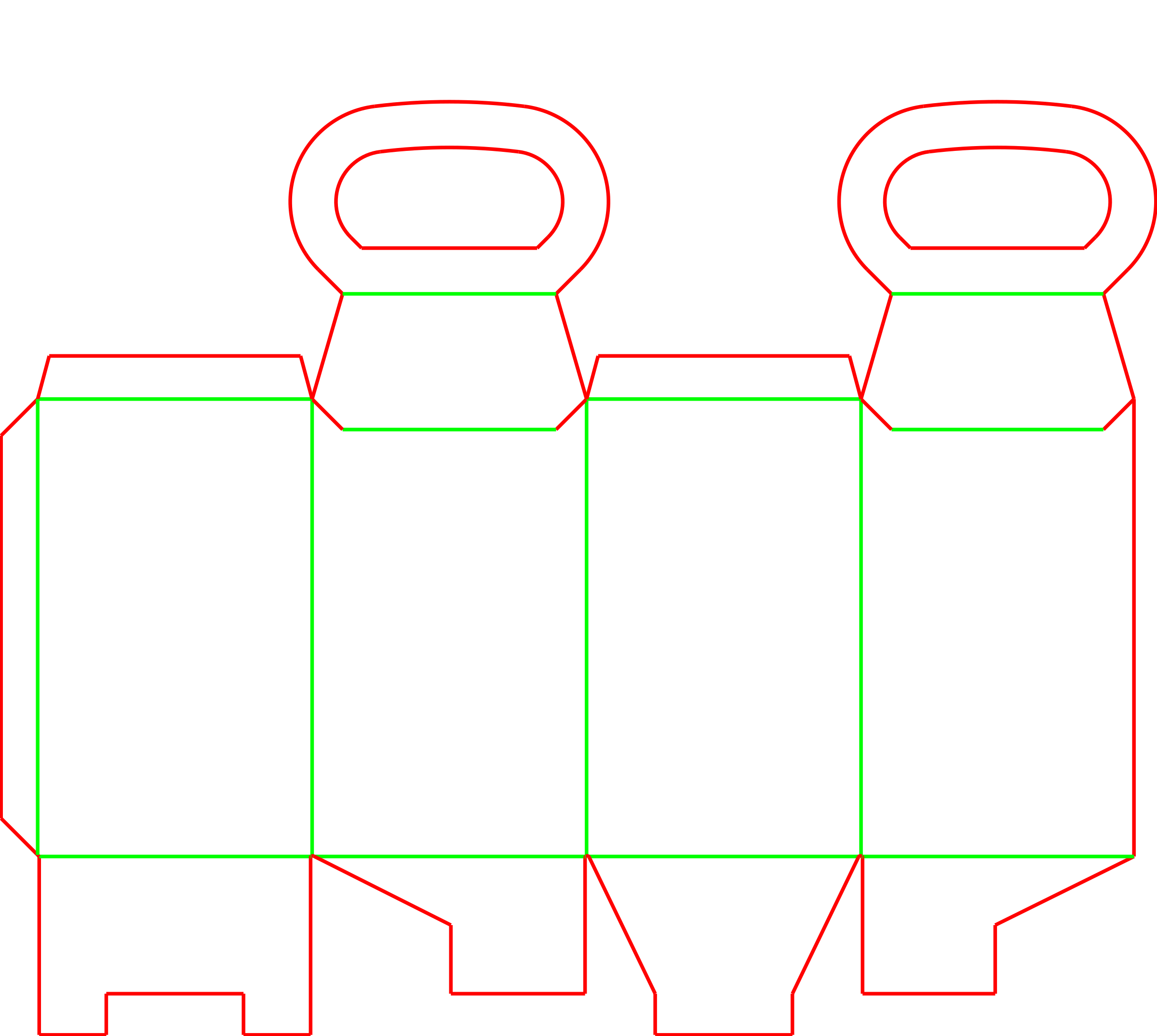

ECMA A55.00.03.00.82

Retail Carry Box with Recessed Handle

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Built-in double-thick carrying handle
  • Distinctive recessed shoulder design
  • Snap-lock bottom for manual assembly

About this product

This folding carton features a built-in carrying handle and a distinctive recessed top, making it an excellent choice for premium retail goods, gift packaging, and takeaway items. The design combines consumer convenience with a structured, briefcase-like presentation.

Delivered flat and assembled by hand, it uses a friction-fit snap-lock bottom that holds moderate weights without tape. Because the handles protrude and the top is recessed, this box is designed for direct hand-carry rather than vertical stacking or parcel shipping.

Common uses

  • Premium retail goods
  • Gift packaging
  • Bakery and cafe takeaway
  • Promotional kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical Uses for the Recessed Handle Box

Premium Retail Carry-Away

The integrated handle allows customers to easily carry purchases from the store. The recessed top provides a clean, structured look that improves the presentation of clothing, cosmetics, or specialty goods.

Gift and Promotional Kits

Often used for event giveaways or curated gift sets, the briefcase-like profile stands out from standard packaging. The flat side panels offer excellent billboard space for branding.

Bakery and Cafe Takeaway

Suitable for lightweight baked goods or specialty food items, provided the board is specified for the required weight and any necessary food-safe barriers are included.

Trade Show and Event Handouts

The built-in handle makes it easy for attendees to carry materials or samples throughout an event, while the flat side panels offer clear space for branding.

Retail and Promotional Contexts

Store-Floor Assembly

These boxes are delivered knocked-down flat, saving storage space behind the counter. Retail staff pop the tube open, fold the interlocking bottom flaps, load the product, and bring the top handle flaps together.

Direct-to-Consumer Hand-Off

This package is designed specifically for the final hand-off to the consumer. For parcel delivery, the exposed handles and friction-fit bottom require an outer shipping box.

Short-Run Promotions

Because it relies on a manual snap-lock bottom rather than a pre-glued crash base, this style is often easier to trial for limited-run promotional campaigns.

When to Consider a Different Carry Box

High-Volume Packing Lines

If packing speed is critical, the manual snap-lock bottom and multi-step top closure may slow down operations. An auto-bottom (crash-lock) carry box can speed up erection.

Palletized Distribution

The protruding handles and recessed top prevent stable vertical stacking. If the primary cartons must be stacked on pallets, a standard rectangular carton or a design with a fold-down handle is required.

Parcel Shipping

Exposed handles can catch on sorting equipment, and the friction-fit bottom may open under drop impacts. For e-commerce, use a standard mailer or place this carry box inside a protective outer shipper.

Key Decisions for Fit and Function

Board Grade and Tear Resistance

The entire weight of the package is carried by the handle flaps. Selecting a board with high tear resistance helps prevent the handle from tearing under load.

Bottom Lock Security

The snap-lock (envelope) bottom relies on friction and interlocking tabs. It should be tested with the actual product weight to ensure it remains closed during carrying.

Handle Ergonomics

The die-cut handle holes must be sized appropriately for comfortable carrying. If the box is intended for heavy items, a wider grip area or reinforced handle may be necessary.

Print Surface and Graphics

The recessed shoulder and handle flaps split the top graphics. Artwork should account for this fold and split, keeping primary branding on the main vertical panels.

Adjusting the Handle and Profile

Handle Height and Clearance

The height of the handle above the box can be adjusted. A taller handle provides more finger clearance but requires a larger flat blank, which affects material efficiency.

Recessed Shoulder Depth

The angle and depth of the trapezoidal top flaps can be modified to change the sloped profile, ensuring the recessed area does not interfere with the product inside.

Bottom Lock Style

While this template uses a manual snap-lock bottom, the base can be modified to an auto-bottom (crash-lock) if assembly speed becomes a priority for larger runs.

Board and packing details

Blank Size and Material Efficiency

The extended handle flaps increase the overall height of the flat blank. This affects nesting efficiency during die-cutting compared to a standard tuck-top carton.

Additional notes

Testing handle ergonomics

When prototyping, check that the die-cut handle provides enough clearance for fingers, especially if the box will be carried for extended periods.

Related Carry Boxes

FAQs

Assembly and Packing

How is the bottom of this box closed?

It uses a snap-lock (or 1-2-3) bottom. The operator folds in the U-shaped end flap, then the two side flaps, and finally pushes the tuck flap down so its tabs catch under the side flaps. This creates a secure floor without tape.

Shipping and Handling

Can these boxes be stacked on a pallet?

Vertical stacking is not practical because the recessed top and protruding handle flaps create an uneven surface. These cartons should be shipped flat to the retail location and handed directly to the consumer after loading.

Is this box suitable for e-commerce shipping?

Parcel networks require an outer shipping box. The exposed handles can snag on sorting equipment, and the friction-fit bottom lock is not designed for parcel networks without an outer shipping box.

Product Fit

How much weight can the handle support?

Weight capacity depends entirely on the chosen board grade and the size of the handle cutouts. Physical testing with your actual product helps ensure the handle does not tear and the bottom remains secure.

Design and Print

Does the handle affect the printable area?

The main vertical panels offer flat space for graphics. The recessed shoulder and handle flaps can also be printed, but keep in mind that the handle flaps meet in the center, so designs there should account for the split.

Assembly and Packing

Do I need tape or glue to assemble this box?

The side seam is pre-glued during manufacturing. The top handle and bottom snap-lock are designed to interlock manually without additional tape, though heavy retail items might benefit from a clear bottom seal for extra security.

Product Fit

Can I use this box for heavy items like glass bottles?

Weight capacity depends on the board grade and handle reinforcement. For heavy items, testing the snap-lock bottom and handle tear strength with your exact product is necessary.

Shipping and Handling

Does the box ship flat?

Yes, the carton is glued along the side seam and delivered knocked-down flat, which saves storage space before retail assembly.
