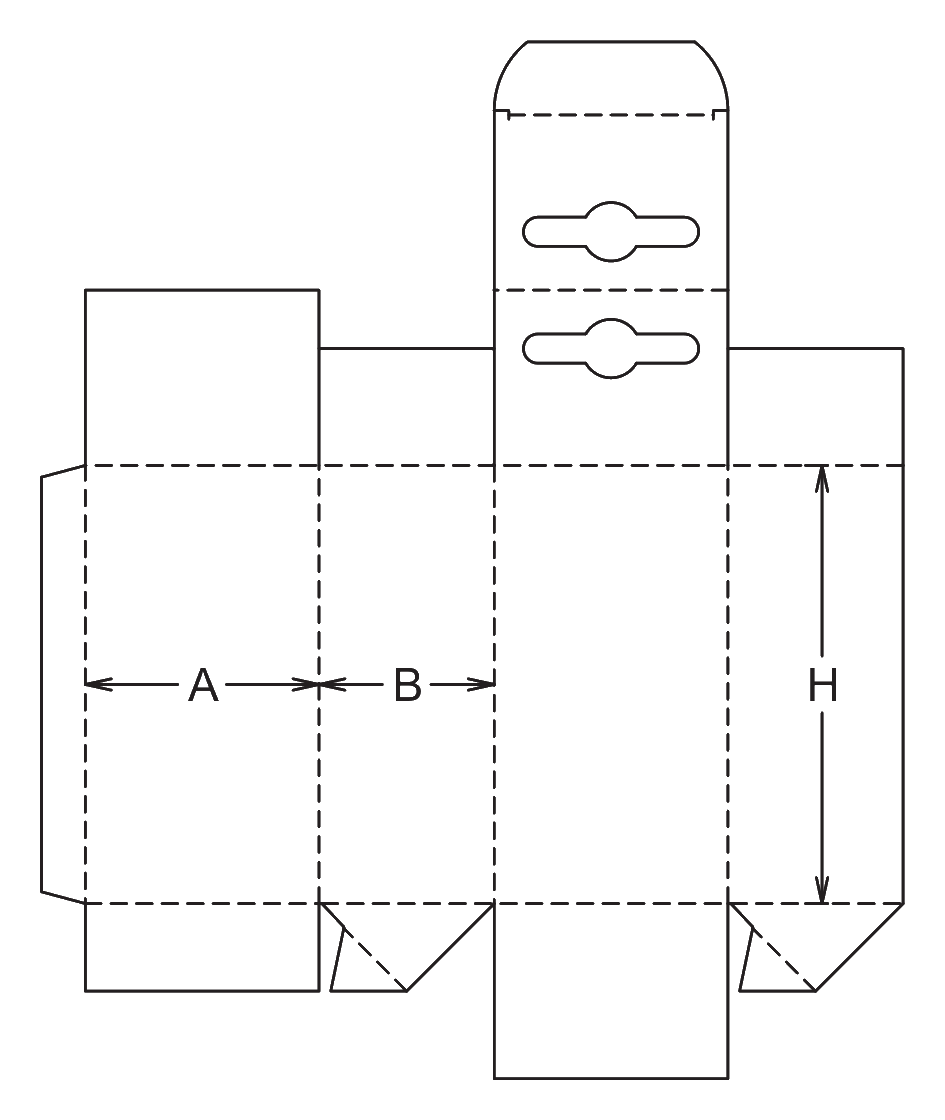

ECMA A61.15.01.03

Auto-Bottom Hanging Box with Overlapping Top

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-thick folded hanger panel for pegboard display
  • Crash-lock base eliminates manual bottom folding
  • Overlapping top flap provides a clean display surface

About this product

This retail-ready folding carton combines a reinforced pegboard hanger with a crash-lock base that snaps into shape quickly. It is designed for fast manual packing of lightweight to medium-weight consumer goods.

Unlike tuck-top boxes, this carton features a full overlapping top flap. This provides a clean, unbroken top surface but often requires a clear wafer seal or label to secure the package on the retail shelf.

Common uses

  • Cosmetics
  • Small electronics
  • Hardware accessories
  • Toys
