Common Beverage Multi-Pack Uses
Retail Beer and Cider Multi-Packs
A common format for glass beverage bottles. The closed side walls provide excellent billboard space for branding, while the open ends allow consumers to see the primary product.
Soft Drink and Mixer Grouping
Used for grouping rigid glass bottles for retail shelves. The carrier keeps the bottles organized and easy to carry while relying on the bottles' top-load strength for stacking.
Rigid PET Beverage Packing
Can be adapted for rigid PET bottles, provided the neck rings and base profiles offer enough geometry for the cutouts to catch and hold the product.
Cold-Chain Retail Displays
Frequently used in refrigerated environments where the carrier board is specified with moisture-resistant properties to handle condensation without tearing.
Production and Retail Contexts
High-Volume Filling Lines
This carrier is often chosen for speed. It is typically run on wrap-around equipment that groups the bottles, drapes the blank, folds the side walls, and seals the bottom overlap under tension.
Refrigerated Retail Environments
Beverages moving through cold environments generate condensation. The board is often specified with moisture-resistant properties to help reduce the risk of the neck cutouts tearing when lifted by a consumer.
Palletized Distribution
Because the carrier itself does not bear vertical weight, palletized distribution relies on the primary bottles to support the load. The carriers are usually packed into shallow corrugated trays or shrink-wrapped for transit.
When to Consider a Different Carrier Style
Manual Packing Operations
Hand-packing operations often find wrap-around carriers difficult to tension and seal consistently. A pre-glued basket carrier or an auto-bottom fully enclosed carton is usually worth comparing for manual lines.
E-commerce and Parcel Shipping
This carrier leaves the bottle necks and ends exposed. If shipping direct-to-consumer through a courier network, the carrier is usually packed inside an outer corrugated shipper with appropriate void fill or partitions.
Key Decisions for Wrap-Around Carriers
Matching the Bottle Profile
The carrier footprint, neck hole spacing, and heel cutout geometry should closely match the physical bottle. Minor changes to the bottle taper or base chamfer often mean adjustments to the cutting template.
Board Grade for Moisture and Weight
Because the entire weight of the multi-pack hangs from the top panel when carried, the board should have high tear resistance. Heavy glass bottles often call for specialized high-strength boards, especially if exposed to moisture.
Packing Line Compatibility
The specific wrap-around equipment often dictates the glue flap widths, blank tolerances, and grain direction. These details help finalize the package design.
Outer Shipping Requirements
Wrap-around carriers group the product but do not protect against transit impacts. Deciding how these carriers will be master-packed into corrugated trays or cases is an important step before finalizing the carrier dimensions.
Adjusting the Carrier for Your Bottles
Neck Clearance and Capture

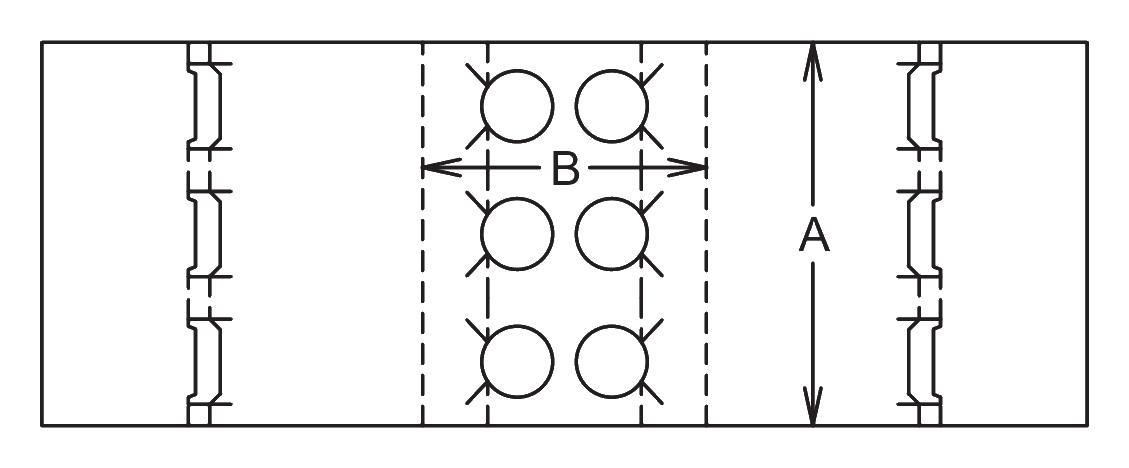

The circular holes on the top panel can be sized to clear the bottle cap easily during machine draping, but remain tight enough to catch the bottle shoulder or neck ring when lifted.
Base Retention Cutouts
The cutouts along the bottom creases can be adjusted to match the specific base profile of the bottles. These locks cup the bottle heels to help keep them from sliding out the open ends of the carrier.
Shoulder Angle Adjustments
The angled panels between the top and the vertical side walls can be modified to follow the specific taper of the bottle shoulder, ensuring a tighter wrap and better load distribution.
Board and packing details
Master Shippers and Palletization
Wrap-around carriers group the bottles but do not bear vertical stacking weight. When palletizing, the primary bottles support the load. Carriers are typically loaded into shallow corrugated trays or shrink-wrapped for distribution.
