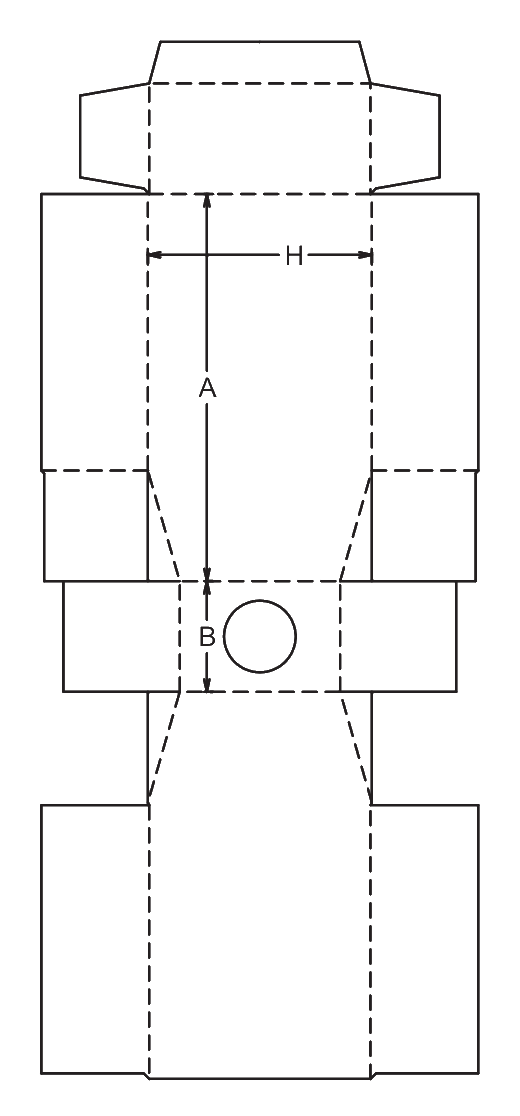

ECMA F60.03.00.00

Bevelled-Shoulder Bottle Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Distinctive bevelled shoulders for retail display
Top aperture designed to frame bottle necks or dispenser pumps
Relies on secondary gluing or sealing of the shoulders during packing

About this product

A distinctive retail folding carton designed for tall bottles, cosmetics, and dispensers. It features a rectangular base that transitions into inward-tapering shoulders, topped by a flat panel with a circular aperture that allows the product's neck or pump to protrude.

While it delivers a tailored presentation on the shelf, this package involves specific packing steps. The carton is delivered flat as a double-glued tube, and the packing team folds and seals the bevelled shoulders after loading the product.

Common uses

Cosmetics with pumps
Specialty spirits
Premium diffusers
Dropper bottles

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of product is going inside?

How should the top hole fit around your product?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation For Bottles And Dispensers

Pump dispensers and diffusers

The top aperture is sized to let a pump mechanism or diffuser reeds extend outside the box while the main body of the product remains securely enclosed. The bevelled shoulders draw the eye upward to the dispenser.

Specialty spirits and cosmetics

For tall bottles with distinct neck profiles, this carton provides a custom-tailored look. The product is loaded from the bottom, and the top panel acts as a brace against the bottle's shoulder.

Dropper bottles for serums and oils

The top hole can be sized to expose the rubber bulb of a dropper bottle, allowing consumers to see the applicator style without opening the package.

Tall trigger-spray bottles

The carton can enclose the liquid reservoir while allowing the trigger mechanism to sit above the top panel, reducing the overall board required compared to a fully enclosed box.

Cosmetics, Spirits, And Professional Channels

Premium retail environments

The faceted shape stands out against standard rectangular boxes on retail shelves. It provides ample flat space on the lower body for branding while using the structural taper to signal a high-end product.

Limited-edition promotional runs

Because the shoulders rely on manual sealing, this carton is often reserved for lower-volume promotional items or gift sets where the visual impact justifies the slower packing speed.

Salon and professional display

In professional settings, the exposed pump or dispenser allows stylists to identify the product quickly while the carton protects the main bottle body from scuffs.

When To Consider Standard Tube Cartons

Automated packing lines

If the packing line relies on horizontal or vertical cartoning equipment, the unglued bevelled shoulders of this carton often complicate the process. Compare a standard tuck-end carton that can be erected and closed without manual shoulder sealing.

Heavy liquid volumes and base strength

The standard tuck flap at the bottom can disengage under the weight of heavy glass or large liquid volumes. If the product is heavy, compare a crash-lock or 1-2-3 bottom carton for added base support.

Packing Line And Fit Decisions

Shoulder sealing method

Because the converter only glues the two vertical side seams, the packer secures the overlapping tabs that form the bevelled shoulders. Decide whether this will be done with hot melt glue, double-sided tape, or a specialized sealing label on the packing line.

Board selection

Solid bleached sulfate (SBS) or folding boxboard (FBB) are well-suited for achieving the crisp folds needed at the shoulders. Micro-flute corrugated is often a poor match, as the thickness makes the overlapping shoulder tabs difficult to fold and seal flat.

Base closure style

The standard template uses a tuck flap at the bottom. For heavier glass bottles or liquid-filled dispensers, this closure should be tested to ensure it will not disengage when the carton is lifted. A crash-lock or 1-2-3 bottom can be engineered for added base support.

Top aperture clearance

The circular cutout must be sized carefully. It should be large enough to slip over the cap or pump during loading, but snug enough to restrict lateral movement once the bottle is seated on the bottom panel.

Adjusting The Taper And Aperture

Aperture sizing and shape

The cutout in the top panel can be precisely sized to match the product's neck or cap. While a circle is standard, it can be modified to fit square caps, custom pump heads, or removed entirely if a solid flat top is preferred.

Taper angle and shoulder height

The severity of the bevel and the height at which the taper begins can be adjusted to match the specific contour of the bottle, ensuring the carton braces the product correctly.

Bottom closure upgrades

The standard tuck bottom can be replaced with a snap-lock (1-2-3) or crash-lock bottom to better support heavy glass bottles or dense liquid products.

Board and packing details

Board thickness and shoulder folding

The overlapping tabs that form the bevelled shoulders require multiple layers of board to fold cleanly. Solid bleached sulfate (SBS) or folding boxboard (FBB) are usually chosen because they handle these tight, multi-layer folds better than thicker corrugated fluting.

Additional notes

Secondary sealing requirement

The aesthetic appeal of the bevelled shoulders relies on a secure seal applied during packing. If the adhesive or tape fails, the shoulders can splay open.

FAQs

Packing and Assembly

Does this carton arrive fully glued?

The manufacturer glues the two vertical side seams so the carton can ship flat. Once the tube is opened and the product is loaded, the packing team folds and seals the bevelled shoulders to lock the shape in place.

Can this be packed on an automated cartoning line?

Standard cartoning equipment is built for rectangular closures. The complex folding and gluing involved for the bevelled shoulders usually points to manual assembly or highly specialized fixtures.

How are the bevelled shoulders secured during packing?

The packer folds the overlapping tabs and applies an adhesive. This is typically done with hot melt glue, double-sided tape, or a strong sealing label applied over the seams.

Product Fit

How does the top hole hold the product?

The top panel bridges the front and back walls. When the hole is sized correctly, it slips over the neck or cap of the bottle, restricting lateral movement and keeping the product centered in the carton.

What happens if the product neck is shorter than the carton?

The top panel will not brace the bottle effectively, and the product may shift vertically during transit. The carton's height and the start of the shoulder taper should be adjusted to match the specific bottle.

Materials

Can this be made from corrugated board?

It is usually a poor fit. The bevelled shoulders require multiple layers of board to fold and overlap. Corrugated fluting is typically too thick to allow these tabs to fold cleanly and seal flat.

Shipping

Is this carton safe for parcel shipping?

The tuck bottom and manually sealed shoulders are designed for retail presentation, not the impacts of a parcel network. It usually needs a sturdy outer shipping box for e-commerce fulfillment.

Customization

Can the top hole be a different shape?

While a circle is standard for bottle necks, the aperture can be modified to fit square caps, custom pump heads, or removed entirely if a solid top panel is preferred.
