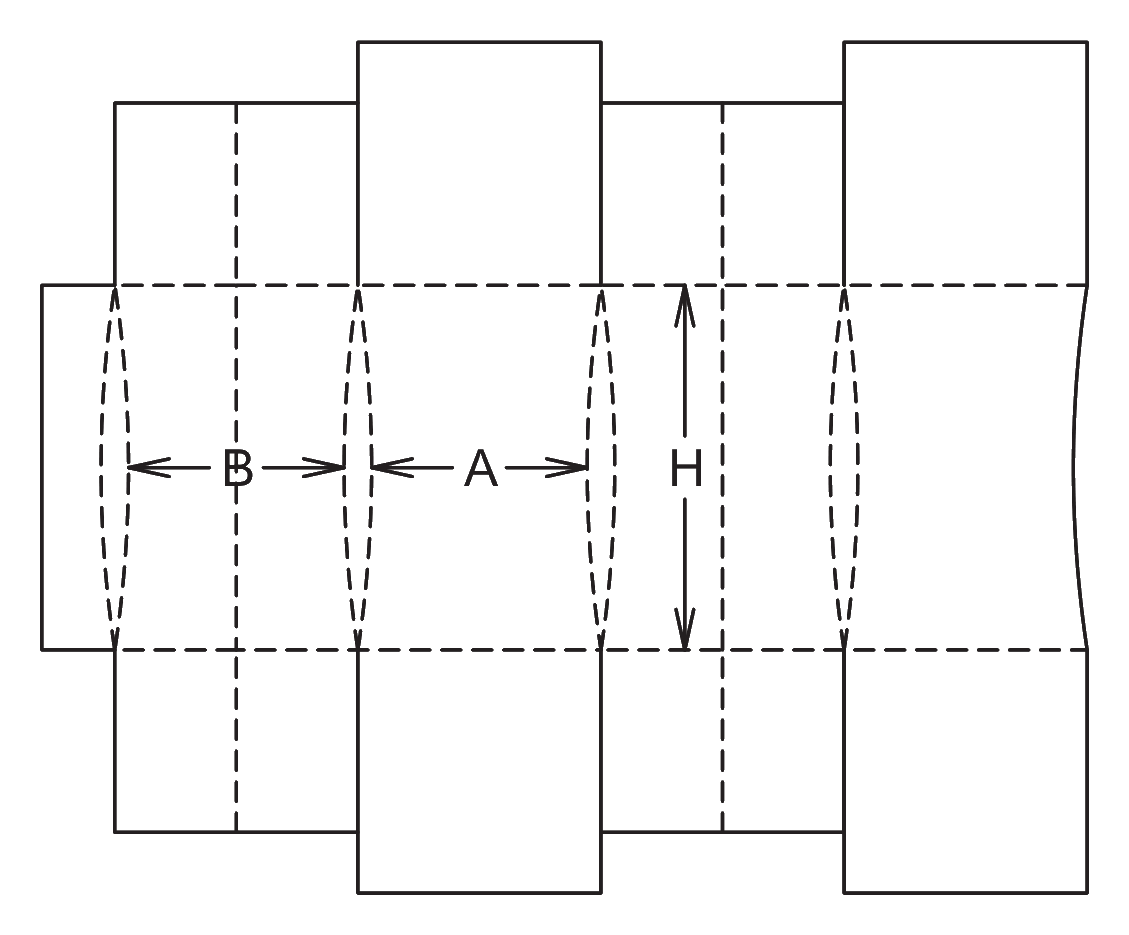

ECMA F10.83.00.00

Bowed-Side Folding Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Forms a 3D curved shape
  • Delivered completely flat
  • Sealed with adhesive or labels

About this product

The bowed-side folding carton is a premium retail package that uses specialized curved creases to create a distinct 3D silhouette. While it looks like a standard straight-line carton when flat, squeezing the edges forces the side panels to bow outward, creating a convex shape that stands out on crowded retail shelves.

This carton offers the visual impact of a custom shape while remaining compatible with standard folder-gluer production. Because the bowed sides reduce vertical compression resistance and the top and bottom flaps rely on an external seal, it is a strong fit for lightweight luxury goods, cosmetics, and spirits that will be displayed individually or shipped in protective master cartons.

Common uses

  • Cosmetics and fragrance packaging
  • Premium spirits and beverage cartons
  • High-end confectionery

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Premium Retail and Display Packaging

Luxury Retail Presentation

The curved side panels create a premium, non-standard profile that draws attention on the shelf. It is an excellent choice for high-end products where the unboxing experience and visual differentiation justify a slightly more complex closure process.

Flat-Shipping Premium Packs

Unlike rigid setup boxes that take up large amounts of warehouse space, this carton features a central vertical crease on the side panels. This allows the entire carton to fold completely flat for efficient shipping and storage, taking its 3D shape only when needed for loading.

High-End Gift Sets

The curved shape elevates the unboxing experience for bundled items or gift sets. The smooth paperboard surface supports high-end finishes, making it a strong primary package for premium collections.

Limited Edition Product Launches

A distinct silhouette helps special releases stand out from standard straight-line cartons. The unique geometry signals a premium product before the package is even opened.

Cosmetics, Spirits, and Confectionery

Cosmetics and Fragrance

The elegant, sweeping lines of the bowed sides complement beauty products. The smooth paperboard surface needed for the curves also provides an excellent canvas for foil stamping or spot UV.

Spirits and Confectionery

Used for premium bottles or high-end chocolates, the carton provides a distinctive outer layer. Buyers should ensure the product weight is supported by the sealed bottom flaps, as the bowed sides do not bear heavy vertical loads.

Boutique Electronics and Wearables

Small, high-value tech items benefit from the premium presentation. The flat-shipping nature of the carton keeps inbound freight efficient while delivering a high-end unboxing experience.

When to Choose a Standard Straight-Line Carton

Heavy Stacking Requirements

The pre-bowed side panels inherently compromise the vertical compression resistance of the carton. If your product is heavy or the cartons will be stacked high on pallets without a sturdy master shipper, a standard straight-cornered carton is a safer choice.

Friction-Lock Assembly

This template uses full-overlap top and bottom flaps that do not lock on their own. If your packing line relies on quick tuck closures, you should compare standard tuck-end cartons or request a structural modification to add tuck tabs.

Board Choice, Closure, and Route Planning

Selecting the Right Board Grade

The lenticular (lens-shaped) corner creases rely on a material that can bend smoothly without cracking. Solid bleached board (SBB) or folding boxboard (FBB) are strong choices. Corrugated board is generally a poor fit, as the flutes will crush or crease irregularly along the curves.

Planning the Closure Method

Because the top and bottom feature plain overlapping flaps, you should decide how to seal the package. Common solutions for premium retail include clear wafer seals, branded tamper-evident labels, or hidden adhesive applied during fulfillment.

Outer Shipping and Master Cartons

Because the bowed sides reduce vertical compression resistance, buyers should plan for protective outer shippers during transit. This carton is designed for primary retail display, not rough courier networks.

Artwork Placement on the Central Crease

To allow the carton to ship flat, a straight vertical crease runs down the center of the bowed side panels. Artwork and branding should be placed with this crease in mind, avoiding critical text directly over the fold.

Adjusting the Curve and Flaps

Curve Severity

The width of the lens shape at the corners dictates how dramatically the side panels bow. This can be adjusted, but sharp curves should be tested to ensure the chosen board caliper does not crack or fail to erect properly.

Adding Tuck Closures

If tape or glue is not viable for your fulfillment process, the top and bottom flaps can be redesigned to include standard tuck tabs and friction locks, improving manual packing speed.

Flap Overlap Depth

The top and bottom flaps can be adjusted for full overlap or partial overlap depending on the chosen sealing method and the weight of the product being packed.

Board and packing details

Board grain direction

For the smoothest curve, the paperboard grain direction should run parallel to the height of the carton. This helps the side panels bow naturally without resistance or surface cracking.

Additional notes

Vertical compression limits

Because the side panels are already bowed, they do not bear heavy top-down weight well. Palletizing these cartons benefits from careful planning and protective outer packaging.

Related Packaging Styles

FAQs

Material and Fit

Can this carton be made from corrugated board?

Generally, no. The curved corner creases rely on a smooth, flexible material like folding boxboard (FBB) or solid bleached board (SBB) to bow correctly. Corrugated flutes tend to crush and fold irregularly along curved lines, ruining the aesthetic.

Assembly and Closure

Does this box lock closed on its own?

No. The top and bottom use full-overlap flaps without tuck tabs. Sealing the carton typically involves adhesive, clear wafer seals, or branded labels.

Shipping and Storage

How is this carton delivered?

It is delivered glued and folded completely flat. A central crease on the side panels allows it to lay flat. When you squeeze the edges, it opens into its final curved shape.

Protection and Route

Is this carton strong enough for parcel shipping?

Not on its own. The bowed side panels reduce its rigidity and vertical compression resistance. It is designed as a primary retail package and should be placed inside a sturdy corrugated master carton for shipping.

Modifications

Can we change how much the sides bow?

Yes, the severity of the curve can be adjusted in the template. However, aggressive curves should be tested with your specific board choice to ensure the material does not crack under tension.

Assembly and Closure

Can this be packed on an automated line?

It depends on the equipment. While it can be glued on standard straight-line folder-gluers, the bowing action during erection may interfere with standard automated cartoning machines. Manual loading or specialized equipment trials are usually necessary.

Shipping and Storage

How does the carton fold flat if the sides are curved?

A central vertical crease on the side panels allows the box to collapse completely flat for shipping. When the box is popped open, this crease straightens out, and the corner creases force the sides to bow.

Print and Finish

Does the curved shape affect how artwork is printed?

The printing process is standard, but designers should account for the central vertical crease on the side panels and the visual distortion of the curve when placing logos or text.
