ECMA F20.01.00.00

Two-Piece Domed Presentation Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Two-piece set: domed lid and double-wall tray
  • Usually involves manual assembly and corner gluing for the lid
  • Well-suited for luxury retail; often paired with an outer shipper for transit

About this product

This premium two-piece folding carton combines a tensioned, curved-top lid with a rigid double-wall base tray. Designed for luxury retail, cosmetics, and high-end confectionery, it delivers a striking unboxing experience with clean, finished edges and a distinct architectural shape.

Because the domed lid relies on glued corner webs to hold its tension, and the base tray uses 180-degree roll-over walls, this package usually involves manual assembly. It trades packing speed and stacking efficiency for exceptional visual impact on the retail shelf.

Common uses

  • Luxury cosmetics
  • Premium confectionery
  • Limited edition retail kits
  • High-end apparel accessories

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Premium Retail and Presentation Uses

Luxury Cosmetics and Fragrances

The domed lid provides a high-end architectural look that stands out on retail shelves, while the double-wall tray offers a rigid, premium base for heavy glass bottles or jars.

Premium Confectionery and Chocolates

Often used for limited-edition assortments. The thick, rolled edges of the base tray frame the product cleanly without exposing raw board edges.

Corporate Gifting and Press Kits

The unique shape and substantial feel make it an excellent choice for presentation kits where the unboxing experience is the primary goal.

High-End Apparel Accessories

The domed lid provides a soft, pillow-like presentation that complements silk scarves, ties, or leather goods, while the rigid tray protects the item from side impacts.

Who Should Consider This Package

Low-Volume, High-Margin Retail

Because the lid relies on manual gluing to hold its tensioned shape, and the base involves sequential folding, this package is best suited for high-value goods where assembly labor is absorbed by the product margin.

Boutique Brands and Limited Runs

The package can be produced using standard flatbed die-cutting, making it accessible for shorter runs, provided the fulfillment team is prepared for the manual setup.

Seasonal or Promotional Campaigns

Brands launching holiday sets or special editions often use this package when the unboxing experience justifies the manual assembly and specialized transit packaging.

When to Choose a Standard Telescopic Box

When flat stacking is a priority

The domed lid is not designed to support heavy vertical loads. If the finished goods will be stacked on pallets or retail shelves without protective master cartons, a standard flat-top telescopic box (like the ECMA B10 series) is a better alternative.

When automated packing is planned

The tensioned corner webs of the lid and the 180-degree roll-over walls of the base tray are very complex for standard erecting machinery. High-speed lines should evaluate simpler glued trays.

Board, Grain, and Assembly Decisions

Board Caliper and Grain Direction

The lid benefits from a board flexible enough to bow smoothly without cracking the printed surface, while the base tray relies on precise scoring to ensure the 180-degree roll-over walls seat properly. Grain direction should run parallel to the straight creases to prevent the dome from forming faceted ridges.

Assembly Labor and Fixtures

The base tray locks via friction, but the lid's corner webs are glued while the dome is held in tension. Buyers should plan for manual assembly time and potentially custom jigs to hold the lid square while the adhesive sets.

Outer Transit Packaging

This is a primary presentation package. It often pairs with a rigid outer shipper to protect the dome from crushing during parcel or courier transit.

Print and Finish Placement

The curved top panel is the primary display surface. High-build varnishes or heavy foils should be tested to ensure they do not crack when the board is forced into its tensioned dome shape.

Adjusting the Dome and Tray Fit

Dome Height and Curve Depth

The depth of the curved creases dictates how high the lid bows. A deeper curve increases visual impact but places more tension on the glued corners and increases the risk of board cracking.

Tray Wall Thickness

The base tray's double walls can be adjusted for different board calipers. The layer step crease is tuned to the board thickness so the inner walls fold cleanly without binding.

Corner Bevel Angles

The angle of the webbed corners on the lid can be adjusted. This changes how the corners fold inward and affects the tension distribution across the domed panel.

Board and packing details

Friction-Locked Base Tray

The base tray (variant F20.01.00.00.a) is designed to assemble without glue. It uses extended terminal flaps that wedge against each other to hold the double walls securely in place.

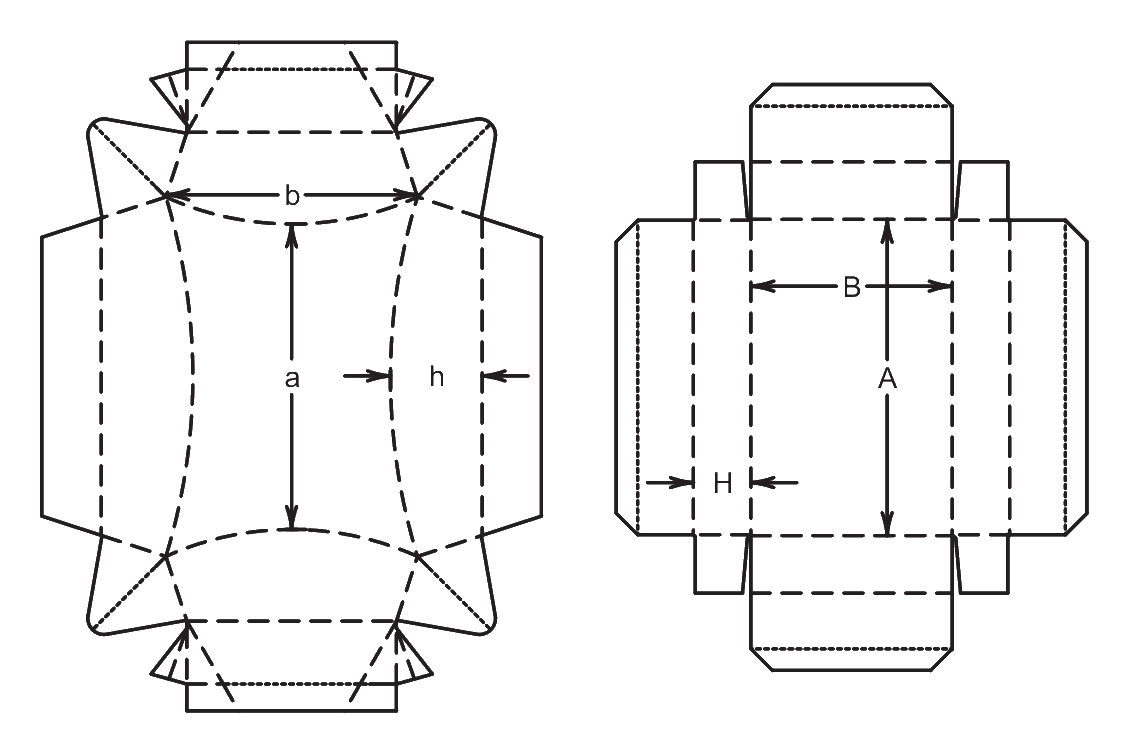

Lid and Base Components

Domed Lid (F20.01.00.00)

The top component, featuring curved creases that force the central panel into a tensioned arch when the side walls are folded down.

Double-Wall Base Tray (F20.01.00.00.a)

The bottom component, featuring straight creases and 180-degree roll-over walls that create a thick, rigid frame for the product.

Additional notes

Score Cracking Risk

Because the lid is forced into a curve and the base tray uses 180-degree folds, heavy coatings or laminations should be tested on physical prototypes to ensure the printed surface does not crack under stress.

Related Presentation Boxes

FAQs

Assembly and Production

Does this package use glue?

The base tray is friction-locked and unglued. However, the domed lid uses adhesive on its webbed corners to hold the curved top in tension.

Can this box be erected automatically?

The 180-degree roll-over walls of the base and the tensioned gluing of the lid typically involve manual assembly or specialized custom fixtures.

Shipping and Handling

Can I ship this box through parcel networks?

The domed lid is vulnerable to vertical pressure. It is usually packed inside a rigid corrugated outer shipper for courier or parcel transit.

Materials and Print

What board suits the domed lid?

A high-quality folding boxboard (FBB) or solid bleached board (SBB) offers a good balance of stiffness for the walls and flexibility for the dome. Heavy corrugated board does not bow smoothly and is generally avoided.

Design and Fit

Can I add a window to the domed lid?

Adding a window cutout to the curved top panel is risky, as it weakens the tensioned dome and may cause the board to buckle or fold unevenly.

How does the base tray achieve its thick walls?

The tray uses a roll-over design where the side panels fold up, then roll 180 degrees inward, trapping corner tabs and creating a hollow, double-thick wall with no exposed raw edges.

How is the dome shape maintained?

The dome is created by folding the end walls along curved creases. It stays in tension because the webbed corner flaps are glued to the adjacent walls, locking the 90-degree corners in place.

Assembly and Production

Does the base tray use a separate cutting die?

Yes, the domed lid and the double-wall base tray are two separate components that are produced with their own flatbed die-cutting tools and board specifications.
