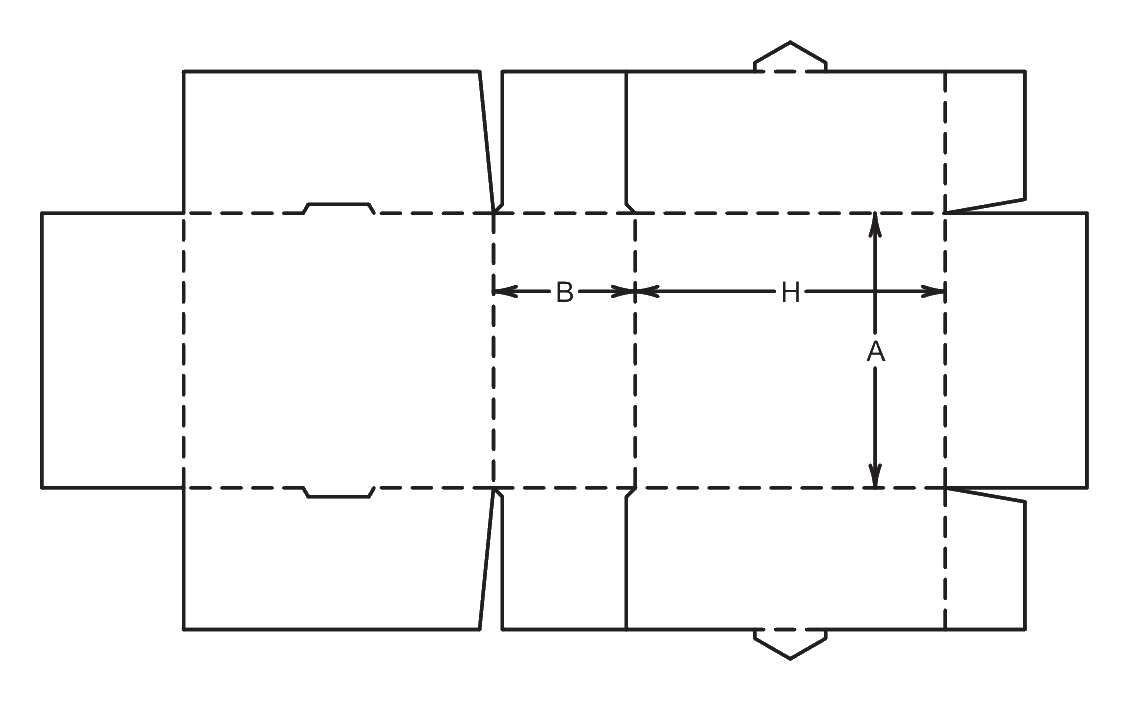

ECMA F60.07.00.00

Double-Locked Folding Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • 100% glueless construction with mechanical side locks
  • Double-thick side walls provide clean retail presentation
  • Delivered completely flat to maximize storage and shipping density

About this product

A glueless, wrap-around folding carton that relies entirely on mechanical tongue-and-slit locks to form double-thick side walls. Delivered completely flat, it eliminates adhesive from the manufacturing process while providing a clean, substantial presentation for retail and kitted goods.

Because the side walls involve multiple manual folding and locking steps to erect, this style trades packing speed for flat-shipping efficiency and a completely glueless construction. It is a strong fit for manual fulfillment, low-volume kitting, or sustainability-driven projects where adhesive is restricted.

Common uses

  • Manual kitting for gift sets or software.
  • Adhesive-free packaging programs.
  • Premium retail presentation requiring clean side walls.
  • On-demand store assembly for retail branches.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Manual kitting and retail presentation

Manual kitting and fulfillment

Well-suited for gift sets, software, books, and flat-packed retail items where assembly happens by hand and flat storage before use is a priority.

Adhesive-free packaging programs

Fits sustainability initiatives or clean-room environments that restrict standard folder-gluer adhesives, relying entirely on paperboard mechanics.

Premium retail presentation

The double-layered side walls create a clean, substantial feel on the shelf without exposed raw edges, offering a high-end look for consumer goods.

On-demand store assembly

Useful for retail branches that receive flat blanks and assemble boxes only when a customer makes a purchase, saving back-room storage space.

Specialty retail and flat-pack distribution

Specialty retail and boutique brands

Brands that prioritize unboxing experience and clean lines often choose this style for its solid, double-wall construction and uninterrupted front and back display panels.

Flat-pack distributors

Operations that need to ship empty packaging to multiple fulfillment centers benefit from the zero-trapped-air delivery state, as the unglued blanks stack extremely densely.

Clean-room and medical kitting

Operations that restrict standard folder-gluer adhesives often rely on paperboard mechanics to form the package without introducing foreign materials.

When to compare glued or double-tuck cartons

High-volume or automated packing

If packing speed is critical or volume justifies automated folder-gluer production, a glued-side carton is noticeably faster for operators to erect.

Symmetric opening requirements

If both ends of the carton need to open identically, rather than having a solid base and a single top opening, a double-tuck variant is worth evaluating.

Board caliper, labor, and shipping protection

Board caliper and tear strength

The mechanical locks need precise tuning to the board thickness. The chosen board should have sufficient tear resistance to prevent the locking tongues from ripping during manual assembly.

Assembly labor burden

The multi-step folding sequence adds considerable time to fulfillment. Buyers should weigh this labor cost against the savings from bypassing the factory gluing process.

Grain direction

Grain direction should align with the locking tabs to help them bend without snapping during insertion, while still allowing the long vertical folds to crease cleanly.

Outer shipping protection

Because the mechanical locks may disengage under heavy lateral impact, buyers should decide early if the carton will travel inside a master shipper or require a separate mailer for parcel transit.

Lock tuning and window additions

Lock hole and tongue tuning

The slit length and tongue width can be adjusted to ensure a secure friction fit for different board calipers, preventing the box from unfolding under pressure.

Window patching

A window can be added to the large front or back panels for product visibility, though this adds a manufacturing step and may affect the flat-pack density.

Dust flap coverage

The top and bottom dust flaps can be extended to close gaps, helping retain smaller kitted components and preventing dust ingress.

Board and packing details

Parcel shipping and outer sealing

The mechanical locks may disengage under rough handling or lateral impacts. For courier networks, an outer shipper or tamper-evident security tape should be tested to keep the carton intact.

Related folding cartons

FAQs

Closure and assembly

Does this carton use adhesive?

The structure relies entirely on mechanical tongue-and-slit locks to hold its three-dimensional shape, making it a completely glueless design.

Production and packing

Is this carton suitable for automated packing lines?

The multi-step locking sequence is designed for hand assembly. Automated erection usually involves specialized forming equipment, so high-speed lines often use glued-side cartons instead.

Materials

What board types fit this design?

Standard folding boxboard offers a good balance of stiffness and foldability. Heavy uncoated boards may crack at the multiple folds, and micro-flute corrugated is often too thick for the intricate locks to engage properly.

Shipping and route

How does this carton handle parcel shipping?

The mechanical locks may disengage if the box is crushed or dropped. For individual parcel shipping, an outer mailer or strong security tape should be tested.

Production and packing

How is the carton delivered before packing?

It ships completely flat as an unglued blank, which maximizes pallet density and reduces inbound freight space.

Comparison

What is the main tradeoff of a glueless carton?

It trades packing speed for flat-shipping efficiency. Bypassing the factory folder-gluer saves manufacturing steps, but the manual folding and locking process adds time to fulfillment.

Materials

How does board thickness affect the side locks?

The lock slits and tongues must be tuned to the exact board caliper. If the board is too thick, the locks may crush during assembly; if too thin, they may slip under pressure.

Adjustments

Can a display window be added to this carton?

Yes, a window can be cut into the large front or back panels. However, adding a film patch introduces a manufacturing step that may conflict with completely glueless sustainability goals.
