Retail Display And Chaining Applications
Pegboard Hanging Chains
The tongue-and-hole design allows multiple loaded sleeves to hang from a single retail hook. The top sleeve bears the weight of the chain, making board tear resistance a critical factor for heavier products.
Shelf-Ready Stacking
When laid flat or stood upright on a shelf, the interlocking feature keeps the products aligned and prevents the display from becoming disorganized as shoppers remove items.
Cross-Merchandising Bundles
Retailers can link related products together on the floor, creating impromptu promotional chains without requiring custom multi-pack boxes.
Gravity-Fed Dispensing
Linked sleeves can be loaded into vertical retail channels, allowing the bottom unit to be removed while the rest of the chain slides down into place.
Merchandising And Promotional Contexts
Point-of-Purchase Merchandising
Useful for lightweight cosmetics, hardware components, or promotional items that benefit from vertical display without requiring complex, multi-tier permanent fixtures.
Kitting and Multi-Packs
Allows brands to ship individual units that retail staff can quickly link together into promotional bundles or cross-merchandising displays on the store floor.
Lightweight Retail Goods
Because the hanging tongue bears the weight of the entire chain, this package is most effective for lighter items that will not tear the board under sustained tension.
When To Consider Closed Cartons Or Standard Sleeves
When the product needs full enclosure
Because the ends are open, small parts or items that lack a rigid shape can slip out. If the product requires complete containment or dust protection, evaluate a standard straight-tuck or reverse-tuck carton.
When shipping directly to consumers
This sleeve offers no transit protection on its own. For ecommerce or parcel shipping, the product must either be packed in a dedicated mailer or the sleeve design should be swapped for a fully closed box.
Fit, Board Strength, And Linking Decisions
Board Tear Resistance
If the sleeves will be hung in a long chain, the top tongue must support the combined weight. Solid Bleached Sulfate (SBS) or high-quality folding boxboard is often required to prevent the neck of the tongue from tearing.
Product Friction Fit
The internal folded tabs act as stops, but the product's own dimensions must closely match the sleeve's interior to prevent it from sliding out of the open ends during handling.
Master Carton Strategy
Decide whether the sleeves will be shipped to retail flat (requiring store staff to load and link them) or pre-loaded and packed into a master shipper. Pre-loading saves retail labor but requires careful master carton sizing to prevent the products from escaping the open ends during transit.
Artwork Placement Around Cutouts
The protruding tongue and recessed lock-hole interrupt the top and bottom edges of the main panels. Critical graphics or text should be kept clear of these functional areas.
Adjusting The Interlock And Product Grip
Tongue and Lock-Hole Tolerances
The width and taper of the interlocking tongue can be adjusted to balance insertion ease with holding strength. A tighter fit holds better but requires more effort from retail staff to link.
Internal Tab Sizing
The depth of the internal folded stops can be modified to grip specific product shapes more securely, ensuring the item sits flush within the sleeve.

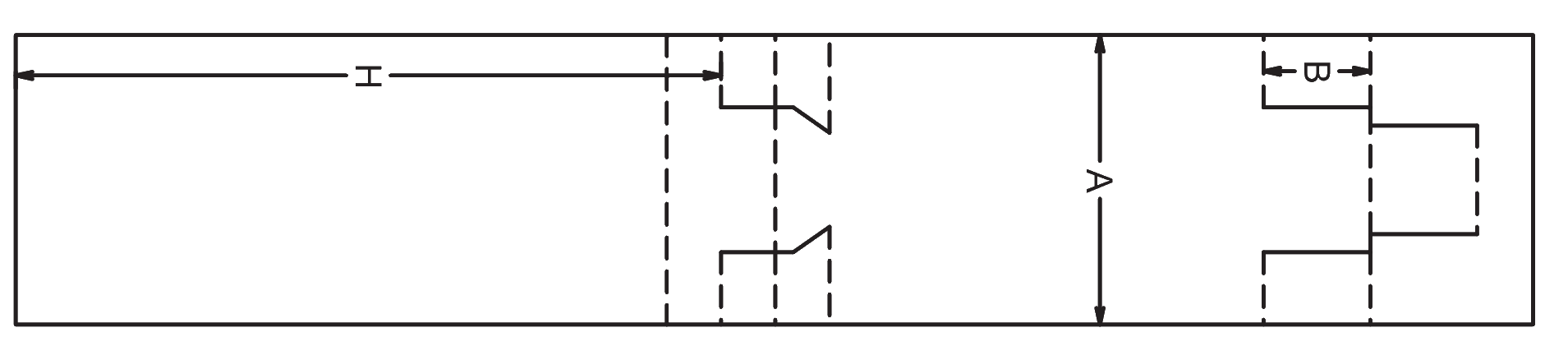

Main Body Dimensions
The length and width of the sleeve can be scaled to fit the primary product, provided the interlocking tongue remains proportional to the overall package weight.
Board and packing details
Production and Assembly Route
The sleeve is folded and glued along a single side seam on a straight-line folder-gluer. It arrives flat (KDF) and is popped open by squeezing the edges. Loading the product and linking the sleeves is a manual process.
Additional notes
Prototyping the friction fit
Because retention relies on friction and internal tabs rather than closed flaps, physical prototyping with the actual product is highly recommended before a full production run.
Tear risk at the tongue neck
The narrowest part of the protruding tongue bears the most stress when hanging. If the board is too weak or the product too heavy, this is the most likely point of failure.
Related Retail And Display Packaging
FAQs
Product Fit & Retention
How does the product stay inside the open sleeve?
The sleeve relies on internal folded tabs that act as stops, combined with the friction of the product against the inner walls. The product must be sized accurately to the sleeve for this to work reliably.
Display & Handling
How much weight can a linked chain of sleeves hold?
This depends entirely on the board grade and the width of the interlocking tongue. Heavier products require stronger, tear-resistant board and may limit the number of units that can be safely hung in a single chain.
Are the sleeves shipped already linked together?
Usually, no. They are shipped flat to the filler, popped open, loaded, and then either packed loose in a master carton or linked by retail staff at the point of display.
Route & Shipping
Can this sleeve be used for parcel shipping?
No. The open ends provide no protection against product loss or contamination during rough transit. It is strictly a primary retail package and requires an outer master carton for shipping.
Print & Finish
Does the interlocking mechanism affect the print area?
Yes. The protruding tongue and the recessed lock-hole interrupt the top and bottom edges of the main panels. Critical graphics or text should be kept clear of these functional cutouts.
Assembly
Is loading and linking automated?
While the side seam is glued automatically, popping the sleeve open, inserting the product, and pushing the tongue into the next sleeve's lock-hole is typically a manual process.
Materials
What board grade is recommended for hanging chains?
Because the top tongue bears the weight of the entire chain, tear-resistant boards like Solid Bleached Sulfate (SBS) or strong folding boxboards are often necessary to prevent the hanging tab from failing.
Product Fit & Retention
Can the internal tabs be adjusted for different product shapes?
Yes. The depth and angle of the internal folded stops can be modified during the structural design phase to better grip specific items, though physical prototyping is always recommended to verify the friction fit.
