ECMA F70.01.00.00

Pillow Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Ships flat and opens with a gentle squeeze
  • Overlapping curved flaps close via board tension
  • Requires an outer carton for parcel transit

About this product

The pillow box is a classic, single-piece retail package that ships flat and opens into an elegant curved shape. It relies on the natural tension of paperboard to stay closed, with overlapping curved flaps that lock together without external adhesive.

Because the curved panels bow outward to create volume, this package is a strong choice for lightweight boutique items, cosmetics, and gifts. However, its convex shape means it cannot be stacked easily on shelves, and it requires a separate outer carton for parcel shipping.

Common uses

  • Boutique jewelry and cosmetics
  • Small giftware and promotional items
  • Rolled apparel and textiles in slimmer profiles

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical uses for pillow packs

Boutique and gift presentation

The curved shape and clean lines provide an elegant unboxing experience for jewelry, cosmetics, and small accessories. The friction-fit flaps are easy for consumers to open and reclose.

Apparel and soft goods

Wider, slimmer profiles work well for rolled textiles, scarves, or lightweight clothing that naturally conforms to the curved interior without pressing too hard against the end flaps.

Cosmetics and personal care

Small bottles, tubes, or compacts that fit the curved profile benefit from the premium presentation, provided the items are not too heavy for the tension closure.

Promotional items and event giveaways

Lightweight branded items handed out at events fit well in this package, as it is quick to assemble and offers a large, uninterrupted print surface.

Retail and fulfillment situations

In-store retail

Pillow packs are often used at the checkout counter for fast, attractive gift wrapping. Because they do not stand upright on their own, they are typically displayed in dump bins, baskets, or specialized trays.

E-commerce fulfillment

While they require an outer shipper for parcel transit, pillow packs are frequently used as an inner presentation layer inside a standard corrugated mailer, adding a premium feel to the unboxing experience.

Event and corporate gifting

Used as a quick-packing, elegant handout for conferences or employee gifts, where the flat delivery saves storage space before the event.

When to consider a different box style

Heavy or rigid products

The tension-based closure may release if a heavy or bulky product presses too hard against the end flaps. A standard straight-tuck or reverse-tuck carton offers more secure retention for heavier items.

Stackable shelf displays

The convex panels prevent stable vertical stacking. If the product must be stacked high on a retail shelf, a flat-sided folding carton is a better choice.

Board, print, and packing choices

Board grade and flexibility

This package relies entirely on the paperboard's ability to bow smoothly without cracking. Folding boxboard (FBB) or solid bleached sulfate (SBS) is usually required. Standard corrugated board is generally too stiff and will facet or crack along the curves.

Grain direction

The paperboard grain should typically run parallel to the straight side creases. This allows the main panels to bow smoothly while maintaining the stiffness needed to keep the curved end flaps locked.

Surface finishes

Heavy varnishes or rigid laminations should be tested before a full production run. Forcing a rigid coating into a tight curved radius can cause surface cracking.

Packing labor and fulfillment speed

The side seam is glued by the manufacturer, so packers only need to open the sleeve and fold the ends. This makes it efficient for hand-packing operations.

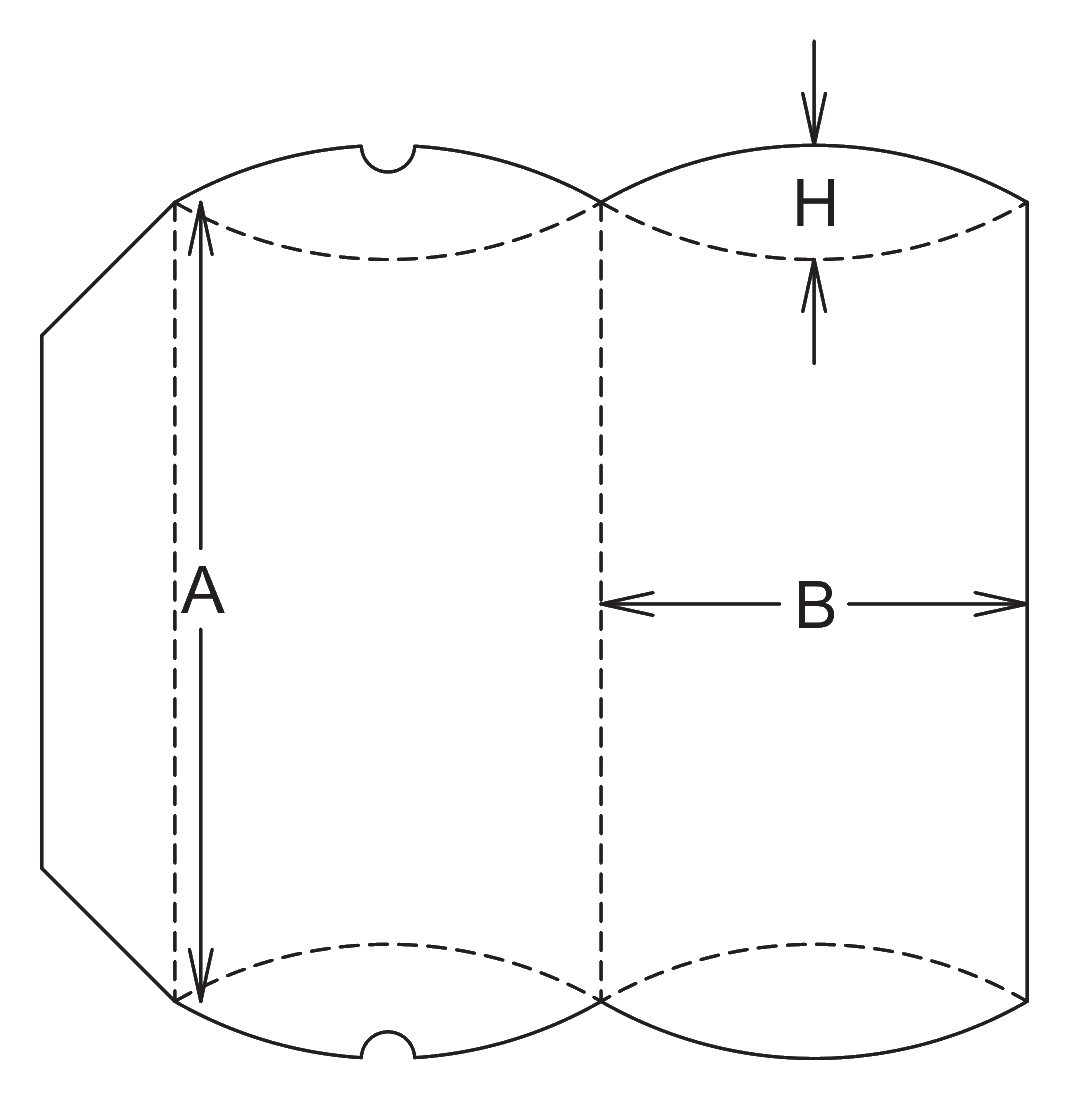

Adjusting the curved profile

Arc depth and volume

The depth of the curved cut determines how thick the final 3D pillow will be. Adjusting this curve changes the internal volume and the tension required to close the flaps.

Thumb notch sizing

The crescent cutout on the outer flap can be resized for easier finger access or modified into a hanging hole for pegboard displays.

Hanging features

Adding a die-cut hole to one of the end flaps allows the package to be hung on retail pegboards, which is useful since the curved ends prevent it from standing upright.

Board and packing details

Flat delivery and storage

The side seam is glued during manufacturing, allowing the sleeves to pack densely in flat shipping boxes. This minimizes inbound freight costs and warehouse storage space before packing.

Template variants

F70.01.00.00.a

A variant that adds specific parameters to control the exact height and overlap of the curved end flaps. This is useful when adjusting the closure tension for different board thicknesses.

Additional notes

Print panel and scuff risk

The convex main panels create a prominent billboard for graphics, but the highest point of the curve is susceptible to scuffing if the boxes rub against each other during transit.

Sample testing for closure tension

Always request a physical prototype with the exact chosen board grade. If the board is too thin, the flaps will lack the tension to stay closed; if it is too thick, the creases may crack.

Related retail packaging

FAQs

Shipping and route

Can I ship a pillow box directly in the mail?

No. The curved shape is easily crushed, and the friction-fit flaps may open during rough handling. It should be placed inside a rigid corrugated mailer or outer carton for parcel shipping.

Closure and assembly

Does this package require external adhesive to close?

The side seam is glued during manufacturing. The end flaps interlock using the natural tension of the bowed paperboard and do not require external adhesive for standard retail presentation.

Material and fit

Can I make a pillow box out of corrugated board?

Standard corrugated board is usually a poor fit because the flutes resist smooth bowing and tend to crack or fold irregularly along the curved creases. Paperboard is highly recommended, though micro-flutes might work for very large sizes if physically tested.

Closure and assembly

How is this package assembled by the packer?

It arrives flat. The packer squeezes the two folded edges inward to open the tube, loads the product, folds in the inner curved flaps, and then folds over the outer notched flaps.

Modifications

Can I add a plastic window to a pillow box?

Adding a window patch to the main bowed panel is risky because the tension can cause the plastic film to wrinkle or detach. This requires physical prototyping to verify.

Retail display

How do I display these in a store if they do not stand up?

Because of the curved ends, pillow boxes are typically displayed lying flat, placed in dump bins, arranged in custom display trays, or hung from pegboards if a hanging hole is added to the flap.

Print and finish

Does the curved shape affect artwork placement?

Yes, rigid coatings or heavy varnishes can crack along the curved creases, and the highest point of the convex panel is prone to scuffing. Artwork should account for the 3D bowing.

Product fit

What types of products are a poor fit for this box?

Heavy, bulky, or sharp-edged items are not recommended, as they can press against the end flaps and cause the tension-based closure to release.
