ECMA X86

Separate Carrying Handle with Side Wall for Folding Cartons

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Two-piece design: outer carton and separate handle insert
Transfers lifting weight away from the outer closure
Insert can double as an internal product partition

About this product

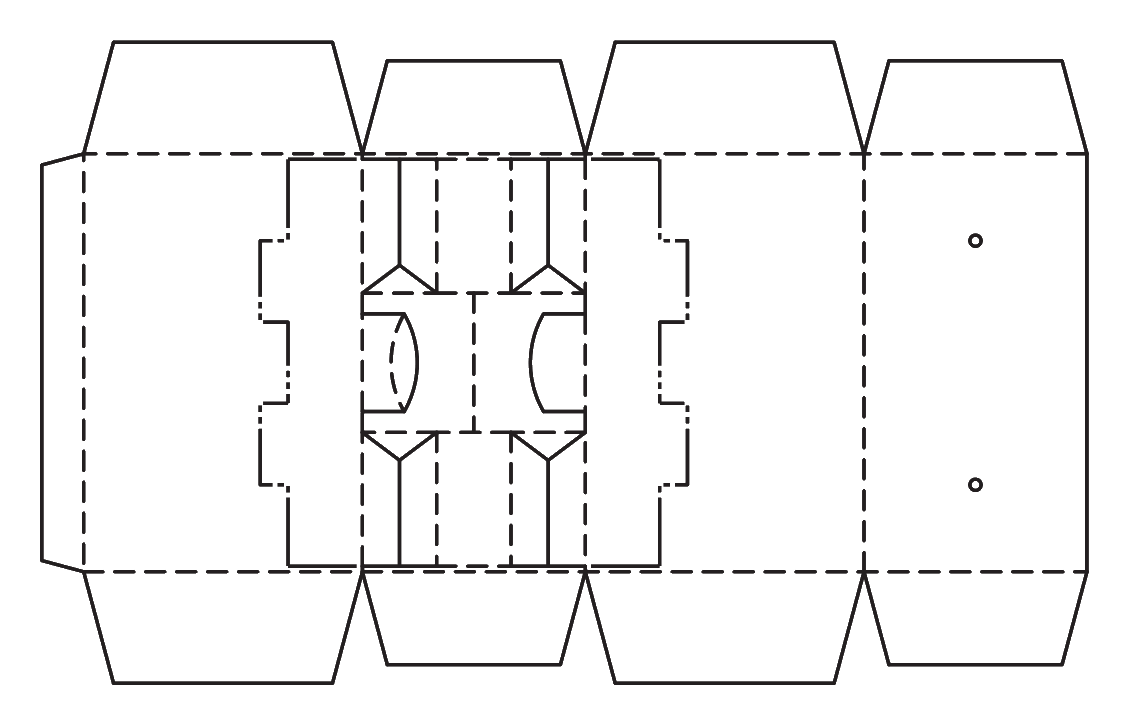

ECMA X86 specifies a separate carrying handle used with a side wall. It is a Group X feature used with a folding-carton design. The illustrated carton is one host for the handle.

The host carton and intended carry load should be considered together for the finished package.

Common uses

Small appliances
Heavy hardware kits
Beverage multi-packs
Premium sample kits
Industrial parts in retail channels

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Depth

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the product going inside?

Will the internal insert need to separate multiple items?

How will these boxes be shipped to retail?

What base carton style should use this feature?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Heavy Retail and Multi-Part Packing Jobs

Heavy Small Appliances and Electronics

Products with dense, concentrated weight can easily rip a standard paperboard handle. The internal insert provides structural reinforcement, allowing customers to carry heavy items safely from the store.

Beverage and Liquid Multi-Packs

Carrying multiple bottles or jars requires high tear resistance. The U-shaped insert not only provides a strong handle but can also act as a central divider to keep glass items from clinking.

Hardware and Tool Kits

Dense metal components require a handle that will not fail during transit from the hardware store. The separate insert bears the load directly from the base or sides, bypassing the weaker top flaps.

Heavy Bulk Food Items

Large volumes of dry goods or specialty foods sold in club stores benefit from a reinforced carry method that keeps the primary branding intact.

Retail Channels and Premium Kits

Premium Retail Display

Because the handle is a separate piece, the outer box does not need complex structural folds that interrupt the graphics. The primary carton remains a clean, six-sided billboard for branding.

Club Store Packaging

Bulk retail environments demand easy grab-and-go handling. The reinforced insert ensures the package survives the trip from the pallet to the customer's car without tearing.

Sample and Promotional Kits

High-value presentation kits often contain multiple heavy items like catalogs, binders, or heavy samples. The internal insert organizes the contents while providing a secure carry method.

Evaluating Simpler Handle Alternatives

Lightweight products

If the product is relatively light, a two-piece assembly adds unnecessary packing labor. Evaluate cartons with integrated handles formed directly from the top closure flaps, which are faster to pack.

High-speed automated packing lines

The separate insert requires manual folding and insertion before the outer box is closed. If the packing line relies on fully automated case erectors and sealers, a one-piece wrap-around carrier or a standard shipper without a handle may be a better fit.

Material, Fit, and Assembly Choices

Mixed board choices for strength and display

Because the insert is hidden, it can be cut from a heavier, unprinted kraft board or even corrugated board for maximum strength, while the outer box uses a thinner, high-quality printed folding board.

Internal clearance for the U-shaped insert

The insert's side walls fold down into the box, taking up internal space. You must account for this U-shaped profile when calculating the internal dimensions and how the product will sit inside.

Base support vs. side friction

The insert can be designed to reach all the way to the floor of the carton to lift from the bottom, or it can rely on friction and product shape to hold the weight. Bottom-reaching inserts offer the highest tear resistance.

Packing line labor allocation

Since this is a two-piece design, packers must erect the outer box, fold the insert, place it over the product, and guide the handle through the top slot. This added labor should be factored into the overall fulfillment plan.

Modifying the Insert and Handle Profile

Insert Wall Depth

The side walls of the handle insert can be extended all the way to the floor of the box for maximum weight transfer, or kept short if they only need to clear the top of the product.

Handle Cutout Shape

The opening for the hand can be adjusted for comfort, adding fold-down flaps to soften the lifting edge for heavier loads.

Partition Cutouts

If the insert is used to separate multiple items, the side walls of the U-shape can feature custom cutouts to cradle specific bottle necks or product contours.

Board and packing details

Master Shipper Compatibility

The protruding handle prevents these cartons from stacking flat. For courier transit or palletizing, they typically require a master shipper, or the handle must be designed to fold flat until it reaches the retail floor.

Handle Comfort Styles

Fold-Flat Handles

The handle portion of the insert can be scored to fold flush against the top panel for easier stacking during transit, popping up only when needed for retail display.

Additional notes

Clearance for the insert walls

The internal side walls of the handle insert require physical space. Ensure your product dimensions allow room for these walls to slide down without crushing the contents.

FAQs

Assembly and Packing

Does the handle insert slow down packing?

Because it is a separate piece, packers must fold the insert, position it inside the box, and carefully route the handle through the top slot before closing. It makes sense for high-value or heavy items where the added security justifies the labor.

Materials

Does the insert have to be the same material as the box?

A common strategy is to use a strong, unprinted board for the hidden insert to handle the weight, while using a premium, coated board for the outer display box.

Product Fit

Can the insert act as a product divider?

The insert naturally forms an inverted U-shape inside the carton. These inner walls can be designed to drop between products, keeping them separated during transit.

Weight and Route

Is this suitable for parcel shipping?

This style is primarily designed for retail carry-out. If shipping via parcel networks, the protruding handle can catch on sorting equipment. It usually requires a master shipper for courier transport.

Internal Clearance

How much space does the insert take up inside the box?

The insert requires physical space for its side walls, which fold down into the main compartment. The exact clearance depends on the board thickness used for the insert, but you must account for this U-shaped profile when sizing the outer carton.

Handle Comfort

Can the handle be made more comfortable for heavy items?

The opening can include fold-down flaps that create a wider, softer edge for the hand, reducing the sharp paperboard feel when carrying heavy loads.

Stacking

Can these boxes be stacked on a pallet?

Because the handle protrudes from the top, direct stacking is difficult unless the handle is scored to fold flat. For bulk transit, these cartons are usually packed into a larger corrugated master shipper.

Production Routing

Are the box and the insert produced together?

Because they are two distinct pieces, the outer carton and the internal insert are cut and prepared separately before being delivered flat for assembly.
