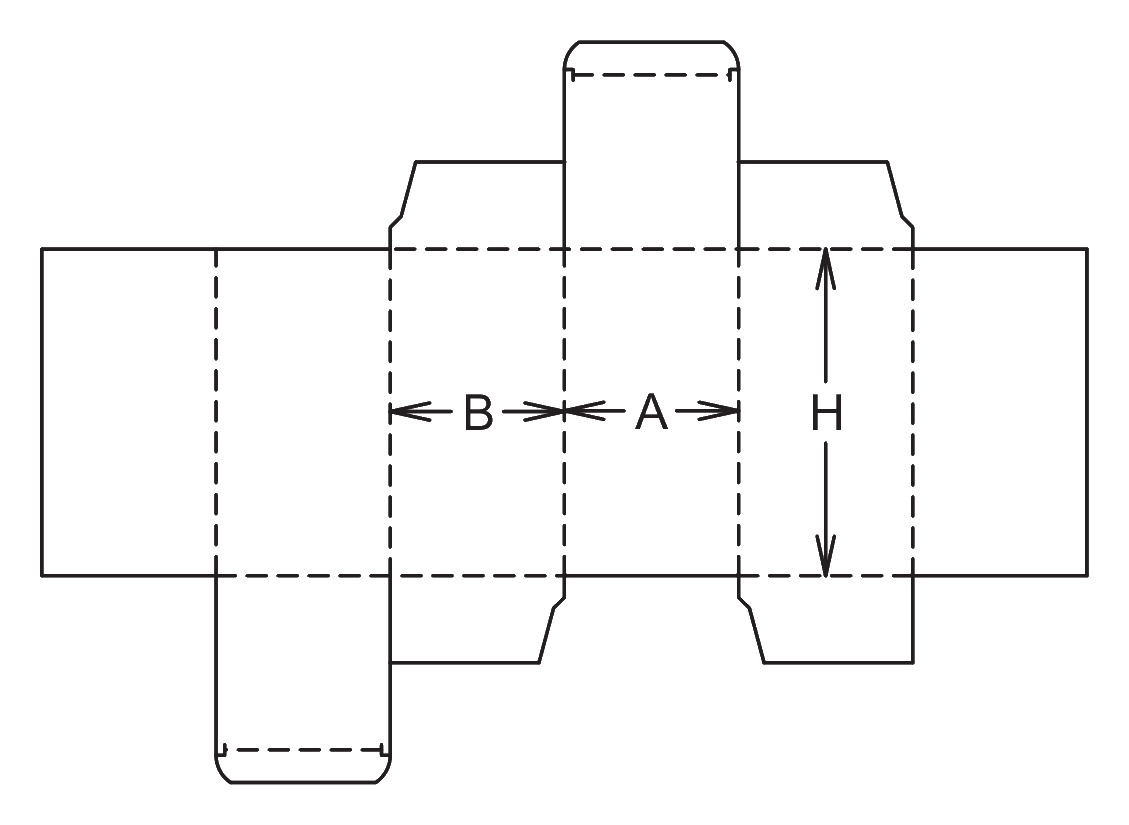

ECMA X73 specifies an extended double panel glued together. It is a Group X feature used with a folding-carton design. The illustrated carton is one host for the panel.
The host carton and display requirement determine how the panel is used in the finished package.
The double-thick construction makes this carton a practical option for hanging displays. When a euro-hole or round punch is added to the template, the two-ply board supports the product weight without tearing at the hook or leaning forward on the peg.
Shelf-Ready Vertical Branding
For products sitting on flat retail shelves, the tall header acts as a built-in billboard. The glued, folded edge provides a clean, finished look at the top while keeping the branding panel stiff and upright.
Point-of-Purchase Counter Bins
When small items are arranged in counter displays, the extended header ensures the primary branding remains visible even when the product tube is partially obscured by the display lip.
Multi-Variant Retail Groupings
For product lines with multiple variations, the tall header provides ample space for color-coding and clear variant labeling, helping shoppers distinguish between options on a crowded shelf.
Product Categories Using Rigid Headers
Cosmetics and Personal Care
Small, lightweight bottles and tubes often need extra vertical space for branding, ingredients, and regulatory text. The header provides this space without increasing the footprint of the main product compartment.
Hardware and Electronics Accessories
Cables, fasteners, and small components are frequently merchandised on pegboards. The reinforced header withstands the wear and tear of retail environments and repeated handling by shoppers.
Craft and Hobby Supplies
Lightweight craft items benefit from the high visibility of a hanging display. The rigid header keeps the presentation crisp, while the standard tuck base allows for quick hand fulfillment.
When to Consider Single-Ply or Fold-Down Headers
Very light products with strict cost limits
If the product is very light and the budget is tight, a single-ply header (ECMA X71) uses less board material and skips the secondary gluing step. However, single-ply headers are more prone to bending or flopping forward on the shelf.
Automated cartoning lines
The tall, rigid header often blocks the machinery used for automated top-loading or flap-closing. If the packing line relies on automation, a standard folding carton without an extended header is usually a more practical choice.
Base Closures, Hanging Holes, and Packing Setup
Hanging Hole Specifications
The base template provides the solid header board. Before production, the exact shape, size, and placement of the hanging punch, such as a standard euro-hole or a simple round hole, should be specified to match the target retail fixtures.
Base Closure and Product Weight
The standard template uses a friction tuck bottom, which is suitable for lightweight items. If the product is heavy enough to push through a friction tuck while hanging, the base should be upgraded to a crash-lock or auto-bottom closure.
Board Thickness and Header Rigidity
The two-ply header adds stiffness, but the underlying board caliper still matters. The chosen board should balance the need for a rigid, upright header against the folding behavior of the main carton body.
Print Layout for the Folded Header
Because the header panel folds completely over itself from the back, the front face of the display header and the main front panel of the box are printed on the same side of the flat sheet. This ensures consistent color and finish across the primary display surfaces.
Header Height and Base Modifications
Header Height Adjustments
The vertical height of the display panel can be extended or reduced to fit specific branding requirements or shelf-clearance limits. Taller headers increase the overall blank size and may need stiffer board to remain upright.
Base Closure Upgrades
While the default is a friction tuck, the bottom closure can be swapped for a lock-bottom or auto-bottom design to secure heavier items during hanging display.
Hanging Hole Shape
The solid header can be modified with a euro-slot for broad retail compatibility or a simple round punch for specific pegboard hooks.
Board and packing details
Blank size and material efficiency
Because the header panel folds completely over itself, the flat blank is noticeably taller than a standard carton. This reduces the number of cartons that can be nested on a single sheet, which increases the material cost per unit.
Additional notes
Print surface on the header
Because the header folds over from the back panel, the front face of the display header and the main front panel of the box are printed on the same side of the flat sheet, ensuring consistent color and finish.
A double-thick header designed to fold down against the back of the carton rather than standing freely.
FAQs
Packing and Assembly
Does the packing team have to fold and glue the header?
The converter folds and glues the header during manufacturing. The cartons are delivered flat, and the packer simply squeezes the edges to pop the main tube open.
Product Fit
Can this box hold heavy items on a pegboard?
The double-thick header is strong enough for hanging, but the bottom closure is the limiting factor. For heavier items, the standard friction-tuck bottom should be replaced with a lock-bottom or auto-bottom design to prevent the product from falling out.
Production Route
Is this carton compatible with automated packing lines?
The tall, rigid header panel often interferes with standard automated loading and flap-closing equipment. This style is best suited for hand-packing operations.
Design and Print
Does the box come with a hanging hole already included?
The structural template provides the solid double-thick board. The specific hanging hole, such as a euro-slot or round punch, is added to the design file based on your retail requirements.
Material and Board
Will the header flop forward on the shelf?
The 180-degree fold and glue process creates a rigid, two-ply board that resists bending. Choosing the right board thickness and grain direction during specification ensures the header remains crisp and upright.
Design and Print
How does the double-thick header affect the print layout?
Because the header folds over from the back panel, the front face of the display header and the main front panel of the box are printed on the same side of the flat sheet. This keeps colors and finishes consistent.
Product Fit
What changes if the product is too heavy for a standard tuck bottom?
If the product weight risks pushing through a friction tuck, the base can be upgraded to a crash-lock or auto-bottom closure for added security while hanging.
Adjustments
Can the header height be changed for different retail shelves?
The header height can be extended or reduced to match branding needs or shelf limits. Taller headers use more material and may need a thicker board to stay rigid.
A practical, retail-ready display carton that balances high-visibility branding with fast hand assembly.
