ECMA X52

Embedded Screw-Cap Opening for Folding Cartons

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Sloped top face for prominent spout presentation
  • Internal bracing panel secures the rigid plastic cap
  • Physical spout samples help finalize die-cut tolerances

About this product

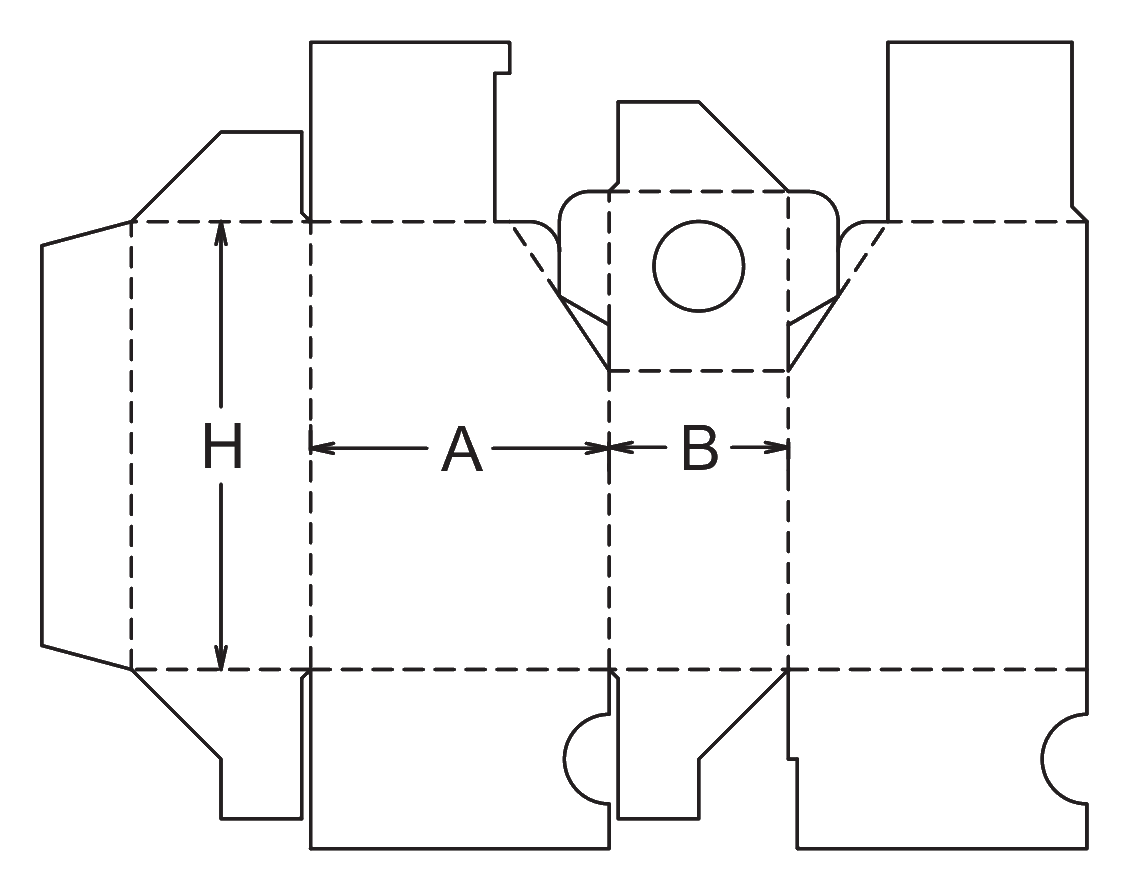

ECMA X52 specifies a screw cap embedded in a carton. It is a Group X feature used with a folding-carton design. The illustrated version uses a sloped top and internal bracing for a rigid plastic cap.

The chosen cap, host carton, and product format determine the opening, bracing, and assembly details.

Common uses

  • Detergent powders
  • Granular fertilizers and seeds
  • Specialty dry foods
  • Bag-in-box liquids requiring a rigid tap

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical Uses for the Sloped Spout Carton

Heavy Powders and Detergents

Ideal for cleaning products where users need to pour a controlled amount and securely reseal the package. The internal bracing helps keep the spout stable even when dispensing heavy contents.

Bag-in-Box Liquids

When paired with an internal bladder, the sloped top provides an ergonomic angle for a rigid tap or pour spout, making it a strong choice for specialty beverages or bulk liquid cleaners.

Granular Lawn and Garden Products

Useful for fertilizers and grass seed that require clean pouring and moisture protection between uses. The rigid spout allows for precise application.

Specialty Dry Foods

Fits bulk baking ingredients, grains, or pet foods that benefit from a reclosable, rigid pouring mechanism rather than a standard paperboard tear-out.

Industry and Product Fit

Retail Display Presentation

The angled front panel breaks up the visual monotony of standard rectangular boxes on the shelf, drawing attention directly to the dispensing feature and signaling convenience to the consumer.

Fulfillment and Assembly Methods

While the side seam is glued on standard equipment, erecting the base and seating the rigid spout into the internal brace often relies on specialized pick-and-place machinery or dedicated hand assembly.

Moisture and Barrier Needs

Because this carton often houses liquids or sensitive powders, the board choice frequently involves moisture-resistant coatings or coordination with an internal sealed bag.

When to Consider Alternative Carton Styles

Standard Dry Goods

If the product can be dispensed through a simple perforated paperboard tear-out or a standard tuck flap, a conventional rectangular carton will reduce material usage and assembly time.

High-Speed Standard Cartoning

If your packing line lacks specialized spout-insertion modules, consider a standard carton and rely on an internal sealed bag rather than an integrated rigid spout.

Key Decisions for Spout Integration and Assembly

Spout Sizing and Tolerances

The circular die-cut hole and the internal U-shaped brace must be sized to the exact millimeter of your chosen plastic spout's flange and neck. Physical samples of the spout help finalize the template.

Board Grade and Folding Endurance

The top extension involves multiple closely spaced folds to create the slope and internal brace. The chosen board should have excellent folding endurance to prevent cracking, while remaining stiff enough to resist downward pressure during capping.

Base Closure Selection

The standard template uses a snap-lock (1-2-3) bottom, which is secure for moderate weights but slower to erect by hand. For faster manual fulfillment, this top feature can be adapted to a crash-lock (auto-bottom) base.

Inner Bag Compatibility

If packaging liquids or fine powders, the carton must accommodate an inner bag. The internal bracing panels should be checked to ensure they do not pinch or puncture the bladder during assembly.

Modifying the Base and Top Angle

Slope Angle and Setback

The angle of the sloped front panel can be adjusted to change the presentation of the spout. Changing this angle alters the geometry of the internal bracing, requiring recalculation to ensure the spout remains fully supported.

Spout Cutout Position

The vertical placement of the circular cutout on the sloped face can be shifted, provided there is enough clearance for the internal bracing panel to fold and lock securely.

Base Style Integration

The X52 top closure is an auxiliary feature that can be applied to various carton bodies, including standard overlapping flap bases or auto-bottoms, depending on weight and assembly requirements.

Board and packing details

Material Efficiency and Blank Sprawl

Because the sloped face and internal bracing panels extend significantly from the top of the main body, the flat blank is much longer than a standard carton. This irregular shape can reduce the number of cartons that fit on a single sheet, affecting overall material efficiency.

Base Closure Variants

Alternative Base Styles

The X52 top closure is an auxiliary feature that can be applied to various carton bodies, including standard overlapping flap bases or auto-bottoms, depending on your weight and assembly requirements.

Additional notes

Capping and Uncapping Pressure

The internal bracing is designed to resist the downward force of applying the cap and the upward pull of removing it. Testing with the actual product and cap is critical to ensure the board does not tear or buckle during use.

Related Packaging Options

FAQs

Spout Integration

Do I need to supply the plastic spout before ordering?

Yes. The die-cut aperture and the internal bracing panel must be precisely matched to the physical dimensions of your specific spout's neck and flange. Physical samples help validate the fit.

Assembly and Packing

Can this carton be erected and packed automatically?

The side seam is pre-glued, but erecting the carton, folding the internal brace, and inserting the rigid spout often relies on specialized automated modules. Without this equipment, assembly and spout insertion are typically handled by hand.

Product Fit

Is the carton itself liquid-tight?

No. If you are packaging liquids, the carton should be paired with an internal bag-in-box bladder that attaches to the rigid spout.

Board and Material

What board is best for this design?

The design benefits from a board with excellent folding endurance to handle the complex top folds without cracking. If packaging heavy powders, the board should also be stiff enough to prevent the sloped face from bowing under capping pressure.

Shipping and handling

Can this carton be shipped individually in the mail?

The exposed rigid spout and sloped top are vulnerable to impact and crushing in loose parcel networks. It usually needs a protective outer shipping box for courier delivery.

Base Options

Can the bottom closure be changed to speed up manual packing?

Yes. While the standard design uses a snap-lock bottom, the sloped spout top can be integrated with a crash-lock (auto-bottom) base to reduce manual setup time.

Spout Integration

How does the internal bracing keep the spout secure?

A panel extends from the sloped face and folds down inside the carton. It features a U-shaped cutout that rests against the neck of the plastic spout, preventing it from pushing inward when a cap is applied.

Adjustments

Can the angle of the sloped top be changed?

Yes, the slope angle can be modified to change how the spout is presented. However, this requires adjusting the internal bracing geometry so the spout remains fully supported against the back wall.
