ECMA X46

Integrated Pour Spout Feature

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Mono-material dispensing solution
  • Reclosable friction-fit design
  • Applied to standard folding cartons

About this product

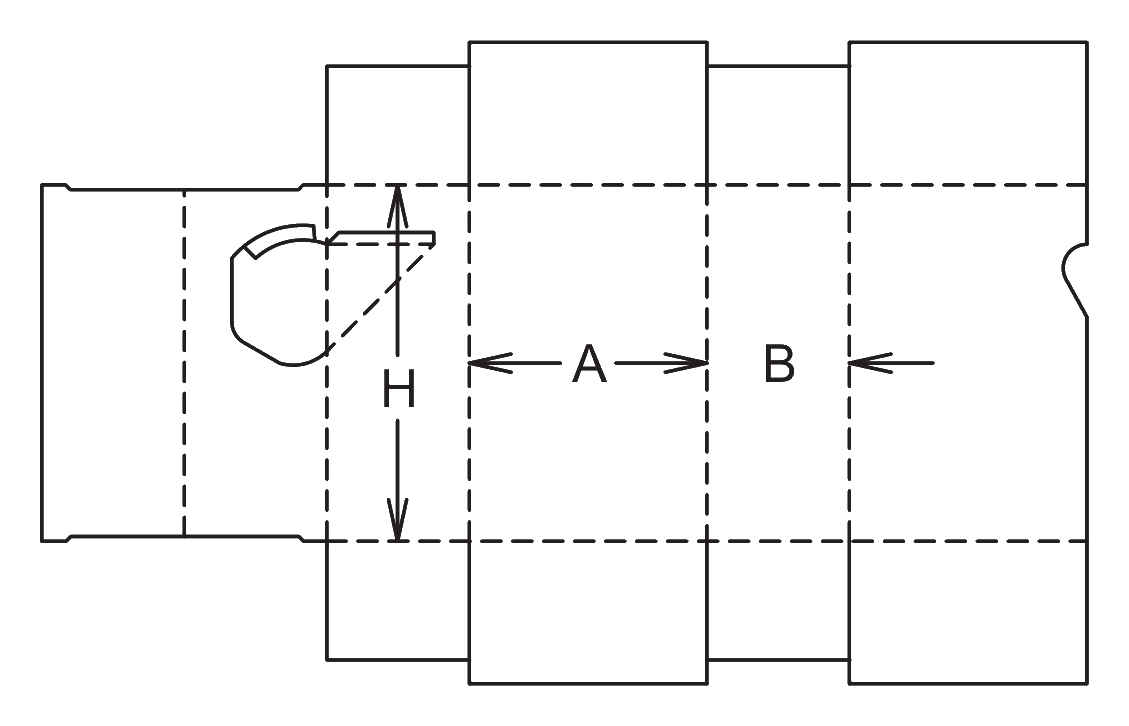

The ECMA X46 is a die-cut, reclosable pour spout integrated directly into the side panel of a folding carton. It provides a controlled dispensing chute for granular or powdered products, eliminating the need for separate plastic spout inserts.

As an auxiliary feature, it is applied to a base carton style, such as a sealed-end or tuck carton. The consumer breaks the initial perforations at the thumb cut, pulls the triangular flap outward to pour, and pushes it back in to reclose the package.

Common uses

  • Granular foods like rice, seeds, or cereal.
  • Powdered household products like detergent.
  • Small solid items requiring controlled dispensing.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical Uses for the Integrated Spout

Granular and Dry Foods

Useful for rice, seeds, cereal, and sugar where controlled pouring and reclosability are helpful for consumer convenience.

Powdered Household Goods

Frequently used for detergent powders or cleaning agents, provided the particle size is large enough to resist sifting through the die-cut lines.

Pet Food and Bird Seed

Useful for dispensing small kibble or seeds directly from the retail carton without needing a scoop.

Plastic Reduction Initiatives

A strong fit for brands looking to transition from mixed-material packaging to a fully paperboard, mono-material solution.

Who Specifies This Feature

Retail Food and Household Brands

Brands prioritize this feature to improve the consumer experience while meeting sustainability goals by removing plastic components.

High-Volume Packagers

Operations teams value this design because it runs on standard folder-gluers, avoiding the need for separate plastic spout insertion machinery.

Contract Packagers

Co-packers use this integrated feature to offer dispensing cartons without investing in specialized spout-application equipment.

When to Consider Different Dispensing Methods

Very Fine Powders

If the product is a very fine powder and no inner bag is used, the product may sift through the spout cut lines during transit. A fully sealed carton with an inner pouch should be tested.

Liquid or Heavy Flow Products

This paperboard feature does not fit liquids or heavy items that do not flow easily. A rigid container or a carton with a specialized plastic fitment is usually needed.

Key Decisions for Spout Integration

Base Carton Selection

Because the X46 is a feature, not a complete box, the primary carton style should be selected to suit the filling line and product weight.

Board Grade and Folding Endurance

The spout relies on a paperboard hinge that needs to survive repeated opening and closing. Board with high folding endurance is usually needed to prevent the hinge from cracking or tearing.

Sift-Proofing and Nicking Strategy

The die-cut lines forming the spout are held together by small paper nicks until the consumer opens it. The strength and placement of these nicks balance transit security against ease of opening.

Filling Line Orientation

The carton is filled from the top or bottom main flaps, as the side-panel spout remains sealed during the automated filling process.

Modifying the Spout Geometry

Spout Size and Position

The vertical position of the spout and the size of the pour opening can be adjusted to match the product flow characteristics, provided the mechanism does not interfere with the top or bottom closures.

Thumb Cut Scaling

The access hole should be sized appropriately for a human finger, ensuring the consumer can easily grip and deploy the spout.

Friction Tongue Length

The internal tongue that holds the spout closed can be lengthened or shortened to adjust the friction fit for reclosure.

Board and packing details

Folder-Gluer Precision

Manufacturing this feature demands strict glue-exclusion zones. If adhesive smears onto the moving parts of the spout drawer during the folder-gluer run, the feature will be permanently sealed shut.

Friction Reclosure

The spout stays closed after the first use due to an internal friction tongue and the tight tolerance of the die-cut edges. Altering the internal angles of the spout can cause it to jam or fail to seat flush.

Additional notes

Tamper Evidence

The integrated spout is not inherently tamper-evident once the initial nicks are broken. If tamper evidence is needed, a separate destructible label or seal should be applied over the thumb cut area.

Base Carton Compatibility

This spout feature can be applied to various base carton styles, including reverse tuck, straight tuck, and sealed-end cartons, depending on the filling line setup.

Related Dispensing Features

X42: Push-In Pour Opening

Worth comparing if a simple perforated push-in hole is sufficient, rather than a pull-out, reclosable chute.

X44: Glue-Flap Spout

Worth comparing if the dispensing mechanism should be built entirely into the extended glue flap rather than using a side-panel drawer.

FAQs

Product Fit

What types of products fit this spout?

It fits granular or powdered dry goods that flow easily, such as rice, cereal, seeds, or detergent powder.

Will fine powders leak through the spout before it is opened?

There is a risk of sifting with very fine powders if an inner bag is not used. The die-cut lines should be carefully nicked, and physical sift testing with the actual product is strongly suggested.

Design and Function

Does this feature eliminate the need for a plastic spout?

The X46 provides a mono-material, paperboard dispensing solution, removing the cost and environmental impact of inserting a separate plastic spout.

How does the spout stay closed after the first use?

When pushed back into the carton wall, an internal friction tongue and the geometry of the cut edges hold the spout flush with the side panel.

Materials

What board materials fit this feature?

Because the spout hinges outward repeatedly, board grades with high folding endurance are typically needed to prevent the hinge from tearing.

Production

How does this feature affect the manufacturing process?

It demands precise die-cutting for the perforations and strict control during gluing. The folder-gluer applies adhesive to the main seam without letting any glue touch the moving parts of the spout.

Design and Function

Can the spout be placed on any panel?

The X46 spout is specifically built to integrate into the side panel and the adjacent glue flap, so its placement is tied to the carton seam.

Production

Do special filling machines handle this carton?

The carton is filled from the top or bottom like a standard folding carton before the main flaps are sealed. The spout remains closed during filling.
