Locking-Lug Tuck Closure for Folding Cartons

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Mechanical slit locks resist accidental opening
Delivered flat with a pre-glued side seam
Useful for cosmetics, pharma, and premium retail

About this product

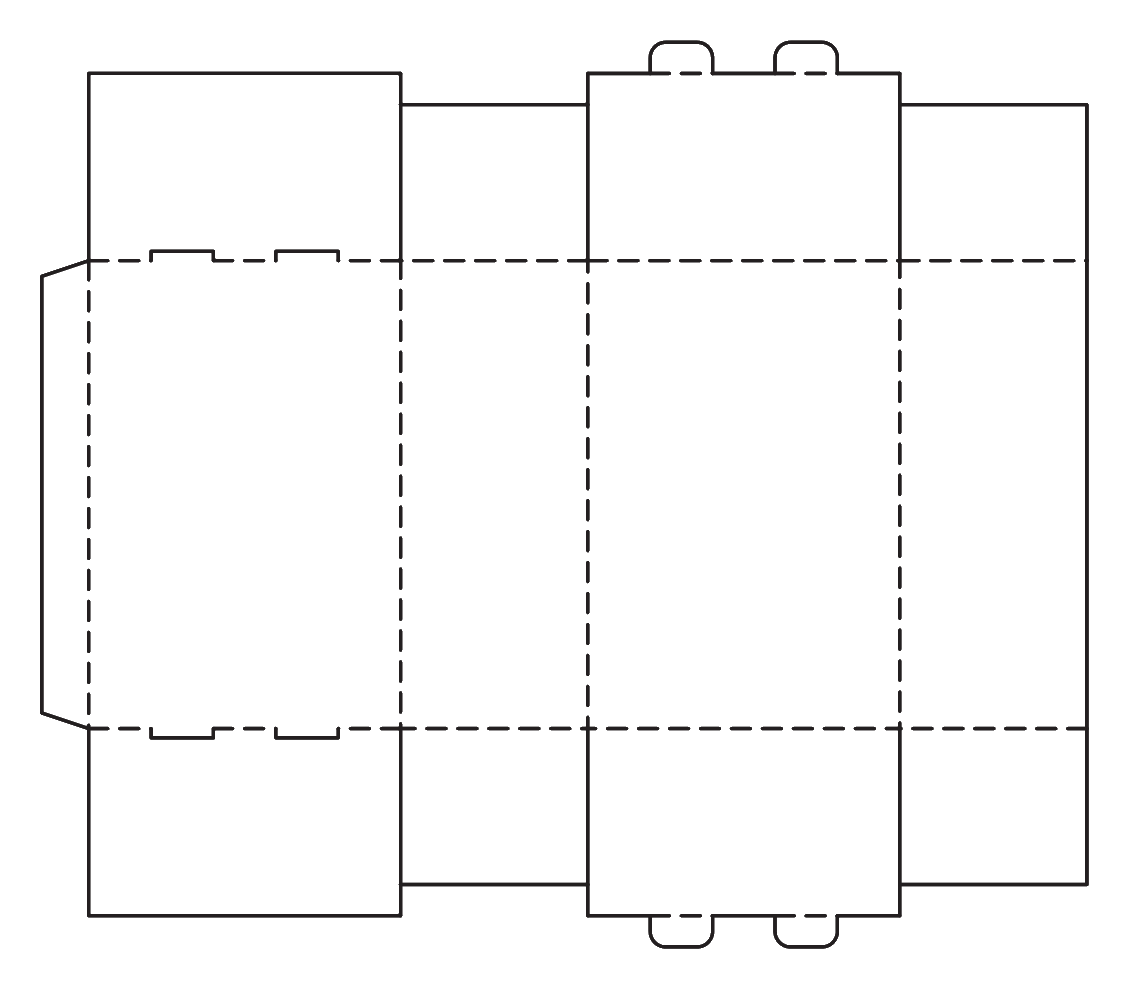

ECMA X32 specifies a tuck-in closure with locking lugs. It is a Group X feature used with a folding-carton design. The illustrated straight-tuck carton is one host for the feature.

The lugs add retention to the tuck closure while leaving the choice of base carton and other package details open.

Common uses

Cosmetics and skincare
Pharmaceuticals
Lightweight electronics
Premium retail goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will customers need to open and close the box multiple times?

Are you currently using clear stickers or tape to keep your boxes closed?

What is the approximate weight of the item going inside?

What base carton style should use this feature?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Consumer Goods Packaging

Retail Shelf Display

The locking lugs keep the carton securely closed during transit to the store and while being handled by shoppers. This prevents the lid from popping open and damaging the presentation.

Reclosable Consumer Goods

For products that are stored in their original packaging, such as cosmetics or lightweight electronics, the slit locks allow the consumer to open and securely reclose the box multiple times.

Dense Retail Items

When a product is slightly heavier than a standard friction tuck can support, the mechanical catch of the slit locks provides extra resistance against the bottom flap opening under the product's weight.

Premium Kitting and Gift Sets

Gift sets often require a clean exterior without the visual clutter of clear wafer seals. The locking tabs provide enough security to keep the presentation intact without external adhesives.

Where Slit Locks Add Value

Cosmetics and Personal Care

Premium skincare and beauty products often rely on this closure to maintain a clean, high-end appearance without external tape or clear wafer seals.

Pharmaceuticals and Supplements

The positive mechanical lock provides a reassuring closure for over-the-counter health products, ensuring the contents remain neatly contained until the user actively opens the flap.

Lightweight Electronics and Accessories

Small devices, cables, and chargers benefit from a secure retail box that shoppers can open to inspect the product and easily reclose without tearing the packaging.

When to Consider a Different Closure

High-volume, low-cost fulfillment

If the product is lightweight and shelf-handling is minimal, a standard friction-fit straight tuck may be faster to assemble and sufficient for the job.

Tamper-evident requirements

While slit locks resist accidental opening, they are not tamper-evident. If you need to prove the package has not been opened, consider adding a perforated tear strip or an external seal.

Board Choice and Packing Setup

Board Stiffness and Caliper

The locking mechanism relies entirely on the stiffness of the paperboard. Solid bleached sulfate (SBS) or folding boxboard (FBB) provides the necessary rigidity so the lugs snap into place without tearing. Micro-flute corrugated materials can crush at the slits and should be physically tested before committing.

Manual versus Automated Loading

This carton is compatible with straight-line folder-gluers and can be erected manually or via automated cartoning equipment. If packing by hand, operators must be trained to push the tuck flap in fully so the lugs engage the dust flaps, rather than stopping at a simple friction fit.

Opening Experience

The length of the slit lock determines how hard the consumer must pull to open the carton. A longer slit creates a stronger lock but increases the risk of the consumer tearing the flap if they force it.

Print Area and Scuffing

The locking lugs slide against the raw edges of the dust flaps during opening and closing. Heavy ink coverage or delicate coatings near the shoulders of the tuck flap may show minor scuffing after repeated use.

Adjusting the Locking Mechanism

Slit Lock Length and Angle

The length and angle of the locking slits can be adjusted based on the board thickness and the required opening force. A longer slit provides a stronger lock but requires more effort to open and increases the risk of tearing the board.

Dust Flap Clearance

The gap between the dust flaps and the tuck flap can be fine-tuned. If the dust flaps are too short, the locking lugs will not catch. If they are too long, the tuck flap will bind during insertion.

Tuck Flap Bevel

The leading edge of the tuck flap can be beveled or rounded more aggressively to ease insertion, especially for automated packing lines where smooth entry is critical.

Board and packing details

Prototyping the Closure

Because the locking feel depends heavily on the exact board grade and caliper, it is important to cut a physical prototype on the actual production material to verify the opening and closing force before a full run.

Additional notes

Print panel and scuff risk

FAQs

Product Fit & Closure

Does this carton require tape or clear seals?

For retail presentation, the slit locks usually provide enough security to keep the carton closed without tape or clear wafer seals. However, if the carton is shipped individually through a parcel network, it will require an outer mailer or a secure external seal.

What is the difference between a friction tuck and a slit lock?

A standard friction tuck relies on the tight fit of the flap against the front panel to stay closed. A slit lock adds small cuts to the shoulders of the flap that physically hook onto the inner dust flaps, creating a mechanical catch that must be actively disengaged.

Does this closure work well for heavy products?

It provides more resistance against bottom blowout than a standard friction tuck, but it is still limited by the tear strength of the paperboard. For truly heavy items, an auto-bottom or crash-lock base is a safer choice.

Materials & Print

Can this be made from corrugated board?

It is generally not recommended for corrugated board without careful testing. The flutes can crush at the locking slits, causing the lugs to fail or tear. Solid paperboard provides the clean, rigid edge needed for the lock to function properly.

Can the locking tabs tear during opening?

If the board is too thin, the slit is cut too long, or the consumer pulls too aggressively, the tabs can tear. Finding the right balance between a secure lock and an easy opening requires testing the specific board grade.

Packing & Production

Will this slow down manual assembly?

It adds a slight amount of effort compared to a plain tuck, as the packer must push the flap in far enough to engage the locks. However, the difference is minimal once operators are accustomed to the snap feel.

Can this run on automated cartoning machines?

Cartons with slit locks are routinely run on automated cartoning equipment. The machine's plows must be set correctly to ensure the tuck flap is fully inserted and the lugs engage.

Samples & Prototypes

Why is a physical sample important for this closure?

The effectiveness of the lock depends entirely on the thickness and stiffness of the chosen board. A physical sample proves whether the slits are the right length to hold securely without tearing when the consumer opens the box.
