ECMA X21

Tear-Strip Locking Closure for Folding Cartons

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Illustrated host uses a glued top seal for first-opening evidence
Tear strip can reveal a tuck tab for reclosure
Illustrated version relies on adhesive during fulfillment

About this product

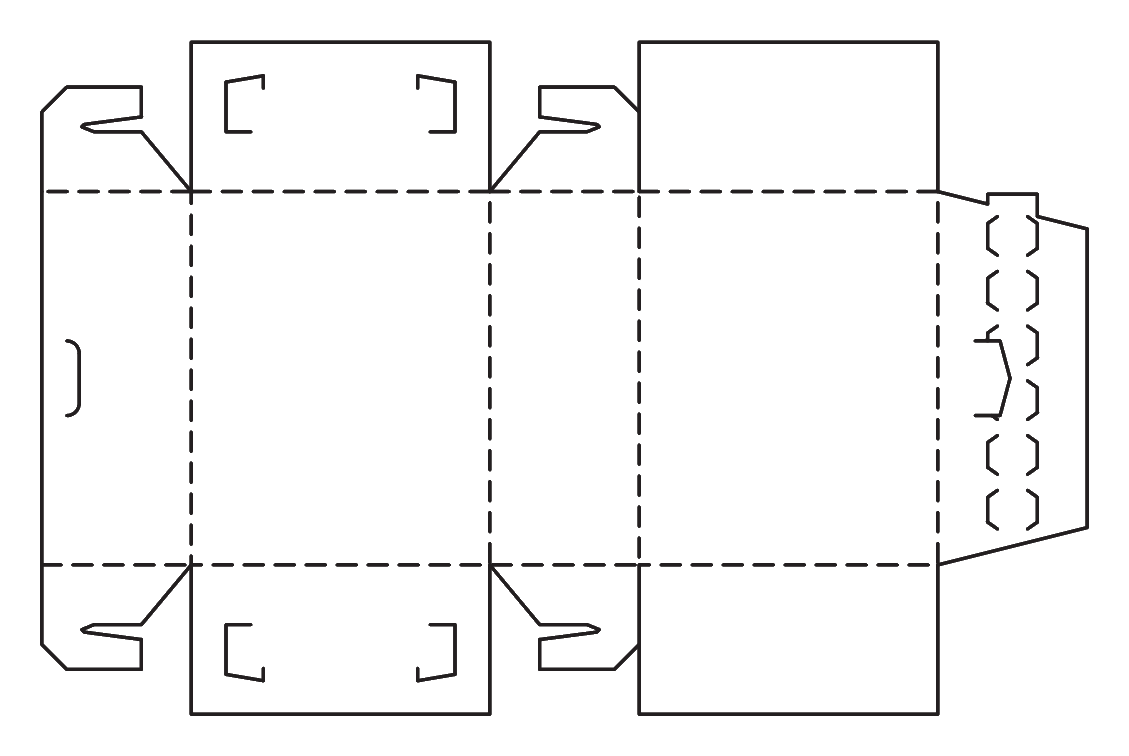

ECMA X21 specifies a tear strip used in combination with a locking device. It is a Group X feature used with a folding-carton design. The illustrated carton has a glued top closure that opens to reveal a tuck tab for reclosure.

The X21 feature can be applied to a suitable base carton; its code does not prescribe a single carton body, base, or filling method.

Common uses

Premium confectionery
Cosmetics and skincare
Pharmaceuticals
Small electronics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these cartons be packed and sealed?

What type of product is going inside?

Are you currently using a tear-strip carton?

What base carton style should use this feature?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Applications For Tear-Strip Cartons

High-End Retail Presentation

Useful for products that require proof of integrity on the shelf but will be stored in the box after purchase. The tear strip provides a satisfying, clean opening experience, while the tuck tab keeps the carton neat and functional for ongoing use.

Automated Retail Fulfillment

Because the tamper-evident seal relies on gluing the top flap after loading, this carton is often chosen for machine fulfillment. It is a practical choice for medium to large runs where adhesive can be applied consistently.

Subscription and E-commerce Primary Packs

When placed inside a sturdy outer mailer, this carton provides an excellent unboxing experience. The tamper-evident seal reassures the customer, and the reclosable tab keeps contents organized.

Over-the-Counter Health Products

Products that require clear evidence of safety before use benefit from the glued top seal. The reclosable feature is practical for items that are consumed over several days or weeks.

Product Sectors And Presentation

Cosmetics and Personal Care

These sectors often require tamper evidence for safety and hygiene. The X21 closure provides this security without the need for external shrink wrap or clear seals, keeping the primary package clean and supporting paper-based recycling goals.

Confectionery and Specialty Foods

For products consumed or used over time, the ability to securely reclose the box is a practical consumer benefit. The hidden tongue-and-slot mechanism is more durable than simply tucking a torn flap back into a box.

Small Electronics and Accessories

High-value electronics accessories often use this style to prevent in-store tampering while giving the buyer a reusable storage box for cables or components.

When To Consider Simpler Closures

Hand-Packed or Low-Volume Runs

If you are packing by hand, applying liquid adhesive to the top flap can be slow and inconsistent. A standard straight tuck or reverse tuck carton, potentially secured with a clear label, is usually a better choice for manual fulfillment.

Single-Use Products

If the product is consumed entirely upon opening, the reclosure mechanism adds unnecessary complexity. A standard sealed-end carton provides the same tamper evidence with a simpler, destructive opening.

Fulfillment And Material Decisions

Board Selection and Grain Direction

The success of the tear strip depends on the material. The board grain direction must run parallel to the zipper to ensure a straight, clean tear. Virgin fiber boards often yield clean results, while recycled boards may tear unpredictably.

Tear Strip Perforation Testing

The cut-to-tie ratio of the perforations must be calibrated to your specific board choice. If the ties are too strong, the strip will not tear; if they are too weak, the carton may open during transit. Physical testing helps verify the tear behavior.

Top Closure Sealing Method

Decide how the top flap will be sealed after the product is loaded. This style relies on adhesive applied to the top flap, which is typically handled by automated cartoning equipment rather than manual labor.

Base Style Selection

While the top closure provides tamper evidence, the bottom closure must support the product weight. You can choose a straight tuck, reverse tuck, crash-lock, or snap-lock base depending on your assembly speed and product requirements.

Customizing The Closure And Base

Base Style Modifications

While the X21 code specifically defines the top tear-strip mechanism, the bottom of the carton can be adapted to your needs. It can be paired with a standard tuck bottom, a crash-lock base for faster manual erection before machine loading, or a snap-lock base for heavier items.

Tear Strip and Tab Dimensions

The width of the zipper and the size of the resulting tuck tab can be adjusted for ergonomics or aesthetic reasons. However, the tongue and the receiving slot are a matched set. Changing one requires a precise adjustment to the other to maintain a secure reclosure.

Receiving Slot Calibration

The slot on the inner flap must be sized correctly to accommodate the thickness of the board when the tongue is inserted. This clearance ensures the reclosure holds securely without tearing the slot corners.

Board and packing details

Primary Packaging Only

While the glued top is secure, this is a primary retail carton. It is designed for retail shelves or master cases, and should be packed into a corrugated shipper for individual distribution.

Additional notes

Adhesive application area

Adhesive is applied only to the tip of the outer flap, above the zipper line, adhering it to the inner dust flap. This ensures the main panel is free to hinge open once the strip is removed.

FAQs

Fulfillment & Packing

Can this carton be packed and sealed by hand?

The tamper-evident top seal relies on adhesive applied and pressed after the product is loaded. Doing this manually can be slow and inconsistent. It is often paired with automated cartoning equipment.

Material & Performance

Why is grain direction important for this box?

The tear strip relies on the natural structure of the paperboard to tear cleanly. If the grain direction runs perpendicular to the strip, the tear is likely to wander off the perforations, potentially snapping the strip or damaging the main display panel.

Design & Customization

Can I use a different bottom style with this top closure?

The tear-strip and tuck-lock mechanism is independent of the base. Depending on your product weight and how the empty cartons are fed into your packing line, you can pair this top with a straight tuck, reverse tuck, crash-lock, or snap-lock bottom.

Testing & Prototyping

Do I need to test the tear strip before a production run?

The perforations must be precisely tuned to the thickness and fiber makeup of your chosen board. A physical prototype should be tested to ensure the strip pulls smoothly without requiring excessive force or tearing prematurely.

Shipping & Routing

Can this carton be shipped without an outer box?

This is a primary retail carton made from paperboard. It is designed for retail shelves or master cases, so it requires an outer corrugated shipper or mailer for individual parcel delivery.

Inserts & Fit

Can I use custom inserts with this carton?

Custom paperboard or molded inserts can be used to hold products securely in place, which is especially useful for cosmetics or small electronics.

Print & Graphics

Does the tear strip affect the printable area?

The tear strip is part of the outer top flap and can be printed. However, important text or logos should be kept away from the perforation lines to ensure they remain legible after opening.

Samples & Prototyping

Should I request a physical sample before a larger order?

A physical sample allows you to verify the tear strip performance, the reclosure mechanism, and the overall fit of your product before committing to a larger order.
