Practical Uses for the Securing Lock
Retail Display and Shelf Presentation
The securing lock helps keep the carton closed on the retail shelf, reducing the chance of flaps bowing or springing open due to board memory. It provides a clean, professional appearance without external seals.
Kits and Multi-Use Products
Because the lock is non-destructive, consumers can easily open and reclose the carton multiple times. This makes it a strong choice for kits, multi-use items, or products stored in their original packaging.
High-Value Lightweight Goods
The securing lock provides a secure feel, but it does not by itself show whether the carton has been opened. It can still add a layer of perceived quality to the unboxing experience.
Hanging Displays
When combined with a hanger tab, the bottom securing lock helps keep the carton closed under the weight of the product, keeping the presentation intact on pegboards.
Retail Contexts for the Securing Lock
Cosmetics and Personal Care Packaging
Provides a premium, secure feel for lightweight bottles, tubes, and jars. The clean closure maintains high-end graphic presentation without tape.
Light Electronics and Small Parts
Keeps small components securely contained during retail handling while allowing customers to inspect the product and reclose the box without damaging it.
Pharmaceutical and Healthcare
Offers a reliable closure for over-the-counter items that benefit from repeated access, keeping the contents organized in the medicine cabinet.
When to Consider Alternative Closures
Heavy or Dense Products
While the securing lock resists accidental opening, the bottom tuck might still open under heavy vertical loads. For heavier items, evaluate an automatic crash-lock bottom or a sealed closure.
Direct-to-Consumer Parcel Shipping
The slit lock is designed for retail handling, not the rough transit of a courier network. If shipping directly to consumers, this carton often benefits from an outer shipper or a secure external seal.

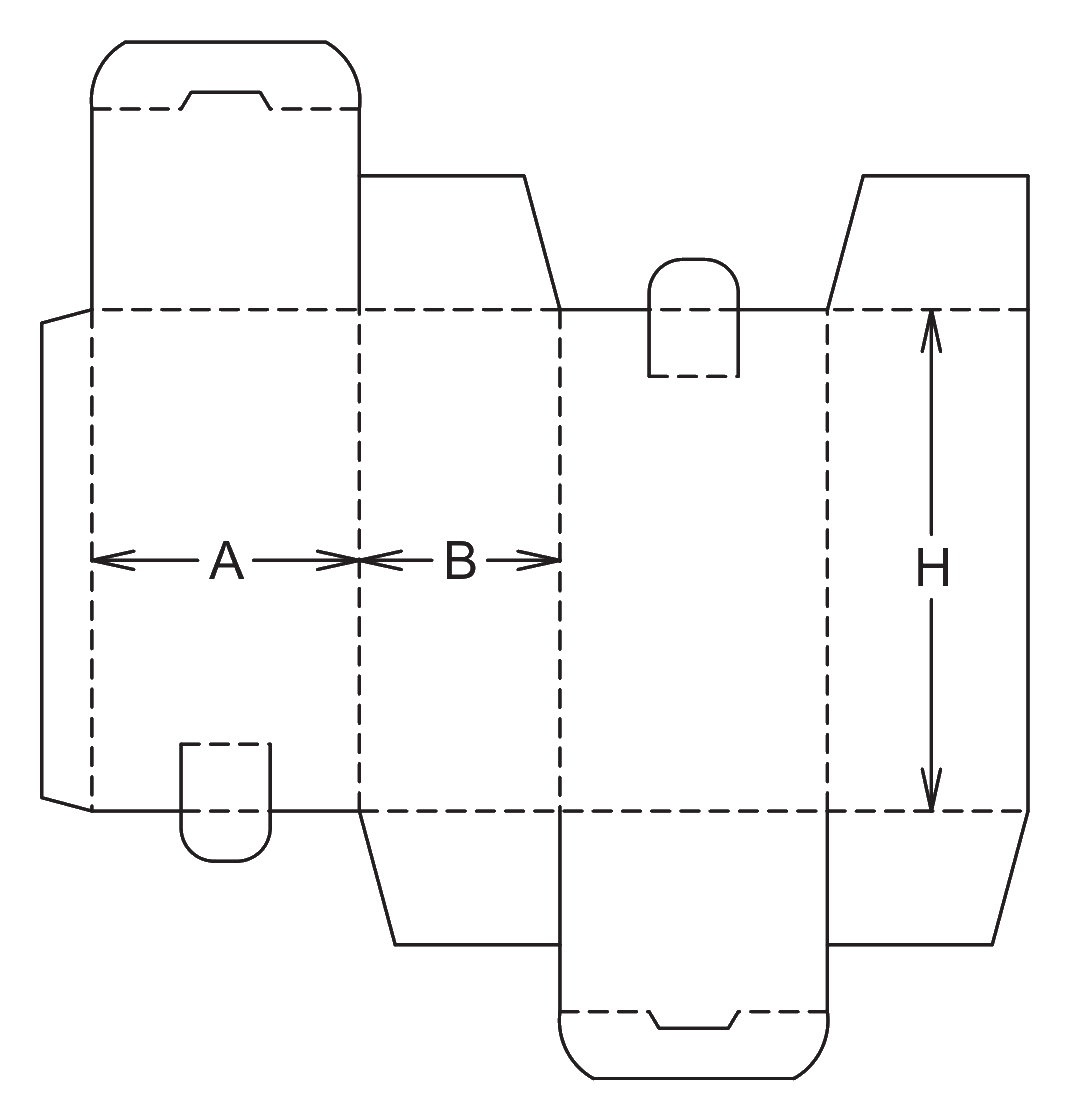

Key Decisions for the X33
Board Thickness and Slit Clearance
The height of the receiving slit should match the thickness of your chosen board. If you change from a thin folding boxboard to a thicker material, the CAD parameters should be updated so the lock does not bind or tear.
Hand Assembly Versus Automated Cartoning
These cartons are easily erected and locked by hand. If you plan to use an automated cartoning line, verify that your machinery is equipped to handle the specific insertion motion needed to seat the locking tongue.
Tear Resistance of the Board
Because the tongue does the mechanical work of holding the flap closed, boards with higher tear resistance often perform better over repeated openings than recycled boards.
Placement of the Thumb Cut
A thumb cut is typically placed adjacent to the receiving slit to allow a finger to push the tongue out. The size and exact position of this cutout can be adjusted for better ergonomics or to accommodate specific artwork.
Adjusting the Lock and Flaps
Locking Tongue Dimensions
The locking tongue can be widened for a stronger hold or narrowed for easier insertion. The length can also be adjusted to ensure it seats fully without interfering with the product inside.
Thumb Cut Access Size
The radius of the thumb access cutout can be modified to balance ease of opening with the visual interruption of the main panel.
Dust Flap Taper
The horizontal and vertical taper of the dust flaps can be adjusted to ensure they fold smoothly without catching on the locking mechanism.
Board and packing details
Die-Cutting the Slit
The receiving slit should be cleanly stripped during die-cutting. Any remaining material in the slit can interfere with the tongue seating properly and compromise the lock.
