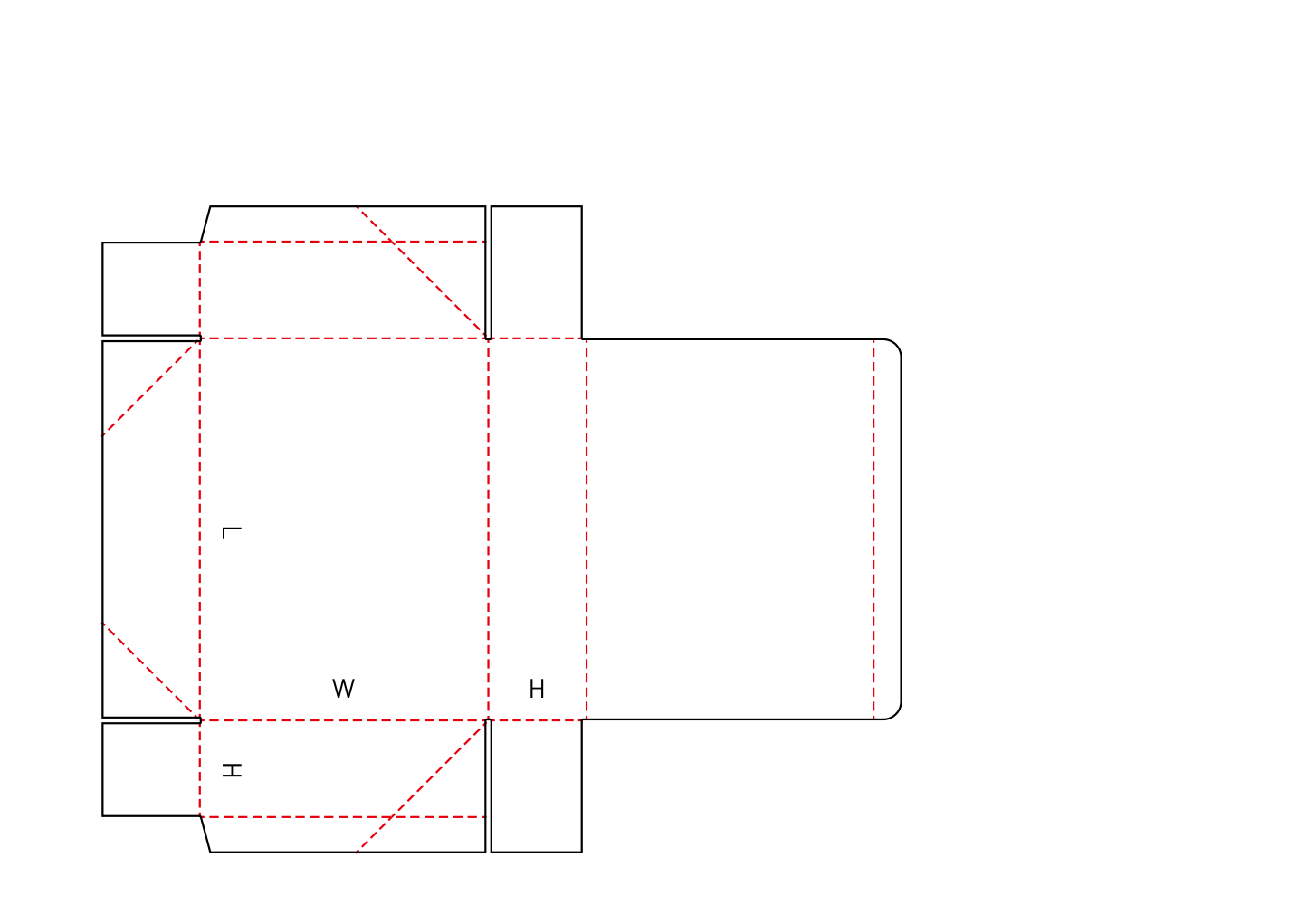

Collapsible Tray with Dust Flaps and Hinged Lid

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Base deploys instantly to reduce manual assembly time
Fixed front wall works with dust flaps and a hinged lid
Closure fit should be checked with the intended board and load

About this product

This single-piece carton folds into a collapsible tray with a fixed front wall, dust flaps, and a hinged lid. The source view does not show a drop-front panel.

Because the complex base requires specialized multi-point gluing, this style is typically chosen for mature, repeat order volumes where reducing pack-bench time is more critical than keeping initial production runs simple.

Common uses

Premium e-commerce kitting shipped inside a master carton
Retail shelf displays requiring easy customer access
Warehouse picking bins that need dust protection
Subscription box fulfillment requiring fast assembly

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped to the final customer?

Should the fixed front wall remain full height?

Which option describes the items going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail presentation and high-volume kitting

Premium e-commerce kitting

The fast-erecting base keeps fulfillment moving quickly during large campaign rollouts. The drop-front provides a high-end unboxing reveal, though the box usually requires a master shipper for parcel transit.

Retail shelf displays

The drop-front allows customers to access products without destroying the packaging. The hinged lid can be folded back or tucked behind the box on the store shelf.

Warehouse picking bins

For internal storage or parts distribution, the drop-front allows easy access on shelving racks while the closed lid keeps dust out of the inventory.

Subscription box fulfillment

High-volume subscription programs use the auto-bottom base to hit tight packing deadlines, while the drop-front creates a presentation-style opening for the end user.

Industries prioritizing fast assembly and display

Consumer packaged goods (CPG)

Brands moving goods directly from the pallet to the retail shelf use this structure to avoid unpacking individual units. The box serves as both the transit container and the display tray.

Fast-paced fulfillment centers

Operations packing thousands of units per day use auto-bottom boxes to eliminate the need for bottom taping, saving seconds on every unit.

Retail merchandising

Store planners favor the drop-front access because it keeps shelves organized and allows shoppers to interact with the product without tearing the carton.

When to consider a different box style

Direct parcel shipping

If the box must ship through mixed-carrier parcel networks without an outer carton, a Roll-End Tuck-Top Mailer is a stronger choice. The friction-tuck lid on this auto-bottom box can open if dropped.

Heavy pallet stacking

The drop-front panel breaks the continuous vertical support at the front of the box. If you are stacking heavy pallets, a standard slotted carton provides better crush resistance.

Open tray needs

If the product does not need top closure or dust protection, a standard Crash-Lock Open Tray removes the lid entirely and uses less corrugated board.

Close variants and lookalike dielines

The closest library neighbors include 0748a, 0748, 0759. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, closure, and production choices

Board thickness and flute profile

Fine to medium flutes work well. Heavy double-wall board drastically increases the risk of the crash-lock base binding during assembly and makes the dust flaps difficult to tuck cleanly.

Order maturity and run size

This box requires a flatbed die-cutter and a multi-point folder-gluer. The production route favors higher volumes, making it less practical for short trial runs or early prototypes.

Transit sealing strategy

Decide early if this will act as an inner presentation pack or a standalone shipper. If shipping directly, plan for a clear wafer seal, integrated adhesive strip, or heavy-duty tape to secure the lid.

Internal clearance for dust flaps

The side dust flaps fold inward and sit inside the main walls. Exact internal dimensions must account for this board thickness to ensure tight-fitting products are not crushed.

Practical template adjustments

Slot profiles

The slots separating the lid flaps can be cut square or rounded. This helps the factory strip waste board cleanly during high-speed die-cutting.

Tear-away perforations

The drop-front can be modified with perforations along the side walls. This allows retail staff to tear the front panel away entirely for a permanent open-bin display.

Tuck flap depth

The front tuck flap on the lid can be extended for a tighter friction fit, though this requires careful matching with the board thickness to prevent bowing.

Board and packing details

Base interlocking strength

The crash-lock floor holds standard weights securely. However, concentrated heavy point loads in the exact center of the base can cause the interlock to fail under dynamic shock.

FAQs

Shipping and Route

Can this box be shipped through the mail without tape?

No. The friction-tuck lid is designed for easy access, not transit security. It will open in a courier network unless secured with a clear seal, tape, or placed inside a master shipper.

Product Fit and Protection

Does the drop-front weaken the box?

Yes. Because the front panel is separate from the side walls, it breaks the continuous vertical support. Pallet stacking weights should be tested physically before a large rollout.

Quantity and Production

Why is this style better for large runs?

The complex base requires a multi-point folder-gluer. The preparation time for this specific machinery makes short runs expensive per unit, but it becomes highly efficient when the volume offsets the initial preparation.

Board and Finish

What board grades work best?

E-flute or B-flute corrugated board, or solid folding carton board. Heavy double-wall board makes the base bind during assembly and makes the lid clumsy to tuck.

Packing Labor

Do packers need to tape the bottom?

No. The crash-lock base interlocks automatically when the opposite corners of the flat box are pushed together. This eliminates bottom taping and speeds up the packing line.

Retail Setup

Does the lid stay open for display?

The lid is hinged to the back wall. It can be folded all the way back or tucked behind the box on a retail shelf to keep the drop-front access clear.

Delivery and Storage

How does the box arrive at my facility?

The box arrives glued and folded completely flat. The glued overlapping base flaps make the flat profile slightly thicker than a standard unglued sheet, which slightly reduces the number of boxes per pallet.

Modifications

Can the drop-front be removed completely?

Yes. The template can be modified with perforations along the side walls, allowing retail staff to tear the front panel away entirely for a permanent open-bin display.
