Heavy-Duty Protection and Foam Replacement
EPS foam replacement
Replaces non-recyclable foam end-caps or side-buffers. The dense zig-zag folds absorb severe lateral impacts, making it highly effective for protecting fragile mechanical parts that require tight tolerances within the main box.
Heavy component staging
The flat central base distributes the weight of heavy electronics or machinery parts. At the same time, the thick side blocks reinforce the outer carton's walls against crushing during transit.
Lateral void fill for mixed-carrier transit
Fills large gaps between a heavy product and the master carton. The multi-layered accordion structure prevents dense items from shifting and punching through the outer box walls.
Master carton wall reinforcement
Acts as a structural column when oriented vertically. The dense folded blocks add significant stacking strength to the corners or sides of the primary shipping box.
Industrial, Electronics, and Furniture Fulfillment
Industrial and machinery parts
Operations shipping heavy metal components often need extreme edge protection but cannot justify custom foam molds for low-volume or variable-size parts. This pad provides that protection using standard corrugated board.
Furniture and large electronics
Brands shipping large, heavy items through mixed-carrier networks require reliable side buffering. The multi-layered walls act as a structural crumple zone that prevents the product from taking direct hits.
High-weight e-commerce fulfillment
Direct-to-consumer brands shipping dense goods need fully recyclable packaging that still handles individual parcel delivery. This insert replaces foam while maintaining the necessary impact resistance.
When to Consider Simpler Spacers or Tubes
High-speed automated packing
The unfastened zig-zag layers spring back and require manual tension to hold together. If your line relies on robotics or high-speed case erectors, consider pre-glued inserts or molded pulp instead.
Lightweight products
If the product does not need massive shock absorption, the manual folding effort of this pad is wasted. A simple C-channel spacer is much faster to pack and uses significantly less material.
Board Thickness, Assembly Labor, and Fit
Board grade versus folding fatigue
Thicker board increases shock absorption but exponentially increases the physical effort required to fold the pad 180 degrees. You have to balance the protection your product needs with the endurance of your packing team.
Master carton clearance
The pad relies on the exact internal dimensions of the outer box to stay tightly closed. The fit must be precise so the zig-zag layers do not unfold or shift during transit.
Packing bench setup
Operators will need to fold the pad and push it into the box before loading the product, or use a physical fixture to hold the tension. Plan your packing sequence around this requirement.
Inbound freight and storage density
The accordion folds require a massive flat board area. This means fewer pads fit on a pallet compared to simpler inserts, which is an important factor for inbound freight planning and warehouse storage.
Adjusting the Cushion Depth and Base Width
Cushion wall thickness
The number of zig-zag layers can be increased for deeper crumple zones. Keep in mind that adding layers requires a significantly larger flat blank, which affects how many pads fit on an inbound pallet.
Base staging area
The central flat panel can be widened or narrowed to match the exact footprint of the product being protected, ensuring the weight is distributed evenly across the floor of the master carton.
Flute direction alignment
The direction of the corrugated flutes can be specified to run vertically along the folded legs, turning the side blocks into load-bearing columns that reinforce the outer box.
Board and packing details

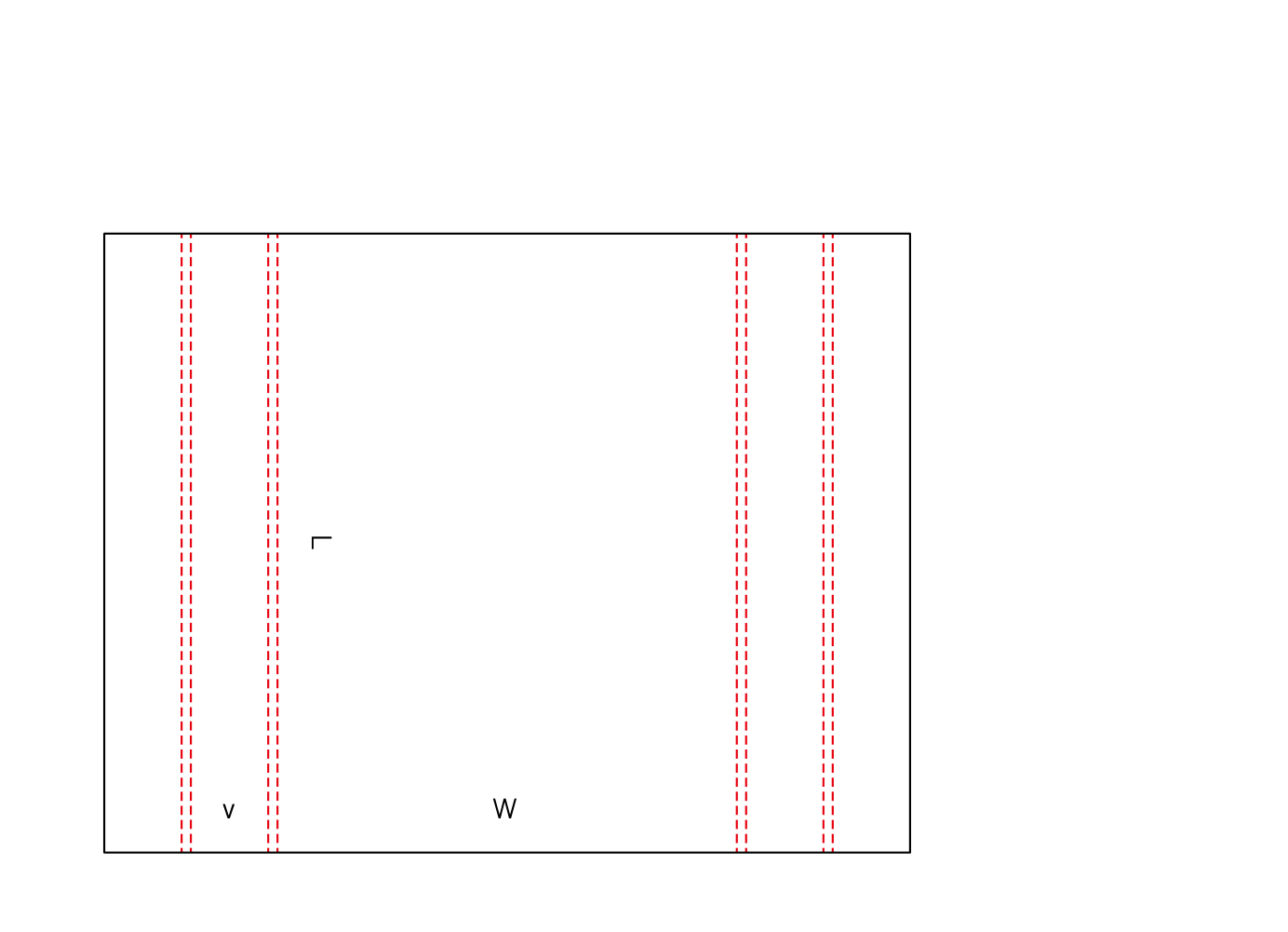

Straight-line production
Because all creases run parallel from end to end, this pad can often be manufactured using straight-line scoring. This bypasses the need for shaped cutouts, making it highly efficient to produce even in smaller runs.
Friction-fit retention
This insert does not use glue or locking tabs. It relies entirely on the physical boundary of the master carton to hold the zig-zag folds tightly closed against the board's natural spring-back.
Fold Allowance Modifications
Inner clearance modifications
Minor parametric changes to the inner fold clearances ensure that heavier board grades can nest properly without the layers binding or bowing under tension.
Additional notes
Managing operator fatigue
Repeatedly folding heavy corrugated board 180 degrees is physically demanding. If your volume is high, we recommend testing a physical sample with your packing team to ensure the labor burden is acceptable.
Related Internal Buffers and Pads
FAQs
Closure and assembly
Does this pad stay folded on its own?
No. It relies entirely on the physical boundary of the master shipping box to hold the zig-zag layers tightly closed against the board's natural spring-back.
Material and protection
Can we use double-wall corrugated for maximum protection?
Yes, but it requires careful testing. Double-wall board provides massive crush resistance but makes the 180-degree manual folds physically exhausting for packing operators.
Production
Does this pad require shaped cutouts?
Usually no. If the pad uses standard straight creases without custom cutouts or locks, it can be produced using straight-line scoring.
Packing route
How is the product loaded into this pad?
Typically, the operator folds the pad, pushes it down into the empty master carton so the box walls hold it shut, and then lowers the product onto the flat central base.
Can this be used on an automated packing line?
It is a poor fit for standard automation. The unfastened layers will spring open during robotic transfer unless you use specialized grippers designed to hold the tension.
Material and protection
How does board thickness affect the packing process?
Thicker board increases the shock absorption of the zig-zag layers, but it also exponentially increases the physical effort required to fold the pad by hand.
Shipping and route
Can this pad act as a standalone shipping box?
No. This is strictly an internal fitment. It requires a sealed master carton to hold its shape and protect the product from external elements.
First conversation
What product information is needed to size this insert?
The exact internal dimensions of your master carton, the weight and footprint of the product, and the clearance required between the product and the box wall.
