FEFCO 0954

Finger-Hole Cover Insert with Side Panel

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Broad cover panel includes two finger holes
  • One full-height side panel folds down beside the product
  • Narrow end flanges help locate the insert

About this product

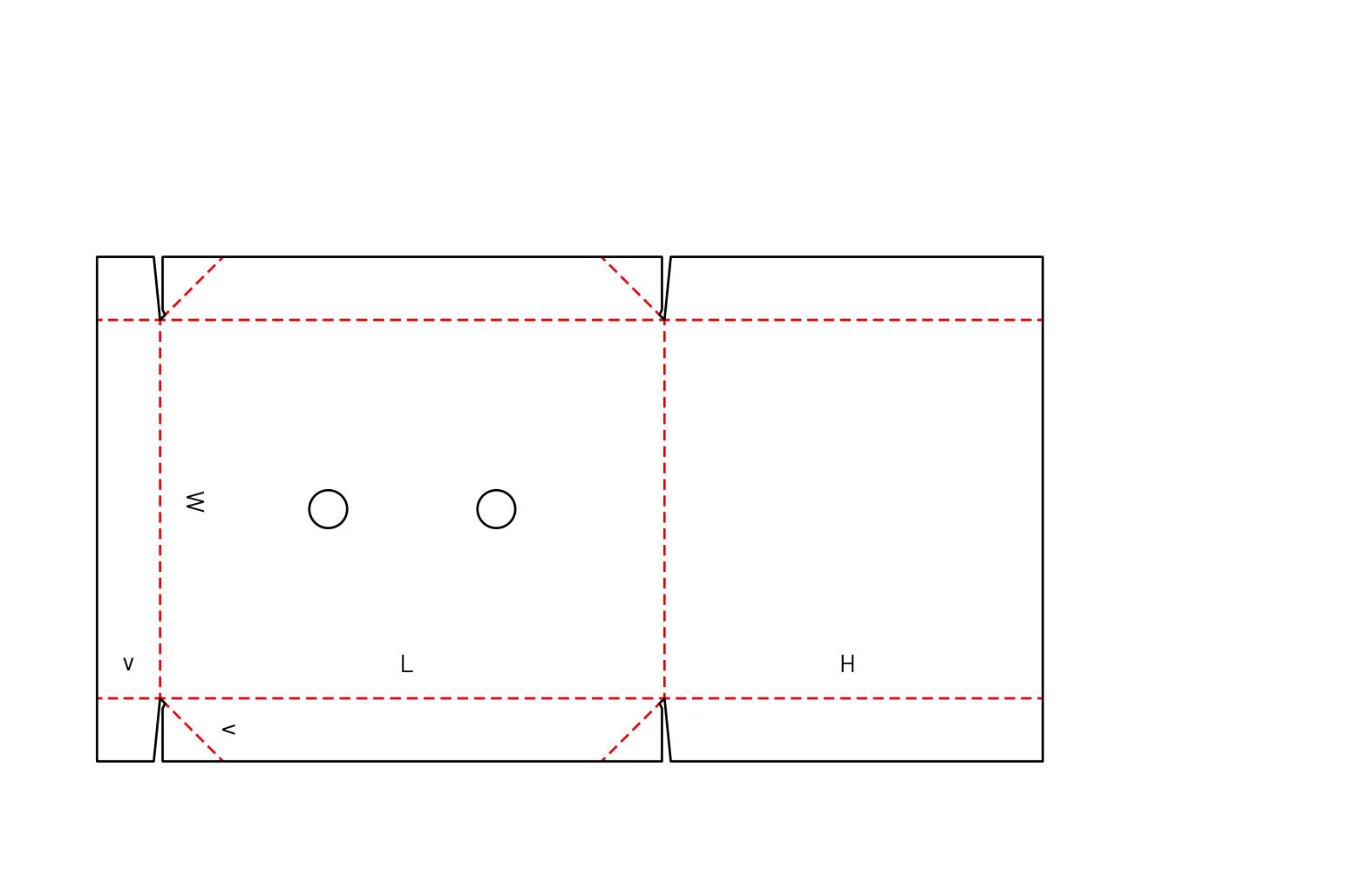

This corrugated insert has a broad cover panel with two finger holes, one full-height side panel, and narrow end flanges.

It folds over a product face and down one side. The end flanges help locate the cover inside the master carton.

Common uses

  • Heavy industrial transit buffering
  • Fragile electronics edge protection
  • Internal podiums or false bottoms
  • Void fill for asymmetrical products

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Internal Shock Absorption and Clearance Jobs

Lateral shock absorption for fragile goods

When a product cannot safely touch the inner walls of its shipping box, this buffer creates a dedicated crush zone. The folded corrugated board absorbs side impacts before they reach delicate edges, making it useful for electronics, glass, or heavy industrial components.

Internal podiums and false bottoms

By orienting a rigid C-channel horizontally beneath a product, the buffer acts as a false bottom. This elevates the item for better presentation upon opening or creates a hidden cavity for power cords, manuals, and accessories.

Edge clearance for kitted components

Keeping specific parts away from the outer box wall prevents friction damage. The buffer maintains a strict air gap around vulnerable edges without requiring custom molded foam.

Void fill for asymmetrical products

Using the C-channel to square off an odd-shaped item inside a standard master carton prevents the product from shifting during transit.

Product Types That Use Side Buffers

Heavy industrial and mechanical parts

Dense components can punch through standard outer cartons if they shift. A heavy-duty side buffer locks the part in the center of the box and diffuses the concentrated weight across a wider surface area.

Kitted electronics and appliances

Consumer electronics often require exact clearance from the outer box to manage drop-test requirements. These buffers maintain that precise standoff distance.

Furniture and flat-pack goods

Long, heavy panels are vulnerable at the corners and edges. A rigid side buffer absorbs the impact if the master carton is dropped on its edge.

When to Consider a Different Internal Fitment

Multi-axis compartmentalization

If you need to separate multiple items from each other in a grid, a side buffer is not enough. Compare interlocking partitions to create individual cells for each component.

Full perimeter protection

When a product needs cushioning on all four sides rather than just localized corner or side protection, a full perimeter wrap or a die-cut tray insert may provide a more stable, unified base than multiple individual side buffers.

Close variants and lookalike dielines

The closest library neighbors include 0770, 0912, 0451_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Flange, Fit, and Board Thickness Choices

Choosing between L-shaped and C-shaped profiles

A basic L-shape is a simple 90-degree fold that hugs a corner. A C-shape adds perpendicular side flanges, turning the pad into a rigid, hollow channel. The C-shape offers higher crush resistance but requires more manual folding steps.

Balancing board thickness with packing fatigue

Heavy double-wall board provides strong shock absorption, but it also creates noticeable spring-back tension. Packers must manually hold the folded shape closed while sliding it into the master carton, which can slow down fulfillment lines if the board is too stiff.

Matching the buffer to the master carton dimensions

The buffer must fit exactly inside another box while wrapping around a product. The board thickness must be carefully calculated into the fold allowances so the pad does not bow or bind during insertion.

Evaluating manual assembly time

Because the unglued board naturally tries to spring back to its flat state, packers must use two hands to fold and hold the pad. This labor time should be weighed against the cost of pre-glued inserts.

Modifying the Buffer Profile and Extraction

Finger holes for tight-fitting extraction

When a C-channel fits snugly inside a master carton, it can create a vacuum effect that makes it hard to remove. Adding die-cut finger holes to the main panel gives end-users a simple way to grip and pull the buffer out.

Glued flanges for permanent rigidity

While most side buffers rely on the outer box to hold their shape, C-channels can be designed with overlapping glue flaps. Gluing the flanges locks the channel into a permanent 3D shape, making insertion easier but increasing shipping volume since they can no longer be delivered flat.

Corner relief cuts for heavy board

When using double-wall board for a C-channel, the thick material can bind at the corners during folding. Adding relief cuts to the die removes excess material, allowing the side flanges to fold cleanly.

Board and packing details

Inside and outside dimension tracking

Because this buffer must fit exactly inside another box while wrapping around a product, the board thickness must be carefully calculated. If the fold allowances do not account for the caliper of the board, the buffer will bow, bind, or fail to slide into the master carton.

L-Shaped Pads vs. C-Shaped Channels

Basic L-Shape Buffer

A flangeless design with only parallel creases. It is efficient for simple corner protection and fast to fold.

Rigid C-Shape Channel

Includes side flanges and corner relief cuts to form a hollow standoff. It provides higher lateral rigidity but requires more assembly effort.

Additional notes

Clearance tolerances for master cartons

Even a few millimeters of excess width can cause the buffer to bow and lose its structural strength. Always provide the exact internal dimensions of the master carton.

Related Dividers and Partitions

0903: Generic L-Pad

A simpler folded sheet without the strict parametric inside/outside scaling used for exact box fitment.

0929: C-Partition

A generic single-axis channel, often used as a basic spacer rather than an engineered, closed-end standoff.

0770: Collapsible Tray

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0912: Interior Form

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Product Fit and Inserts

Does this buffer lock into place on its own?

No. Unless the side flanges are specifically designed to be glued, the buffer relies entirely on the friction and physical boundaries of the outer shipping box to hold its folded shape.

Packing and Assembly

Can these buffers be inserted automatically by machinery?

Standard side buffers are designed for manual packing. Because the corrugated board naturally tries to spring back to its flat state, automated insertion requires specialized robotics capable of holding the folded tension.

Board and Finish

Should we use double-wall board for heavy protection?

Double-wall board increases the crush zone, but it also makes the pad much harder to fold by hand. We suggest testing a physical sample to ensure your packing team can comfortably fold and insert the buffer without excessive fatigue.

Production and Tooling

Does adding finger holes change how the buffer is manufactured?

Yes. A basic L-shaped pad with straight folds can often be produced with minimal tooling. Adding circular finger holes or corner relief cuts for a C-shape requires flatbed or rotary die-cutting.

Shipping Route

Can this buffer replace molded EPS foam?

In many cases, a rigid corrugated C-channel provides enough standoff and shock absorption to replace foam blocks. However, the exact performance depends on the product weight, drop-test requirements, and the board grade selected.

Related Package Choice

When should we use a full perimeter wrap instead of side buffers?

Side buffers are useful for localized protection, like keeping a specific fragile edge away from the box wall. If the entire product needs uniform cushioning on all sides, a full perimeter wrap or a custom die-cut tray is usually more stable.

Product Fit and Inserts

How do we ensure the buffer fits inside our existing shipping boxes?

The exact internal dimensions of your outer shipping box must be known before specifying a side buffer. The design must account for the board thickness so the folded pad slides in without bowing.

Production and Tooling

Does the C-shape variant ship flat or pre-assembled?

By default, all side buffers ship flat to save freight space. If you choose to add glue flaps to the C-shape for faster packing, the converter will assemble them, which increases the shipping volume.
